EXPAND BAND

自膨胀密封胶带

EXPAND BAND自膨胀胶带提供永久弹性膨胀，确保防水、防尘和防风。没有分离层的EVO版本，拥有特殊的薄膜，使它只要它是卷起来的状态就可以维持形状。

EXPAND BAND自膨胀胶带，高性能和高耐久性

Contacts

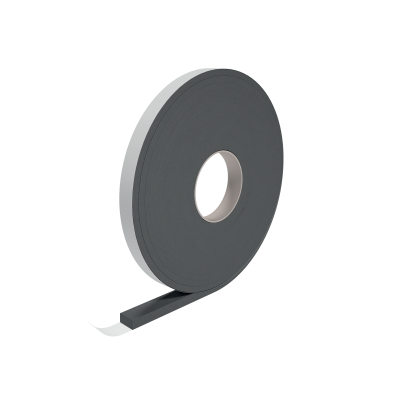

EXPAND BAND自膨胀胶带由经过最严格有害排放测试的改性聚氨酯泡沫组成，确保即使在室内也能安全安装。EVO版本因为没有分离层，而且有一种特殊的薄膜，只要卷起来就可以保持形状而不会自我膨胀，减少了浪费和安装时间。自膨胀胶带配有塑料芯，以防止施工期间吸水和吸湿，而导致不必要的膨胀。

CODE	B [mm]	measures [mm]	L [m]	B [in]	L [ft]	pcs.
EXPAND1014	10	s: 1-4	13	0.4	43	48
EXPAND1514	15	s: 1-4	13	0.6	43	32
EXPAND1549	15	s: 4-9	8	0.6	26	32
EXPAND15615	15	s: 6-15	6	0.6	20	32
EXPAND20920	20	s: 9-20	4	0.8	13	24
EXPAND40615	40	s: 6-15	8	1.6	26	12
EXPAND60615	60	s: 6-15	8	2.4	26	8

CODE	B [mm]	measures [mm]	L [m]	B [in]	L [ft]	pcs.

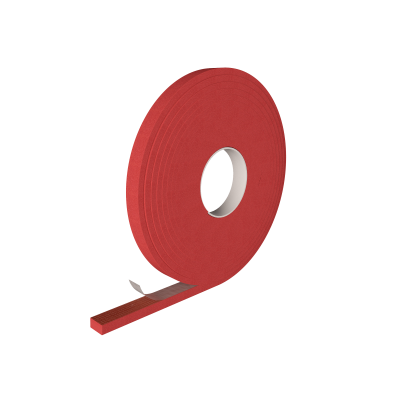

EXPANDEVO1514	15	1-4	13	0.6	43	32

属性	标准	数值经过测试	USC 转换
Classification ^{(1 )}	DIN 18542	BG1	-
Airtightness	DIN 18542	conforme ai requisiti BG1	-
Resistance to penetration of air	EN 12114	≤ 1 m³/(m²·h·50Pa)	≤ 0.055 cfm/ft² at 50Pa
Resistance to heavy rain	EN 1027	≥ 600 Pa	-
Light and humidity resistance	DIN 18542	conforme ai requisiti BG1	-
Compatibility with building materials	DIN 18542	conforme ai requisiti BG1	-
Water vapour transmission (Sd)	DIN 18542	conforme ai requisiti BG1	-
Water vapour transmission (Sd)	EN 1931 / EN ISO 12572	< 0,5 m	< 6.993 US perm
Reaction to fire	DIN 4102-1	class B1	-
Fire resistance rating on CLT joint* ^{(2 )}	en 1366-4	EI120	-
Thermal conductivity (λ)	EN 12667	≤ 0,043 W/(m·K)	≤ 0.02 BTU/(h·ft·°F)
Resistance to temperature	-	-30 / 90 °C	-22 / 194 °F
Application temperature	-	≥ 5 °C	≥ 41 °F
Storage temperature	-	1 / 20 °C	34 / 68 °F

2. For full details and tested configurations, please refer to the manual or contact our technical department.

TOP LAYER	elastic polyurethane foam with additives
GLUE	-
RELEASE LINER	silicone coated paper
