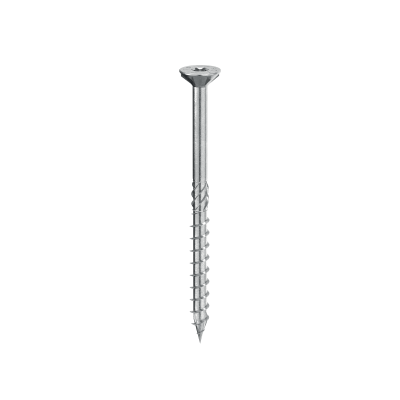

SCI A2 | AISI304

数人螺丝钉

CODE	info	d₁ [mm]	L [mm]	b [mm]	d₁ [in]	L [in]	b [in]	TX	pcs.	DOP
SCI3525	-	3.5	25	18	0.14	1''	11/16''	TX15	500	-
SCI3530	-	3.5	30	18	0.14	1 3/16''	11/16''	TX15	500	-
SCI3535	-	3.5	35	18	0.14	1 3/8''	11/16''	TX15	500	-
SCI3540	-	3.5	40	18	0.14	1 9/16''	11/16''	TX15	500	-
SCI4030	-	4	30	18	0.16	1 3/16''	11/16''	TX20	500
SCI4035	-	4	35	18	0.16	1 3/8''	11/16''	TX20	500
SCI4040	-	4	40	24	0.16	1 9/16''	15/16''	TX20	500
SCI4045	-	4	45	30	0.16	1 3/4''	1 3/16''	TX20	400
SCI4050	-	4	50	30	0.16	1 15/16''	1 3/16''	TX20	400
SCI4060	-	4	60	35	0.16	2 3/8''	1 3/8''	TX20	200
SCI4535	-	4.5	35	24	0.18	1 3/8''	15/16''	TX20	400
SCI4540	-	4.5	40	24	0.18	1 9/16''	15/16''	TX20	400
SCI4545	-	4.5	45	30	0.18	1 3/4''	1 3/16''	TX20	400
SCI4550	-	4.5	50	30	0.18	1 15/16''	1 3/16''	TX20	200
SCI4560	-	4.5	60	35	0.18	2 3/8''	1 3/8''	TX20	200
SCI4570	-	4.5	70	40	0.18	2 3/4''	1 9/16''	TX20	200
SCI4580	-	4.5	80	40	0.18	3 1/8''	1 9/16''	TX20	200
SCI5040	-	5	40	20	0.2	1 9/16''	13/16''	TX25	200
SCI5045	-	5	45	24	0.2	1 3/4''	15/16''	TX25	200
SCI5050	-	5	50	24	0.2	1 15/16''	15/16''	TX25	200
SCI5060	-	5	60	30	0.2	2 3/8''	1 3/16''	TX25	200
SCI5070	-	5	70	35	0.2	2 3/4''	1 3/8''	TX25	100
SCI5080	-	5	80	40	0.2	3 1/8''	1 9/16''	TX25	100
SCI5090	-	5	90	45	0.2	3 1/2''	1 3/4''	TX25	100
SCI50100	-	5	100	50	0.2	4''	1 15/16''	TX25	100
SCI6060	-	6	60	30	0.24	2 3/8''	1 3/16''	TX30	100
SCI6080	-	6	80	40	0.24	3 1/8''	1 9/16''	TX30	100
SCI60100	-	6	100	50	0.24	4''	1 15/16''	TX30	100
SCI60120	-	6	120	60	0.24	4 3/4''	2 3/8''	TX30	100
SCI60140	-	6	140	75	0.24	5 1/2''	2 15/16''	TX30	100
SCI60160	-	6	160	75	0.24	6 1/4''	2 15/16''	TX30	100
SCI80120	-	8	120	60	0.32	4 3/4''	2 3/8''	TX40	100
SCI80160	-	8	160	80	0.32	6 1/4''	3 1/8''	TX40	100
SCI80200	-	8	200	80	0.32	8''	3 1/8''	TX40	100
SCI80240	-	8	240	80	0.32	9 1/2''	3 1/8''	TX40	100
SCI80280	-	8	280	80	0.32	11''	3 1/8''	TX40	100

CODE	info	d₁ [mm]	L [mm]	b [mm]	d₁ [in]	L [in]	b [in]	TX	pcs.
SCICOIL4025	-	4	25	18	0.16	1''	11/16''	TX20	3006
SCICOIL5050	-	5	50	24	0.2	1 15/16''	15/16''	TX25	1250
SCICOIL5060	-	5	60	30	0.2	2 3/8''	1 3/16''	TX25	1250
SCICOIL5070	-	5	70	35	0.2	2 3/4''	1 3/8''	TX25	625
