ZVB - 支柱挂勾
ZVB

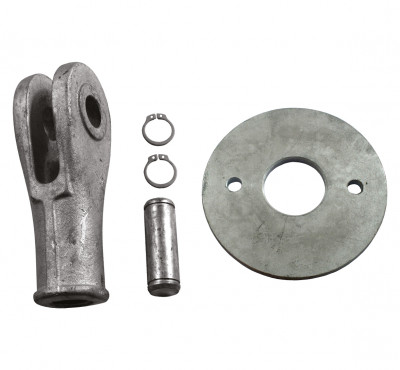

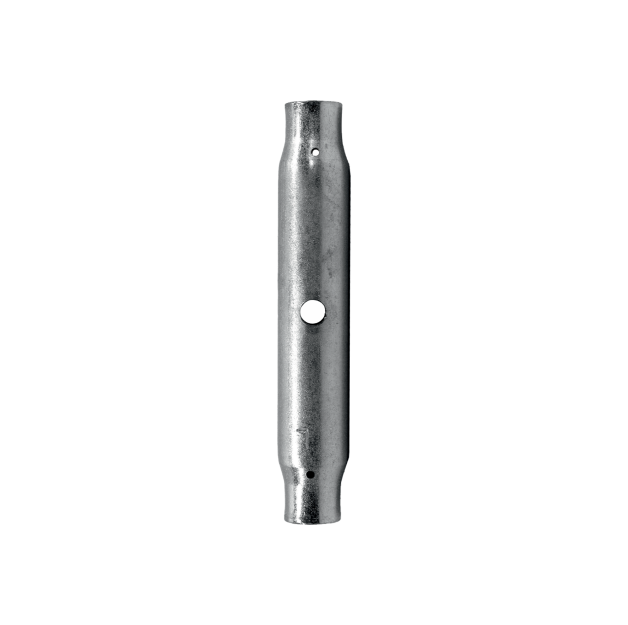

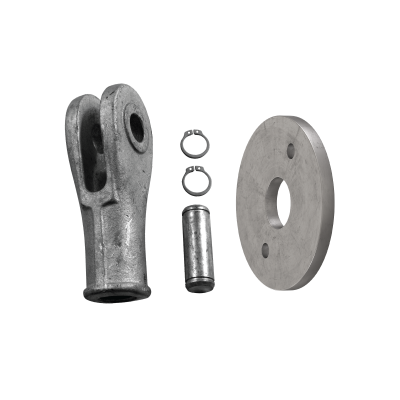

"钩、支撑盘和张紧器，用于支撑系统施工 不提供支撑杆。"
文件
| 技术数据表 | |
|---|---|
| ETA Certificate | |
| Item specification | |
| File CAD |

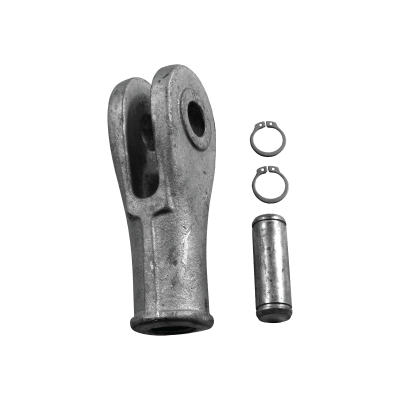

HOOK FOR BRACINGS
| CODE | Ø
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| ZVBDX10 | M10 | 8 | 1 |
| ZVBSX10 | M10 | 8 | 1 |
| ZVBDX12 | M12 | 10 | 1 |
| ZVBSX12 | M12 | 10 | 1 |
| ZVBDX16 | M16 | 15 | 1 |
| ZVBSX16 | M16 | 15 | 1 |
| ZVBDX20 | M20 | 18 | 1 |
| ZVBSX20 | M20 | 18 | 1 |
| ZVBDX24 | M24 | 20 | 1 |
| ZVBSX24 | M24 | 20 | 1 |
| ZVBDX30 | M30 | 25 | 1 |
| ZVBSX30 | M30 | 25 | 1 |

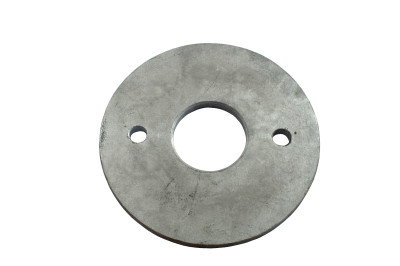

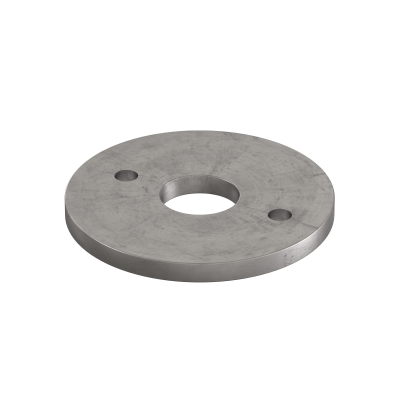

DISK FOR BRACINGS
| CODE | Ø
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| ZVBDISC10 | M10 | 8 | 1 |
| ZVBDISC12 | M12 | 10 | 1 |
| ZVBDISC16 | M16 | 15 | 1 |
| ZVBDISC20 | M20 | 18 | 1 |
| ZVBDISC24 | M24 | 20 | 1 |
| ZVBDISC30 | M30 | 25 | 1 |
