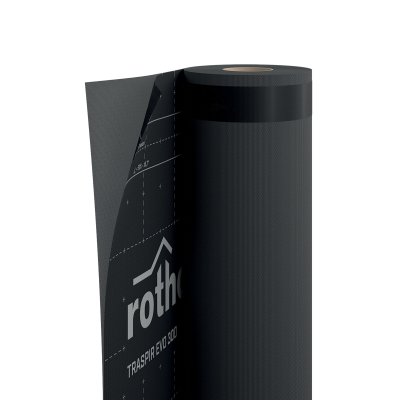

TRASPIR EVO 300
高透汽单片防水透汽膜
描述

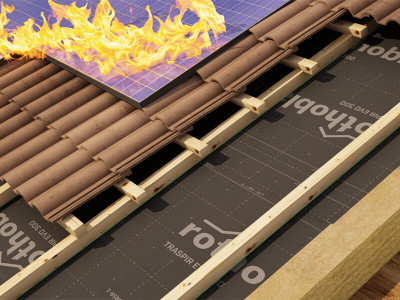

TRASPIR EVO 300单片膜：高温下无与伦比的稳定性 单片结构TRASPIR EVO 300的防水透汽膜确保了B-s1、d0级的耐火性，它表明产品在火灾中不传播火焰的能力。在表板接缝处开口50毫米宽以内部分暴露，或总表面积的40%以内部分暴露的前提下，产品保证具有永久的紫外稳定性；同时，TRASPIR EVO 300的特殊成分确保了即使在施工期间也具有优异的抗紫外线性能。功能性聚丙烯酸酯膜提供高达+120°C的耐热性、 使其甚至在光伏和太阳能热板下也成为理想应用。
文件
-
技术数据表
-
符合性声明（DOC）
-
Xml-File WUFI
-
施工步骤
-
Environmental Product Declaration (EPD)
-
TEST REPORT USA-CA
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 300 g/m² | 0.98 oz/ft² |
| Thickness | EN 1849-2 | 0,5 mm | 20 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,04 m | 87.413 US perm |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 41.7 US perm | - |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 2380 ng/(s·m²·Pa) | - |
| Tensile strength MD/CD | EN 12311-1 | 380 / 250 N/50mm | 43 / 29 lbf/in |
| Elongation MD/CD | EN 12311-1 | 25 / 25 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 160 / 190 N | 36 / 43 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Resistance to temperature | - | -40 / 120 °C | -40 / 248 °F |
| Reaction to fire | EN 13501-1 | class B-s1,d0 | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 0.17 BTU/(h·ft·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 600 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 80 | - |
| Joint strength | EN 12317-2 | > 280 / N/50mm | > 31.976824 / lb/in |
| UV resistance without final coating (1 ) | EN 13859-2 | 10.000h (>12 mesi) | - |
| UV stability with joints up to 50 mm wide exposing no more than 40% of the surface (1 ) | EN 13859-2 | permanent | - |
| Water column | ISO 811 | > 500 cm | > 197 in |
| Watertightness after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - Tensile strength MD/CD | EN 1297 / EN 12311-1 | 370 / 240 N/50mm | 42 / 27 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 23 / 23 % | - |
| Flexibility at low temperatures | EN 1109 | -40 °C | -40 °F |
| VOC | - | not relevant | - |
1. The membrane is not intended as a final waterproof layer for roofs.
成分
| TOP LAYER | breathable monolithic acrylate film |
|---|---|
| middle layer | PL fabric |
