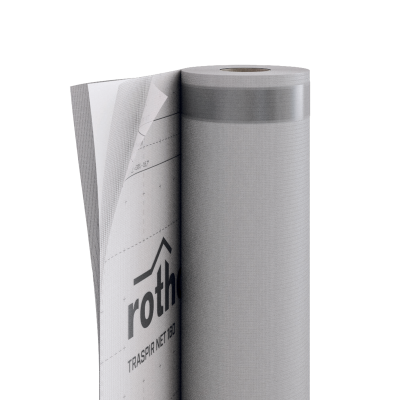

TRASPIR NET 160

高度透汽膜

TRASPIR NET 160是一种用于屋面的高度透汽微孔膜。由于其特殊的组成和加强网格，它不会受到行走引起的机械应力或磨损的影响。

TRASPIR NET 160，高度透汽膜，强度大

TRASPIR NET 160膜由三层组成：无纺布表面织物、透汽微孔聚丙烯膜和提供巨大强度的加强网格。它是一种防水解决方案，可确保良好的热稳定性。TRASPIR NET 160是环境保护署和生命周期评价环境声明所针对的产品之一。

CODE	description	tape	H [m]	L [m]	A [m²]	H [ft]	L [ft]	A [sft]	pcs./pallet	DOP
T160	TRASPIR NET 160	-	1.5	50	75	4' 11''	164	807	25
TTT160	TRASPIR NET 160 TT	TT	1.5	50	75	4' 11''	164	807	25

属性	标准	数值经过测试	USC 转换
Mass per unit area	EN 1849-2	160 g/m²	0.52 oz/ft²
Thickness	EN 1849-2	0,7 mm	28 mil
Water vapour transmission (Sd)	EN 1931	0,02 m	174.825 US perm
Tensile strength MD/CD	EN 12311-1	420 / 420 N/50mm	48 / 48 lbf/in
Elongation MD/CD	EN 12311-1	25 / 20 %	-
Resistance to nail tearing MD/CD	EN 12310-1	390 / 360 N	88 / 81 lbf
Watertightness	EN 1928	class W1	-
Resistance to temperature	-	-40 / 80 °C	-40 / 176 °F
Reaction to fire	EN 13501-1	class E	-
Resistance to penetration of air	EN 12114	< 0,02 m³/(m²·h·50Pa)	< 0.001 cfm/ft² at 50Pa
Thermal conductivity (λ)	-	0,04 W/(m·K)	0.02 BTU/(h·ft·°F)
Specific heat	-	1568 J/(kg·K)	-
Density	-	ca. 230 kg/m³	-
Water vapour resistance factor (μ)	-	ca. 29	-
Water column	ISO 811	> 500 cm	> 197 in
Watertightness after artificial ageing	EN 1297 / EN 1928	class W1	-
After artificial ageing - Tensile strength MD/CD	EN 1297 / EN 12311-1	385 / 390 N/50mm	44 / 45 lb/in
After artificial ageing - elongation	EN 1297 / EN 12311-1	20 / 15 %	-
Resistance to water penetration at 300Pa on wall	ASTM E331	-	-
VOC	-	not relevant	-
Flammability index ^{(1 )}	AS 1530.2	< 5	-
Duty classification	AS/NZS 4200.1	medium	-
Tensile strength MD/CD	AS 1301.448s	9,5 / 8 kN/m	-
Water vapour permeability	AS/NZS 4200.1	1,471 μg/N s	-
Burst strength	AS 2001.2.19/AS/NZS 4200.1	566 N	-
Edge tearing resistance MD/CD	AS/NZS 4200.0	496 / 434 N	-
