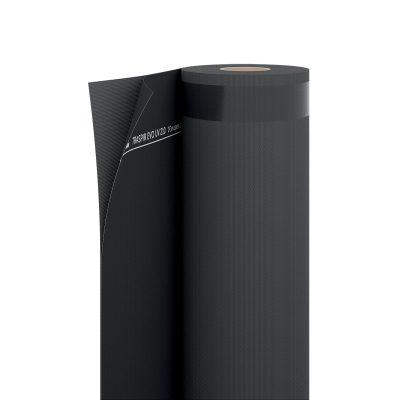

TRASPIR EVO UV 210
高透汽单片抗紫外线防水透汽膜
描述
TRASPIR EVO UV 210：防水、优异的紫外线稳定性和耐火性能
由于丙烯酸涂层的表面，膜的单片结构确保了出色的耐用性。基于EN 13501-1的防火认证达到B-s1，d0级。TRASPIR EVO UV 210在暴露宽度高达50 mm，最大暴露面积为40%时，可确保永久的紫外线稳定性。
外表美观：由于单位面积的质量和聚丙烯酸酯混合物，这种膜保证高热稳定性和尺寸稳定性，防止在安装过程中形成鼓泡。一体式双层胶带，确保完美密封；最终的外观与FRONT BAND UV 210一起呈现，胶带与膜有相同的支撑层，一起创造出完整的表面。
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 210 g/m² | 0.69 oz/ft² |
| Thickness | EN 1849-2 | 0,3 mm | 12 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,04 m | 87.413 US perm |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 41.7 US perm | - |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 2380 ng/(s·m²·Pa) | - |
| Tensile strength MD/CD | EN 12311-1 | 300 / 200 N/50mm | 34 / 23 lbf/in |
| Elongation MD/CD | EN 12311-1 | 25 / 25 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 120 / 120 N | 27 / 27 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Resistance to temperature | - | -40 / 120 °C | -40 / 248 °F |
| Reaction to fire | EN 13501-1 | class B-s1,d0 | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 0.17 BTU/(h·ft·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 700 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 130 | - |
| UV resistance without final coating | EN 13859-2 | 10.000h (>12 mesi) | - |
| UV stability with joints up to 50 mm wide exposing no more than 40% of the surface | EN 13859-2 | permanent | - |
| After artificial ageing - Tensile strength MD/CD | EN 1297 / EN 12311-1 | 290 / 190 N/50mm | 33 / 22 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 20 / 20 % | - |
| Flexibility at low temperatures | EN 1109 | -40 °C | -40 °F |
| VOC | - | not relevant | - |
| Watertightness at 150°C after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| Surface burning characteristics | ASTM E84 | class 1 or class A | - |
| Flame spread index (FSI) | ASTM E84 | 5 | - |
| Flammability index (1 ) | AS 1530.2 | < 5 | - |
| Smoke developed index (SDI) | ASTM E84 | 300 | - |
1.
成分
| TOP LAYER | breathable monolithic film |
|---|---|
| REINFORCING LAYER | PL fabric |
