New

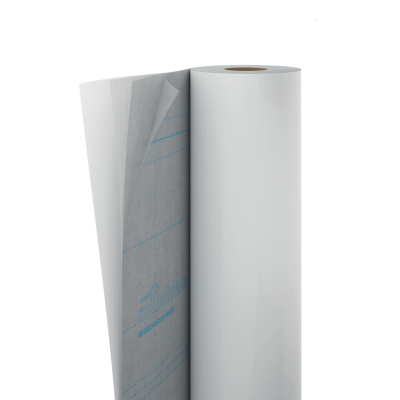

DEFENCE ADHESIVE TRASPIR EVO
单片透汽自粘膜
单片、均质和连续的功能层保证了最大程度的防水和高透气性。这种特殊的 化合物保证了对大气因素的显着抵抗力和出色的耐久性。
得益于专利的粘合剂，即使完全粘合，该膜仍可保持完美的透气性，并保持 任何潮湿元件的干燥。
产品结构透明，易于安装，可以看到下方结构。
文件
-
技术数据表
-
File BIM.rfa
-
施工步骤
DEFENCE ADHESIVE TRASPIR EVO
| CODE | description | liner | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| DEFATRASP | DEFENCE ADHESIVE TRASPIR EVO 1.55m | 150/1400 | 1.55 | 50 | 77.5 | 5' 1'' | 164 | 834 | 25 | |
| DEFATRASP385 | DEFENCE ADHESIVE TRASPIR EVO STRIPE | 192.5/192.5 | 0.385 | 50 | 19.25 | - | 164 | 207 | 48 | |
| DEFATRASP490 | DEFENCE ADHESIVE TRASPIR EVO 50cm | 245/245 | 0.49 | 50 | 24.5 | 1' 7 1/4'' | 164 | 264 | 24 | |
| DEFATRASP990 | DEFENCE ADHESIVE TRASPIR EVO 1m | 495/495 | 0.99 | 50 | 49.5 | 3' 3'' | 164 | 533 | 24 |
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 175 g/m² | 0.57 oz/ft² |
| Thickness | EN 1849-2 | 0,35 mm | 14 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,19 m | 18.403 US perm |
| Tensile strength MD/CD | EN 12311-1 | 120 / 75 N/50mm | 14 / 9 lbf/in |
| Elongation MD/CD | EN 12311-1 | 65 / 75 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 50 / 70 N | 11 / 16 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Resistance to temperature | - | -40 / 100 °C | -40 / 212 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 0.17 BTU/(h·ft·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 580 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 630 | - |
| Exposure to weather | - | 14 weeks | - |
| Watertightness after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| Watertightness at 100°C after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - Tensile strength MD/CD | EN 1297 / EN 12311-1 | > 60 / 40 N/50mm | > 7 / 5 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | > 30 / 40 % | - |
| Solvents | - | no | - |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 4,5 N/10mm | 2.6 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 2 N/10mm | 1.1 lbf/in |
| Shear adhesion strength of the overlap after 24 hours | EN 12317-2 | 150 N/50mm | 17.1 lbf/in |
| Adhesion strength (average) of the overlap after 24 hours | EN 12316-2 | 16 N/50mm | 1.8 lbf/in |
| Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
| Application temperature | - | -5 / 35 °C | 23 / 95 °F |
成分
| TOP LAYER | breathable monolithic PU film |
|---|---|
| BOTTOM LAYER | non-woven PP fabric |
| GLUE | solvent-free UV-crosslinked acrylic |
| RELEASE LINER | - |
