室内用单面胶带

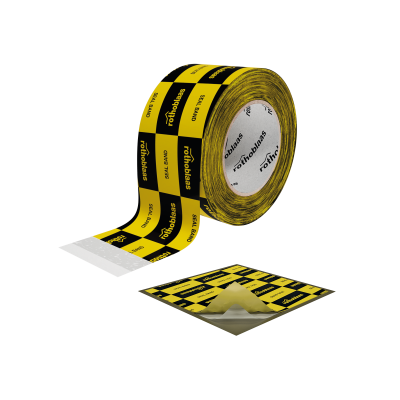

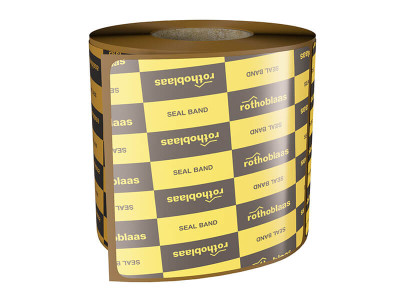

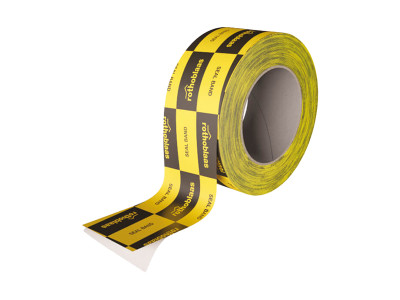

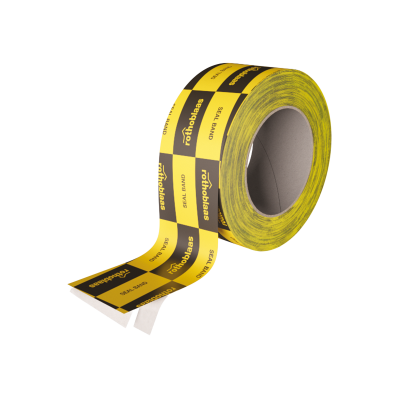

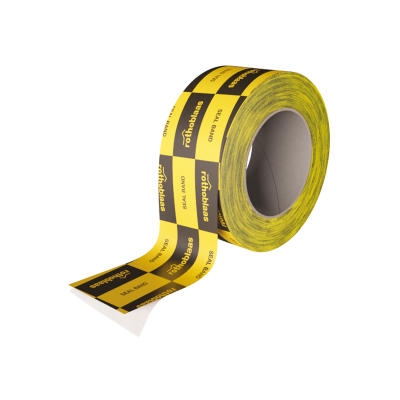

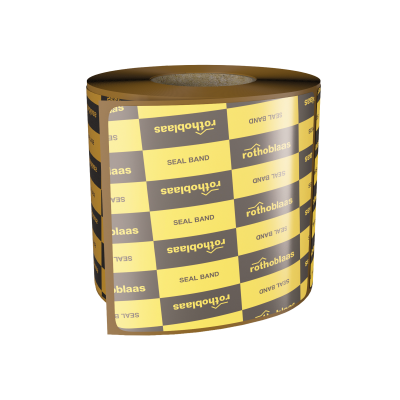

SEAL BAND | SEAL SQUARE

SEAL BAND是一种丙烯酸胶带,可有效地粘附在所有类型的木材上,用于建筑围护结构内的所有类型的密封。它也有预切密封方形SEAL SQUARE版本,是在高精度要求下的理想选择。

视频

SEAL BAND,简化了复杂的密封任务的室内胶带

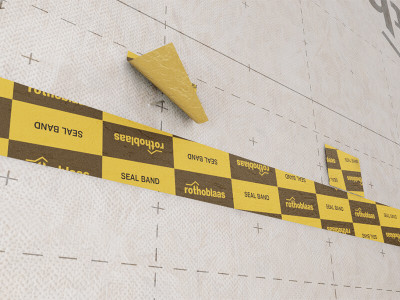

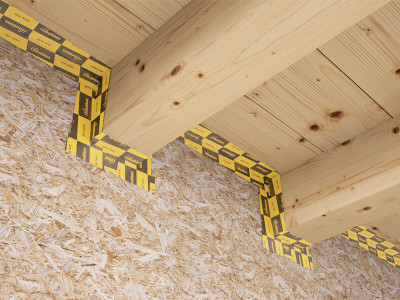

预成型的载体可以有效和灵活地密封凹角或凸角和边缘。室内使用的SEAL BAND和SEAL SQUARE配有预切衬垫,安装方便快捷。加固纸基支撑,是室内使用的理想选择;长期保证气密性。SEAL BAND是Rothoblaas公司产品中作为被动房研究所气密认证所测试的构件之一。

文件

技术数据表
证书 被动房
Item specification

SEAL BAND

CODE liner B
[mm]
L
[m]
liner
[in]
B
[in]
L
[ft]
pcs.
SEAL60 60 60 25 2.4 2.4 82 10
SEAL3030 30 / 30 60 25 1.2 / 1.2 2.4 82 10
SEAL1248 12 / 48 60 25 0.5 / 1.9 2.4 82 10

SEAL SQUARE

CODE B
[mm]
H
[mm]
L
[m]
B
[in]
H
[in]
L
[ft]
pcs.
SEAL180 180 180 36 7.1 7.1 118 1

Technical Data SEAL BAND
national-classifications DE DIN 4108-11

属性 标准 数值经过测试 USC 转换
Thickness - 0,33 mm 13 mil
Adhesion EN 1939 ≥ 35 N/25mm ≥ 7.99 lbf/in
Water vapour transmission (Sd) EN ISO 12572 6 m 0.583 US perm
VOC emissions EN 16516 < 5 μg/m³ -
French VOC classification ISO 16000 A+ -
Emicode procedura di prova GEV EC1 plus -
Thermal resistance - -40 / 100 °C -40 / 212 °F
Application temperature - -10 / 40 °C 14 / 104 °F
Storage temperature (1) - 15 / 25 °C 59 / 77 °F
1. Store the product in a dry, covered location.

Technical Data SEAL SQUARE
national-classifications DE DIN 4108-11

属性 标准 数值经过测试 USC 转换
Thickness - 0,33 mm 13 mil
Adhesion EN 1939 ≥ 35 N/25mm ≥ 7.99 lbf/in
Water vapour transmission (Sd) EN ISO 12572 6 m 0.583 US perm
VOC emissions EN 16516 < 5 μg/m³ -
French VOC classification ISO 16000 A+ -
Emicode procedura di prova GEV EC1 plus -
Thermal resistance - -40 / 100 °C -40 / 212 °F
Application temperature - -10 / 40 °C 14 / 104 °F
Storage temperature (1) - 15 / 25 °C 59 / 77 °F
1. Store the product in a dry, covered location.

Composition SEAL BAND

SUPPORT paper reinforced with protective film
release liner silicone coated paper
GLUE acrylic dispersion without solvents

Composition SEAL SQUARE

SUPPORT paper reinforced with protective film
GLUE acrylic dispersion without solvents
release liner silicone coated paper
