技术数据表

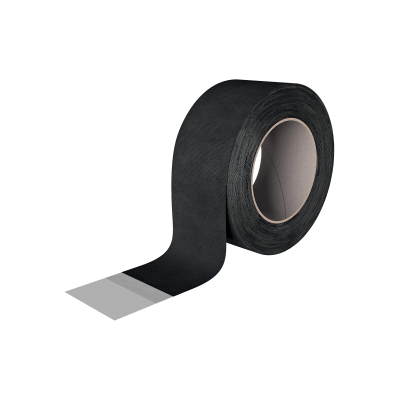

MULTI BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| MULTI60 | 60 | 25 | 2.4 | 82 | 10 |
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Thickness | - | 0,6 mm | 24 mil |
| Tensile strength | ISO 29864 | 44 N/10mm | 25.124657 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 5 N/10mm | 2.9 lbf/in |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 9 N/10mm | 5.1 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 15 N/50mm | 1.7 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1 ) | EN 12317-2 | 150 N/50mm | 17.1 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | < 1 m | < 3.497 US perm |
| Application temperature (2 ) | - | > -10 °C | > 14 °F |
| Resistance to temperature | - | -40 / 100 °C | -40 / 212 °F |
| Storage temperature (3 ) | - | 5 / 25 °C | 41 / 77 °F |
| Solvents | - | no | - |
1. Minimum required value according to DTU 31.2 P1-2 (France): 40 N/50 mm.
2.
3. Store the product in a dry and covered location, in its original unopened container.
成分
| SUPPORT | breathable 2-layer PP membrane |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
