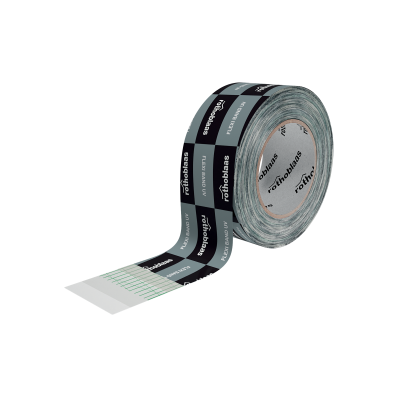

FLEXI BAND UV
具有很高的UV稳定性和耐热性的通用单面胶带
描述
通用胶带FLEXI BAND UV：为您的密封提供UV稳定性和耐热性
FLEXI BAND UV通用胶带的特殊载体设计，用于提供出色的紫外线稳定性，同时由于优异的耐老化性，随着时间的推移能保持机械强度和粘合性能。载体由特殊的共聚物混合物制成，确保在不降低机械强度的情况下，为最复杂的节点提供高弹性和变形能力。FLEXI BAND UV通用胶带在高温下非常稳定，因此胶水不会在胶带边缘延伸，避免在运输和安装过程中产生问题。
文件
-
技术数据表
-
File BIM.rfa
FLEXI BAND UV
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| FLEXIUV60 | 60 | 25 | 2.4 | 82 | 10 |
| FLEXIUV100 | 100 | 25 | 3.9 | 82 | 6 |
| FLEXIUV7575 | 150 | 25 | 5.9 | 82 | 4 |
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Thickness | - | 0,33 mm | 13 mil |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 20 m | 0.175 US perm |
| Solvents | - | no | - |
| Resistance to temperature | - | -40 / 120 °C | -40 / 248 °F |
| Application temperature | - | ≥ -10 °C | ≥ 14 °F |
| Storage temperature | - | 5 / 25 °C | 41 / 77 °F |
| Tensile strength | ISO 29864 | 20 N/10mm | 11.420298 lbf/in |
| Adhesion strength on steel at 180° | EN ISO 29862 | ≥ 35 N/25mm | ≥ 7.99 lbf/in |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 11 N/10mm | 6.3 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 5 N/10mm | 2.9 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 28 N/50mm | 3.2 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1 ) | EN 12317-2 | 70 N/50mm | 8 lbf/in |
| French VOC classification | ISO 16000 | A+ | - |
| Exposure to weather | - | 24 month | - |
1. Minimum required value according to DTU 31.2 P1-2 (France): 40 N/50 mm.
成分
| SUPPORT | PP film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| REINFORCING LAYER | polyester reinforcing grid |
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
