ALU BAND
室内用单面反射胶带
描述

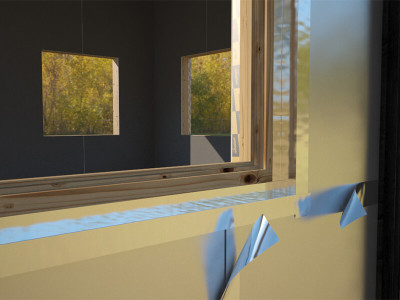

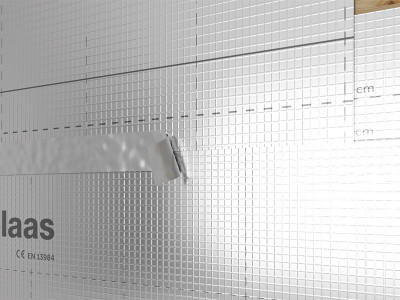

ALU BAND反射胶带：结合BARRIER ALU产品，实现热工水力结构的最佳密封

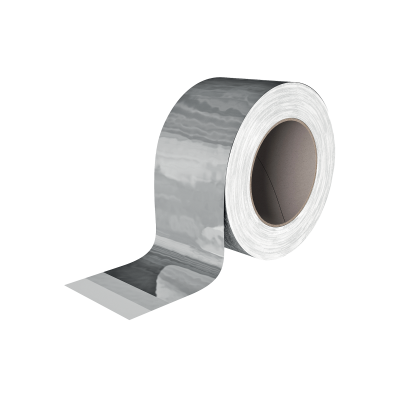

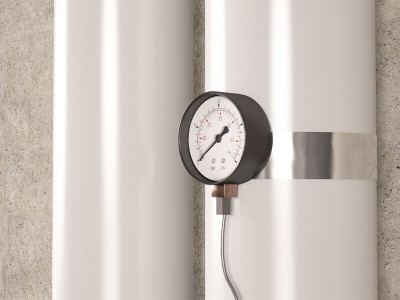

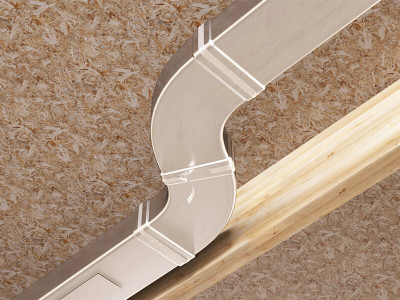

ALU BAND镀铝胶带配有铝载体，具有很高的蒸汽保护和水密性；它是结合BARRIER ALU产品和在工厂工程中应用的理想选择。
文件
-
技术数据表
ALU BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| ALUBAND50 | 50 | 50 | 2 | 164 | 24 |
| ALUBAND75 | 75 | 50 | 3 | 164 | 18 |
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Thickness | EN 1942 | 0,06 mm | 2 mil |
| Tensile strength | EN 14410 | > 25 N/25mm | > 5.71 lbf/in |
| Expansion capacity at | EN 14410 | > 5 % | - |
| Adhesion strength on steel | (N/10mm EN 1939) | > 8 N/10mm | > 4.57 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | ca. 100 m | ca. 0.035 US perm |
| Watertightness | - | compliant | - |
| Reaction to fire | DIN 4102-1 | class B1 | - |
| Solvents | - | no | - |
| Resistance to temperature | - | 40 / 130 °C | 104 / 266 °F |
| Application temperature | - | ≥ -10 °C | ≥ 14 °F |
| Storage temperature | - | 5 / 35 °C | 41 / 95 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| French VOC classification | ISO 16000 | A+ | - |
成分
| SUPPORT | aluminium film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
