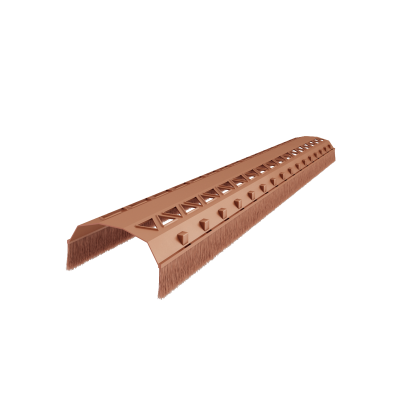

BRUSH VENT
文件
| 技术数据表 |
|---|
BRUSH VENT
| CODE | B
[mm]
|
H
[mm]
|
L
[m]
|
B
[in]
|
H
[in]
|
L
[ft]
|
material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|---|---|
| BRUVENRED175 | 175 | 75 | 1 | 6.9 | 3 | 3 | PVC | BRICK RED | 8004 | 20 |
| BRUVENBRO175 | 175 | 75 | 1 | 6.9 | 3 | 3 | PVC | BROWN | 8019 | 20 |
| BRUVENBLA175 | 175 | 75 | 1 | 6.9 | 3 | 3 | PVC | BLACK | 9005 | 20 |
Technical Data
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Air passage | - | ≥ 200 cm²/m | - |
| Thermal resistance | - | -20 / 80 °C | -4 / 176 °F |
| UV resistance | - | permanent | - |
| Screen length | - | 60 mm | 2.4 in |
