支架上安装的水平用途的轨道系统
H-RAIL + TOWER | TOWER A2 | TOWER XL
可以与 TOWER、TOWER A2 和 TOWER XL 支架组合使用。

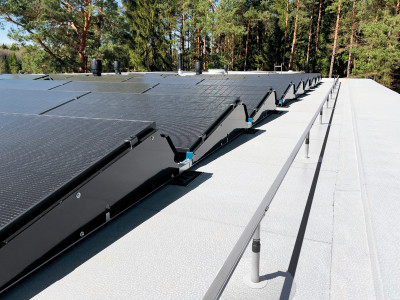

与 TOWER, TOWER A2, TOWER XL立柱的组合,提供了升高轨道以越过屋顶 障碍物的可能性。

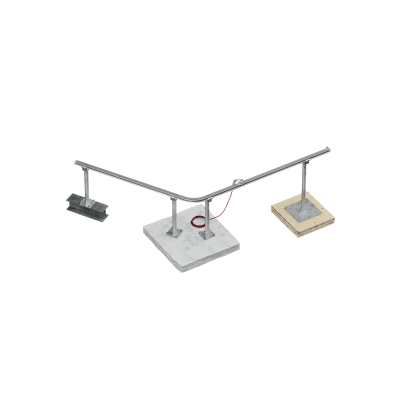

只需通过专用板即可将轨道安装在 TOWER, TOWER A2, TOWER XL立柱上。
文件
技术数据表 | |
---|---|
符合性声明(DOC) | |
安全规程、安装和使用说明 | |
符合性声明(DOC) |
操作规程
操作手册 |
---|
RAIL
CODE | description | pcs. |
---|---|---|
RAIL3000 | 3m aluminium rail | 1 |
RAILC90 | 90° aluminium bend for rail | 1 |
RAILC120 | 120° aluminium bend for rail | 1 |
RAILC135 | 135° aluminium bend for rail | 1 |
RAILC150 | 150° aluminium bend for rail | 1 |
SUPPORT
CODE | description | pcs. |
---|---|---|
RAILBRAT | support element for rail | 1 |
RAILBRAT16 | M16 plate for RAILBRAT | 1 |
TERMINAL ELEMENT
CODE | description | pcs. |
---|---|---|
RAILEND | rail end-stop without exit | 1 |
RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
CODE | description | pcs. |
---|---|---|
RAILJUN | junction for rails and bends | 1 |
SLIDING DEVICE
CODE | description | pcs. |
---|---|---|
RAILSLIDE | sliding device | 1 |
RAILSLIDEWALL | slide for wall application | 1 |
TOOL
CODE | description | pcs. |
---|---|---|
RAILJUNTOOL | template for rail junction holes | 1 |
RAILPLATE | Rail system ID plate | 1 |
FASTENING
CODE | description | pcs. |
---|---|---|
RAILOCKSCREW | Lock screw | 500 |
RAILSCREW | DIN 7991 A2-70 | 50 |
