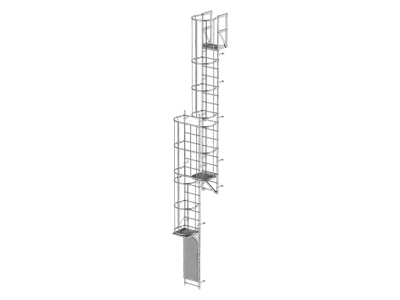

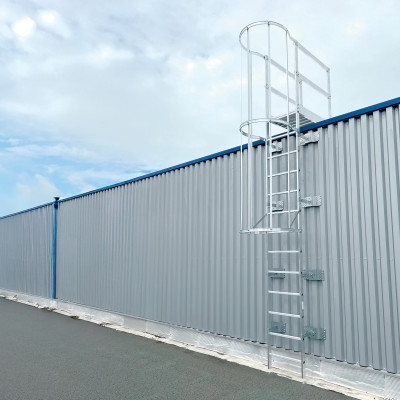

带护笼爬梯
STEP UP
New
爬梯采用铝合金制成，具有出色的机械强度，能抵抗腐蚀和气候因素。
为使用者提供最高的安全保障，为安装人员提供可靠且易于安装的产品带来的安心。
得益于丰富的组件种类，模块化系统能够满足各种设计需求。
文件
技术数据表
|
|---|
MODULI SCALA
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| STEPMOD120 | New | ladder module 1,20 m - 4 steps | 65 | 636 | 1200 | 1 |
| STEPMOD150 | New | ladder module 1,50 m - 5 steps | 65 | 636 | 1500 | 1 |
| STEPMOD180 | New | ladder module 1,80 m - 6 steps | 65 | 636 | 1800 | 1 |
| STEPMOD210 | New | ladder module 2,10 m - 7 steps | 65 | 636 | 2100 | 1 |
| STEPMOD240 | New | ladder module 2,40 m - 8 steps | 65 | 636 | 2400 | 1 |
| STEPMODCAP | New | pair of upper upright caps | - | - | - | 1 |
| STEPMODJUN | New | pair of ladder-to-ladder joints | 21 | 62 | 240 | 1 |
USCITE FRONTALI
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| STEPOUT160 | New | module with front exit rail 1,6 m - 2 steps | 65 | 636 | 1595 | 1 |
| STEPOUT190 | New | module with front exit rail 1,9 m - 3 steps | 65 | 636 | 1895 | 1 |
| STEPOUT220 | New | module with front exit rail 2,2 m - 4 steps | 65 | 636 | 2195 | 1 |
| STEPOUT250 | New | module with front exit rail 2,5 m - 5 steps | 65 | 636 | 2495 | 1 |
| STEPOUTJUN | New | pair of ladder joints-front exit rail | 21 | 62 | 240 | 1 |
GABBIA
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| STEPBAR180 | New | kit of 5 cage bars 1,8 m | 26.5 | 15 | 1800 | 1 |
| STEPBAR220 | New | kit of 5 cage bars 2,2 m | 26.5 | 15 | 2200 | 1 |
| STEPBAR250 | New | kit of 5 cage bars 2,5 m | 26.5 | 15 | 2500 | 1 |
| STEPBARJUN | New | kit with 5 rod joints for cage | 18 | 22 | 80 | 1 |
ANELLI
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| STEPRINGIT | New | cage ring Leg. Decree 81/2008 - UNI 11962:2024 | 660 | 636 | 44 | 1 |
| STEPRINGEU | New | cage ring EN 14122 | 760 | 636 | 44 | 1 |
| STEPRINGJUN | New | pair of ladder-to-ring joints for cage | 36 | 61 | 36 | 1 |
| STEPSUPRING | New | pair of reinforcements between steps and safety cage | 340 | 51 | 340 | 1 |
STAFFE
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| STEPBRAF150 | New | pair of mounting brackets for a 150 mm wall distance | 269 | 88 | 50 | 1 |
| STEPBRAV400 | New | pair of mounting brackets for an adjustable wall distance - max. 400 mm | 474 | 88 | 55 | 1 |
| STEPBRAV600 | New | pair of mounting brackets for an adjustable wall distance - max. 600 mm | 674 | 88 | 55 | 1 |
| STEPBRAMET | New | pair of mounting plates for trapezoidal metal (fasteners included) | 150 | 358 | 32 | 1 |
TAPPI
| CODE | description | pcs. | |
|---|---|---|---|
| STEPMODCAP | New | pair of upper upright caps | 1 |
| STEPBARCAP | New | kit with 5 rod caps | 1 |
PEDANA PER SDOPPIAMENTO
| CODE | description | pcs. | |
|---|---|---|---|
| STEPBOARIT | New | splitting platform Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPBOAREU | New | splitting platform EN 14122 | 1 |
| STEPDOURIT | New | splitting rod Leg. Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPDOUREU | New | splitting rod EN 14122 | 1 |
TARGHETTA
| CODE | description | pcs. | |
|---|---|---|---|
| STEPTARGAEU | New | label EN 14122-4 + EN manual | 1 |
| STEPTARGAIT | New | label Leg. Decree 81/2008 - UNI 11962:2024 + IT manual | 1 |
ACCESSO SCALA
| CODE | description | pcs. | |
|---|---|---|---|
| STEPTRAPEU | New | safety gate for ladder access EN 14122 | 1 |
| STEPTRAPIT | New | safety gate for ladder access Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPDOOR90 | New | half-height safety door complete with fasteners and door stop | 1 |
| STEPDOOR180 | New | safety door | 1 |
| STEPDOORUP | New | upper part of safety door | 1 |
CHIUSURA
| CODE | description | pcs. | |
|---|---|---|---|
| STEPCOVEREU | New | metal sheet to cover the safety cage EN 14122 | 1 |
| STEPCOVERIT | New | metal sheet to cover the safety cage Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPCOVERSIDE | New | pair of side cage covers | 1 |
KIT PROTEZIONE
| CODE | description | pcs. | |
|---|---|---|---|
| STEPLAND300 | New | 300 mm platform kit with side protection | 1 |
| STEPLAND500 | New | 500 mm platform kit with side protection | 1 |
| STEPLAND800 | New | 800 mm platform kit with side protection | 1 |
| STEPLAND1000 | New | 1000 mm platform kit with side protection | 1 |
ACCESSORI E BASI
| CODE | description | pcs. | |
|---|---|---|---|
| STEPDOORDIST | New | - | 1 |
| STEPFEETREG | New | pair of adjustable support feet with holes for possible ground fastening | 1 |
| STEPFEETHING | New | pair of hinged feet with adjustable supports | 1 |
CANCELLETTI
| CODE | description | pcs. | |
|---|---|---|---|
| STEPGATE550 | New | landing gate H=550 mm (fasteners included) | 1 |
| STEPGATEKIT | New | fastening kit for duplication of STEPGATE550 gate | 1 |
