AOS01 + TOWER | TOWER A2
木材、混凝土和钢结构的锚点
描述
AOS 和 TOWER/TOWER A2，不同基材的锚固系统

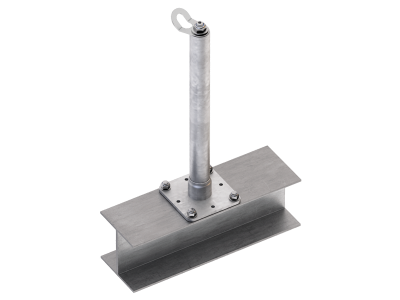

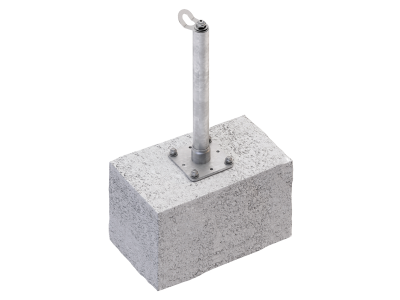

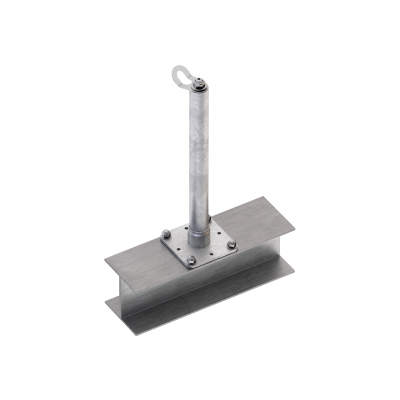

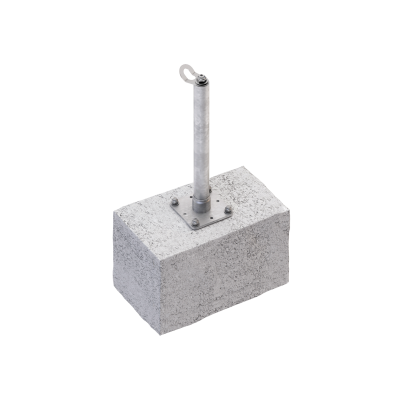

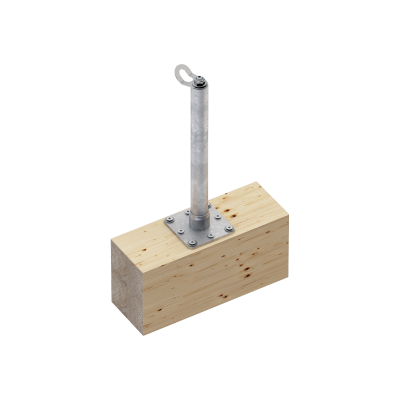

AOS01 锚点支座可以安装在木材、混凝土和钢结构上，并能承受平面内应力 (360°) 和拉拔力。支撑高度介于 300 和 600 mm之间，以适应屋面的不同厚度。它经专门设计，可用于平屋顶、倾斜屋面和天花板。
文件
-
技术数据表
-
File BIM.ifc
-
File BIM.rfa
-
符合性声明（DOC）
TOWER
| CODE | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| TOWER300 | S235JR zinc-plated steel | 48 | 150 | 300 | 150 | 1 |
| TOWER400 | S235JR zinc-plated steel | 48 | 150 | 400 | 150 | 1 |
| TOWER500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
| TOWER600 | S235JR zinc-plated steel | 48 | 150 | 600 | 150 | 1 |
| TOWER700 | S235JR zinc-plated steel | 48 | 150 | 700 | 150 | 1 |
| TOWER800 | S235JR zinc-plated steel | 48 | 150 | 800 | 150 | 1 |
| TOWER22500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
TOWER A2
| CODE | material | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TOWERA2300 | AISI 304 stainless steel grade 1.4301 | 150 | 150 | 300 | 1 |
| TOWERA2400 | AISI 304 stainless steel grade 1.4301 | 150 | 150 | 400 | 1 |
| TOWERA2500 | AISI 304 stainless steel grade 1.4301 | 150 | 150 | 500 | 1 |
AOS01
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| AOS01 | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 | |
| AOS01A4 |
New
|
- | - | - | - | 1 |
