锚点
AOS
特点
| Application | SINGLE POINT |
|---|---|

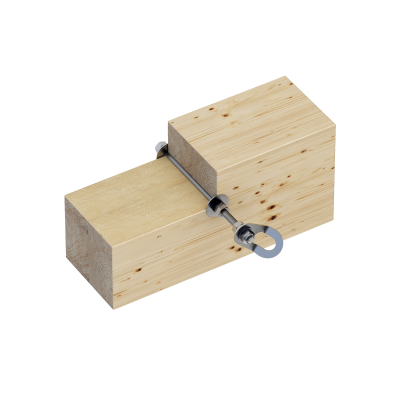

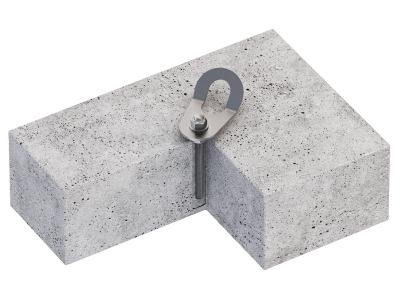

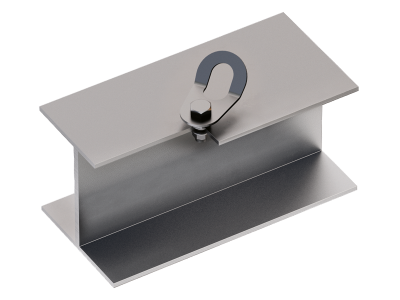

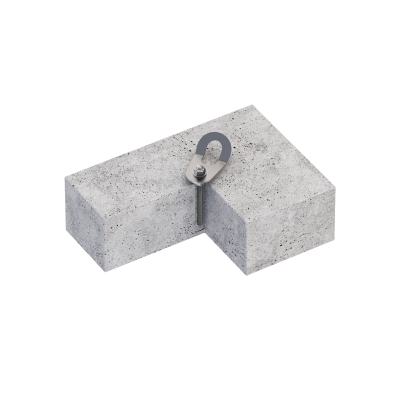

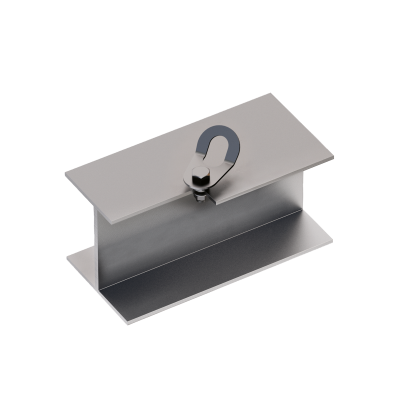

| Substructure | TIMBER, CONCRETE, STEEL |
| Field of use | MIN. TIMBER STRUCTURE 100 X 120MM - MIN. CONCRETE STRUCTURE 164MM - MIN. STEEL STRUCTURE 5MM |
| Number of workers | 3 |
| Material | STAINLESS STEEL 1.4301 / AISI304 |
文件
| 技术数据表 | |
|---|---|
| 符合性声明（DOC） | |
| 安全规程、安装和使用说明 | |
| File BIM.ifc | |
| File BIM.rfa | |
| 符合性声明（DOC） | |
| EAC certificate (anchor points) |
操作规程
| 操作手册 | |
|---|---|
| 安装手册 |
AOS
| CODE | material | H
[mm]
|
pcs. |
|---|---|---|---|
| AOS50 | AISI 304 stainless steel grade 1.4301 | 80 | 1 |
| AOS130 | AISI 304 stainless steel grade 1.4301 | 175 | 1 |
| AOS200 | AISI 304 stainless steel grade 1.4301 | 250 | 1 |
| AOS300 | AISI 304 stainless steel grade 1.4301 | 350 | 1 |
| AOS400 | AISI 304 stainless steel grade 1.4301 | 450 | 1 |
| AOS500 | AISI 304 stainless steel grade 1.4301 | 550 | 1 |
