ANTI-THERMAL BRIDGE

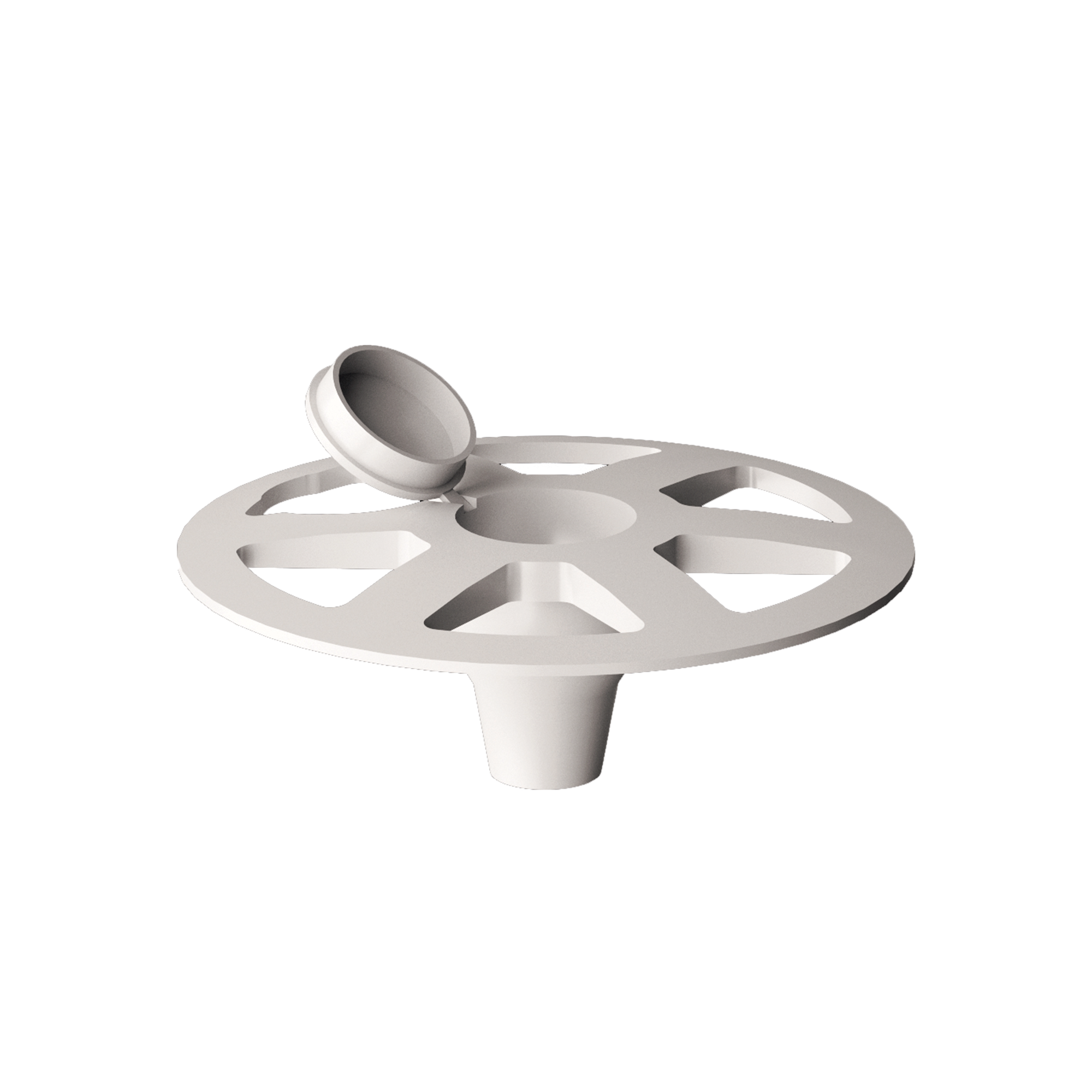

Incorporated hole cover to avoid thermal bridges. Large cable spaces for proper plaster adhesion.
SECURITY
Includes a system that impedes the unthreading of the screw; used with HBS screws with the CE mark.
CE FASTENING WITH HBS SCREWS

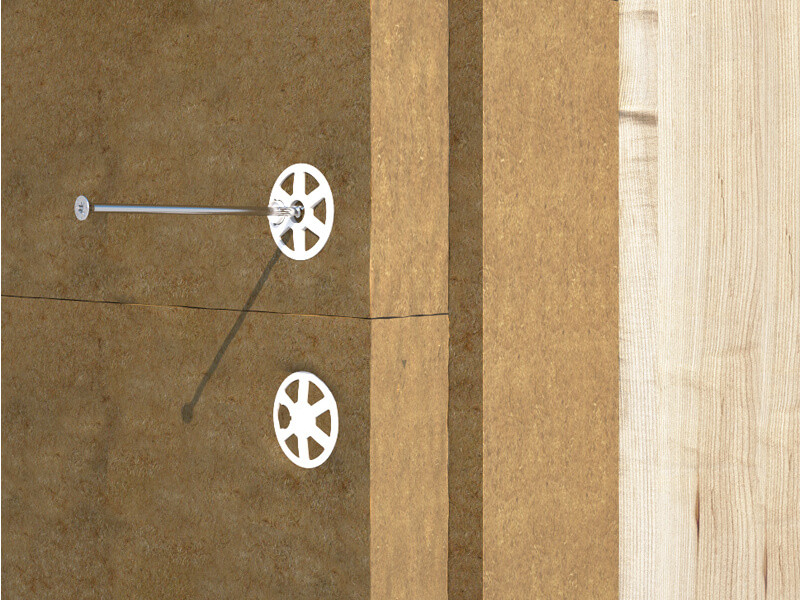

The thermowasher is intended for use with screws with the CE mark in accordance with ETA; ideal for Ø 6 or Ø 8 HBS screws, with lengths based on the thickness of the insulation to be fastened; recommended measures range from HBS 6x140 to HBS 8x500 mm.
UNIVERSAL FASTENING

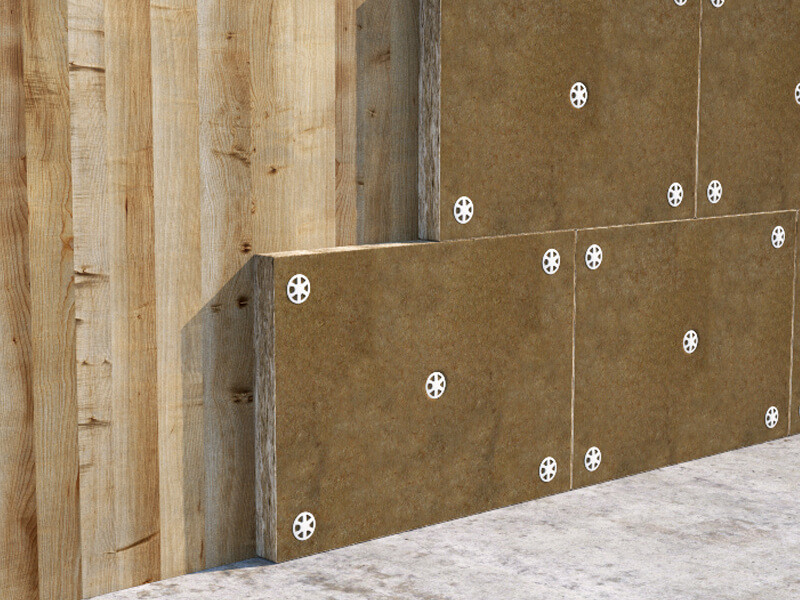

The propylene Ø 65 washer is compatible with Ø 6 and Ø 8 screws; it is appropriate for any type of insulation and any type of thickness that can be fastened, from a minimum of 30 mm up to a maximum of 420 mm. For proper setting, the insulation manufacturer’s instructions must be followed.
