大头螺钉
TBS
TBS 与普通木螺钉的不同之处在于其具有较宽的头部，可用作垫圈并确保高抗拉强度。TBS 螺钉经批准用于相对于纤维在任何方向上（α= 0°- 90°）受到应力的结构应用。

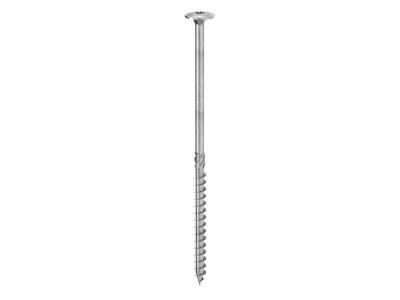

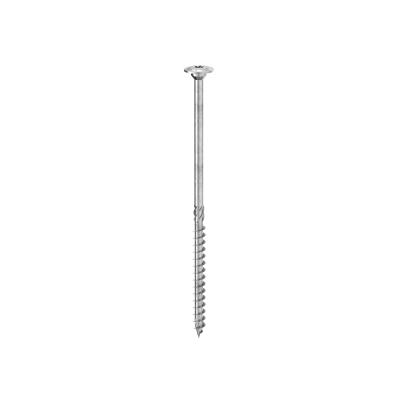

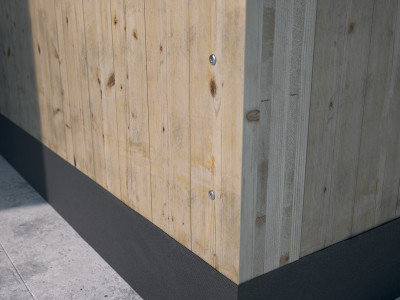

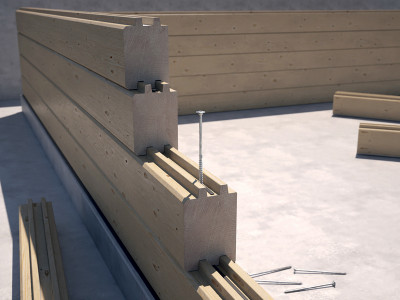

TBS，带有集成垫圈的结构木螺钉，具有出色的抗拉强度

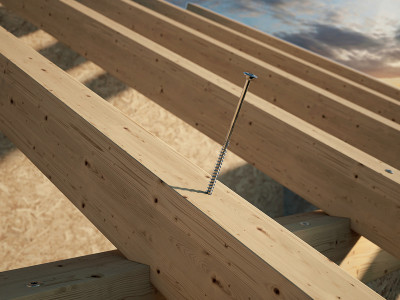

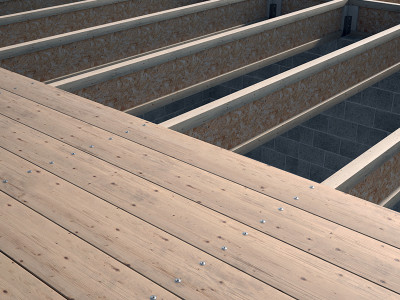

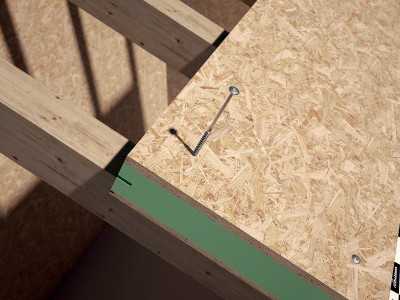

TBS 宽头螺钉非常适合将托梁固定到大梁上，以提高抗风能力。
宽头保证高抗拉强度，这就可以避免使用额外的侧向锚固系统。TBS 木螺钉的不对称“伞形”螺纹确保对木材的优异穿透能力。得益于其几何形状，TBS 是多风环境中或木材尺寸变化的理想选择。得益于出色的钢的耐断裂和屈服性能（fy,k = 1000 N/mm2），使其具有优异的强度。非常高的抗扭性能 ftor,k ，可实现更安全的旋紧。与标准相比，弯曲角度大 20°，根据 ETA 11/0030 认证。采用镀锌碳钢制成，理想适用于实木、胶合木、木质人造板、高密度木材、CLT 和 LVL。
1 级和 2 级应用。根据 EN 14592 标准测试了抗震性能。根据 EN 12512 标准进行了 SEISMIC-REV 循环测试。其数值经过测试、认证和计算，也适用于 CLT 和高密度木材，例如 LVL 单板层积材。
特点
文件
技术数据表
|
|
|---|---|
导入部最小距离
|
|
技术数据表 JAPAN
|
|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
Item specification
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
TBS
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| TBS660 | - | 6 | 60 | 40 | 0.24 | 2 3/8'' | 1 9/16'' | TX30 | 100 |
| TBS670 | - | 6 | 70 | 40 | 0.24 | 2 3/4'' | 1 9/16'' | TX30 | 100 |
| TBS680 | - | 6 | 80 | 50 | 0.24 | 3 1/8'' | 1 15/16'' | TX30 | 100 |
| TBS690 | - | 6 | 90 | 50 | 0.24 | 3 1/2'' | 1 15/16'' | TX30 | 100 |
| TBS6100 | - | 6 | 100 | 60 | 0.24 | 4'' | 2 3/8'' | TX30 | 100 |
| TBS6120 | - | 6 | 120 | 75 | 0.24 | 4 3/4'' | 2 15/16'' | TX30 | 100 |
| TBS6140 | - | 6 | 140 | 75 | 0.24 | 5 1/2'' | 2 15/16'' | TX30 | 100 |
| TBS6160 | - | 6 | 160 | 75 | 0.24 | 6 1/4'' | 2 15/16'' | TX30 | 100 |
| TBS6180 | - | 6 | 180 | 75 | 0.24 | 7 1/8'' | 2 15/16'' | TX30 | 100 |
| TBS6200 | - | 6 | 200 | 75 | 0.24 | 8'' | 2 15/16'' | TX30 | 100 |
| TBS6220 | - | 6 | 220 | 100 | 0.24 | 8 5/8'' | 4'' | TX30 | 100 |
| TBS6240 | - | 6 | 240 | 100 | 0.24 | 9 1/2'' | 4'' | TX30 | 100 |
| TBS6260 | - | 6 | 260 | 100 | 0.24 | 10 1/4'' | 4'' | TX30 | 100 |
| TBS6280 | - | 6 | 280 | 100 | 0.24 | 11'' | 4'' | TX30 | 100 |
| TBS6300 | - | 6 | 300 | 100 | 0.24 | 11 3/4'' | 4'' | TX30 | 100 |
| TBS6320 | - | 6 | 320 | 100 | 0.24 | 12 5/8'' | 4'' | TX30 | 100 |
| TBS6360 | - | 6 | 360 | 100 | 0.24 | 14 1/4'' | 4'' | TX30 | 100 |
| TBS6400 | - | 6 | 400 | 100 | 0.24 | 15 3/4'' | 4'' | TX30 | 100 |
| TBS840 | - | 8 | 40 | 32 | 0.32 | 1 9/16'' | 1 1/4'' | TX40 | 100 |
| TBS860 | - | 8 | 60 | 32 | 0.32 | 2 3/8'' | 1 1/4'' | TX40 | 100 |
| TBS880 | - | 8 | 80 | 52 | 0.32 | 3 1/8'' | 2 1/16'' | TX40 | 50 |
| TBS8100 | - | 8 | 100 | 52 | 0.32 | 4'' | 2 1/16'' | TX40 | 50 |
| TBS8120 | - | 8 | 120 | 80 | 0.32 | 4 3/4'' | 3 1/8'' | TX40 | 50 |
| TBS8140 | - | 8 | 140 | 80 | 0.32 | 5 1/2'' | 3 1/8'' | TX40 | 50 |
| TBS8160 | - | 8 | 160 | 100 | 0.32 | 6 1/4'' | 4'' | TX40 | 50 |
| TBS8180 | - | 8 | 180 | 100 | 0.32 | 7 1/8'' | 4'' | TX40 | 50 |
| TBS8200 | - | 8 | 200 | 100 | 0.32 | 8'' | 4'' | TX40 | 50 |
| TBS8220 | - | 8 | 220 | 100 | 0.32 | 8 5/8'' | 4'' | TX40 | 50 |
| TBS8240 | - | 8 | 240 | 100 | 0.32 | 9 1/2'' | 4'' | TX40 | 50 |
| TBS8260 | - | 8 | 260 | 100 | 0.32 | 10 1/4'' | 4'' | TX40 | 50 |
| TBS8280 | - | 8 | 280 | 100 | 0.32 | 11'' | 4'' | TX40 | 50 |
| TBS8300 | - | 8 | 300 | 100 | 0.32 | 11 3/4'' | 4'' | TX40 | 50 |
| TBS8320 | - | 8 | 320 | 100 | 0.32 | 12 5/8'' | 4'' | TX40 | 50 |
| TBS8340 | - | 8 | 340 | 100 | 0.32 | 13 3/8'' | 4'' | TX40 | 50 |
| TBS8360 | - | 8 | 360 | 100 | 0.32 | 14 1/4'' | 4'' | TX40 | 50 |
| TBS8380 | - | 8 | 380 | 100 | 0.32 | 15'' | 4'' | TX40 | 50 |
| TBS8400 | - | 8 | 400 | 100 | 0.32 | 15 3/4'' | 4'' | TX40 | 50 |
| TBS8440 | - | 8 | 440 | 100 | 0.32 | 17 1/4'' | 4'' | TX40 | 50 |
| TBS8480 | - | 8 | 480 | 100 | 0.32 | 19'' | 4'' | TX40 | 50 |
| TBS8520 | - | 8 | 520 | 100 | 0.32 | 20 1/2'' | 4'' | TX40 | 50 |
| TBS8560 | - | 8 | 560 | 100 | 0.32 | 22'' | 4'' | TX40 | 50 |
| TBS8580 | - | 8 | 580 | 100 | 0.32 | 22 13/16'' | 4'' | TX40 | 50 |
| TBS8600 | - | 8 | 600 | 100 | 0.32 | 23 5/8'' | 4'' | TX40 | 50 |
| TBS10100 | - | 10 | 100 | 52 | 0.4 | 4'' | 2 1/16'' | TX50 | 50 |
| TBS10120 | - | 10 | 120 | 60 | 0.4 | 4 3/4'' | 2 3/8'' | TX50 | 50 |
| TBS10140 | - | 10 | 140 | 60 | 0.4 | 5 1/2'' | 2 3/8'' | TX50 | 50 |
| TBS10160 | - | 10 | 160 | 80 | 0.4 | 6 1/4'' | 3 1/8'' | TX50 | 50 |
| TBS10180 | - | 10 | 180 | 80 | 0.4 | 7 1/8'' | 3 1/8'' | TX50 | 50 |
| TBS10200 | - | 10 | 200 | 100 | 0.4 | 8'' | 4'' | TX50 | 50 |
| TBS10220 | - | 10 | 220 | 100 | 0.4 | 8 5/8'' | 4'' | TX50 | 50 |
| TBS10240 | - | 10 | 240 | 100 | 0.4 | 9 1/2'' | 4'' | TX50 | 50 |
| TBS10260 | - | 10 | 260 | 100 | 0.4 | 10 1/4'' | 4'' | TX50 | 50 |
| TBS10280 | - | 10 | 280 | 100 | 0.4 | 11'' | 4'' | TX50 | 50 |
| TBS10300 | - | 10 | 300 | 100 | 0.4 | 11 3/4'' | 4'' | TX50 | 50 |
| TBS10320 | - | 10 | 320 | 120 | 0.4 | 12 5/8'' | 4 3/4'' | TX50 | 50 |
| TBS10340 | - | 10 | 340 | 120 | 0.4 | 13 3/8'' | 4 3/4'' | TX50 | 50 |
| TBS10360 | - | 10 | 360 | 120 | 0.4 | 14 1/4'' | 4 3/4'' | TX50 | 50 |
| TBS10380 | - | 10 | 380 | 120 | 0.4 | 15'' | 4 3/4'' | TX50 | 50 |
| TBS10400 | - | 10 | 400 | 120 | 0.4 | 15 3/4'' | 4 3/4'' | TX50 | 50 |
| TBS10440 | - | 10 | 440 | 120 | 0.4 | 17 1/4'' | 4 3/4'' | TX50 | 50 |
| TBS10480 | - | 10 | 480 | 120 | 0.4 | 19'' | 4 3/4'' | TX50 | 50 |
| TBS10520 | - | 10 | 520 | 120 | 0.4 | 20 1/2'' | 4 3/4'' | TX50 | 50 |
| TBS10560 | - | 10 | 560 | 120 | 0.4 | 22'' | 4 3/4'' | TX50 | 50 |
| TBS10600 | - | 10 | 600 | 120 | 0.4 | 23 5/8'' | 4 3/4'' | TX50 | 50 |
| TBS12200 | - | 12 | 200 | 120 | 0.48 | 8'' | 4 3/4'' | TX50 | 25 |
| TBS12240 | - | 12 | 240 | 120 | 0.48 | 9 1/2'' | 4 3/4'' | TX50 | 25 |
| TBS12280 | - | 12 | 280 | 120 | 0.48 | 11'' | 4 3/4'' | TX50 | 25 |
| TBS12320 | - | 12 | 320 | 120 | 0.48 | 12 5/8'' | 4 3/4'' | TX50 | 25 |
| TBS12360 | - | 12 | 360 | 120 | 0.48 | 14 1/4'' | 4 3/4'' | TX50 | 25 |
| TBS12400 | - | 12 | 400 | 140 | 0.48 | 15 3/4'' | 5 1/2'' | TX50 | 25 |
| TBS12440 | - | 12 | 440 | 140 | 0.48 | 17 1/4'' | 5 1/2'' | TX50 | 25 |
| TBS12480 | - | 12 | 480 | 140 | 0.48 | 19'' | 5 1/2'' | TX50 | 25 |
| TBS12520 | - | 12 | 520 | 140 | 0.48 | 20 1/2'' | 5 1/2'' | TX50 | 25 |
| TBS12560 | - | 12 | 560 | 140 | 0.48 | 22'' | 5 1/2'' | TX50 | 25 |
| TBS12600 | - | 12 | 600 | 140 | 0.48 | 23 5/8'' | 5 1/2'' | TX50 | 25 |
| TBS12800 | - | 12 | 800 | 160 | 0.48 | 31 1/2'' | 6 1/4'' | TX50 | 25 |
| TBS121000 | - | 12 | 1000 | 160 | 0.48 | 39 3/8'' | 6 1/4'' | TX50 | 25 |
