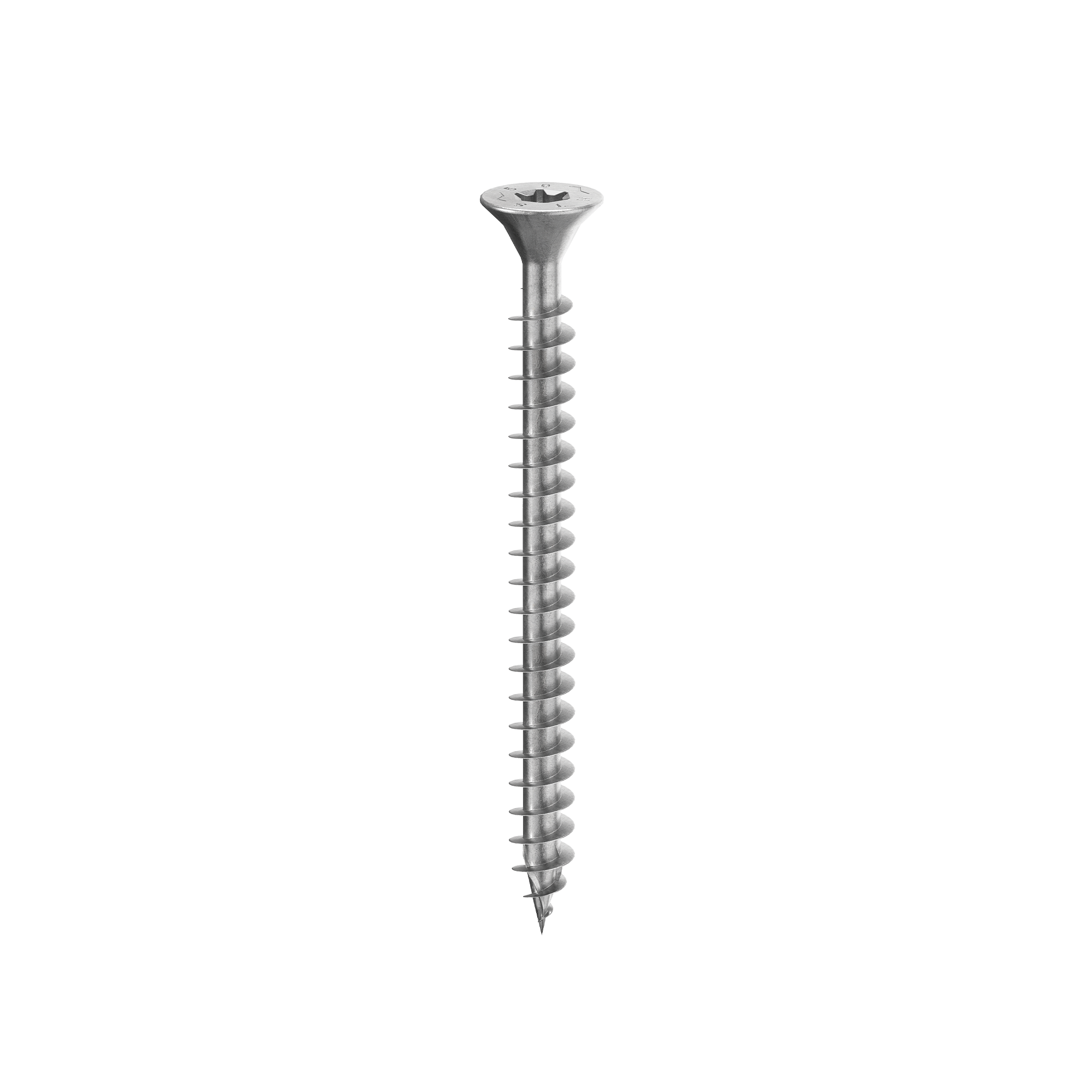

0HTS, 刨花板螺钉，确保木质人造板或 MDF 板固定的更大稳定性
HTS 在用于木质人造板和胶合木的螺钉中脱颖而出。宽螺距螺纹确保即使在 MDF 板上也能实现更大旋紧精度。采用镀锌碳钢，非常适合 1 级和 2 级应用。
不含六价铬，符合非常严格的化学物质监管法规（SVHC）。
特点
文件
| 技术数据表 | |
|---|---|
| Declaration of performance (DOP) | 下载 |
HTS
| CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| HTS312 | 3 | 12 | TX10 | 1000 |
| HTS316 | 3 | 16 | TX10 | 1000 |
| HTS320 | 3 | 20 | TX10 | 1000 |
| HTS325 | 3 | 25 | TX10 | 1000 |
| HTS330 | 3 | 30 | TX10 | 1000 |
| HTS3516 | 3.5 | 16 | TX15 | 1000 |
| HTS3520 | 3.5 | 20 | TX15 | 1000 |
| HTS3525 | 3.5 | 25 | TX15 | 1000 |
| HTS3530 | 3.5 | 30 | TX15 | 500 |
| HTS3535 | 3.5 | 35 | TX15 | 500 |
| HTS3540 | 3.5 | 40 | TX15 | 500 |
| HTS3550 | 3.5 | 50 | TX15 | 400 |
| HTS420 | 4 | 20 | TX20 | 1000 |
| HTS425 | 4 | 25 | TX20 | 1000 |
| HTS430 | 4 | 30 | TX20 | 500 |
| HTS435 | 4 | 35 | TX20 | 500 |
| HTS440 | 4 | 40 | TX20 | 500 |
| HTS445 | 4 | 45 | TX20 | 400 |
| HTS450 | 4 | 50 | TX20 | 400 |
| HTS4530 | 4.5 | 30 | TX20 | 500 |
| HTS4535 | 4.5 | 35 | TX20 | 500 |
| HTS4540 | 4.5 | 40 | TX20 | 400 |
| HTS4545 | 4.5 | 45 | TX20 | 400 |
| HTS4550 | 4.5 | 50 | TX20 | 200 |
| HTS530 | 5 | 30 | TX25 | 500 |
| HTS535 | 5 | 35 | TX25 | 200 |
| HTS540 | 5 | 40 | TX25 | 200 |
| HTS545 | 5 | 45 | TX25 | 200 |
| HTS550 | 5 | 50 | TX25 | 200 |
| HTS560 | 5 | 60 | TX25 | 200 |
| HTS570 | 5 | 70 | TX25 | 100 |
| HTS580 | 5 | 80 | TX25 | 100 |
