LBV

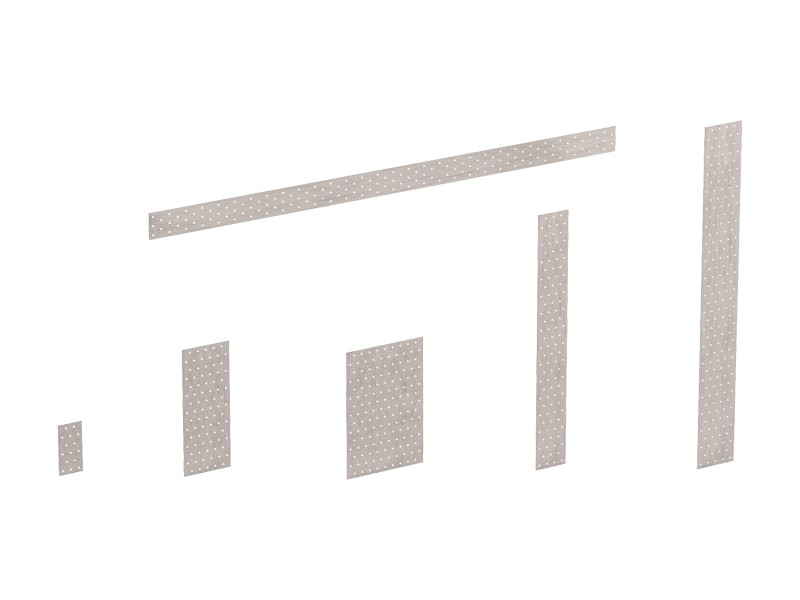

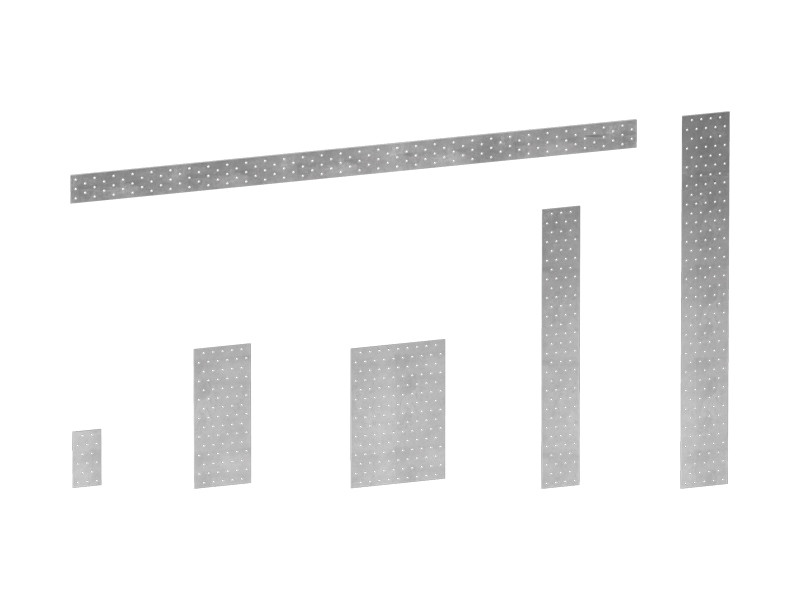

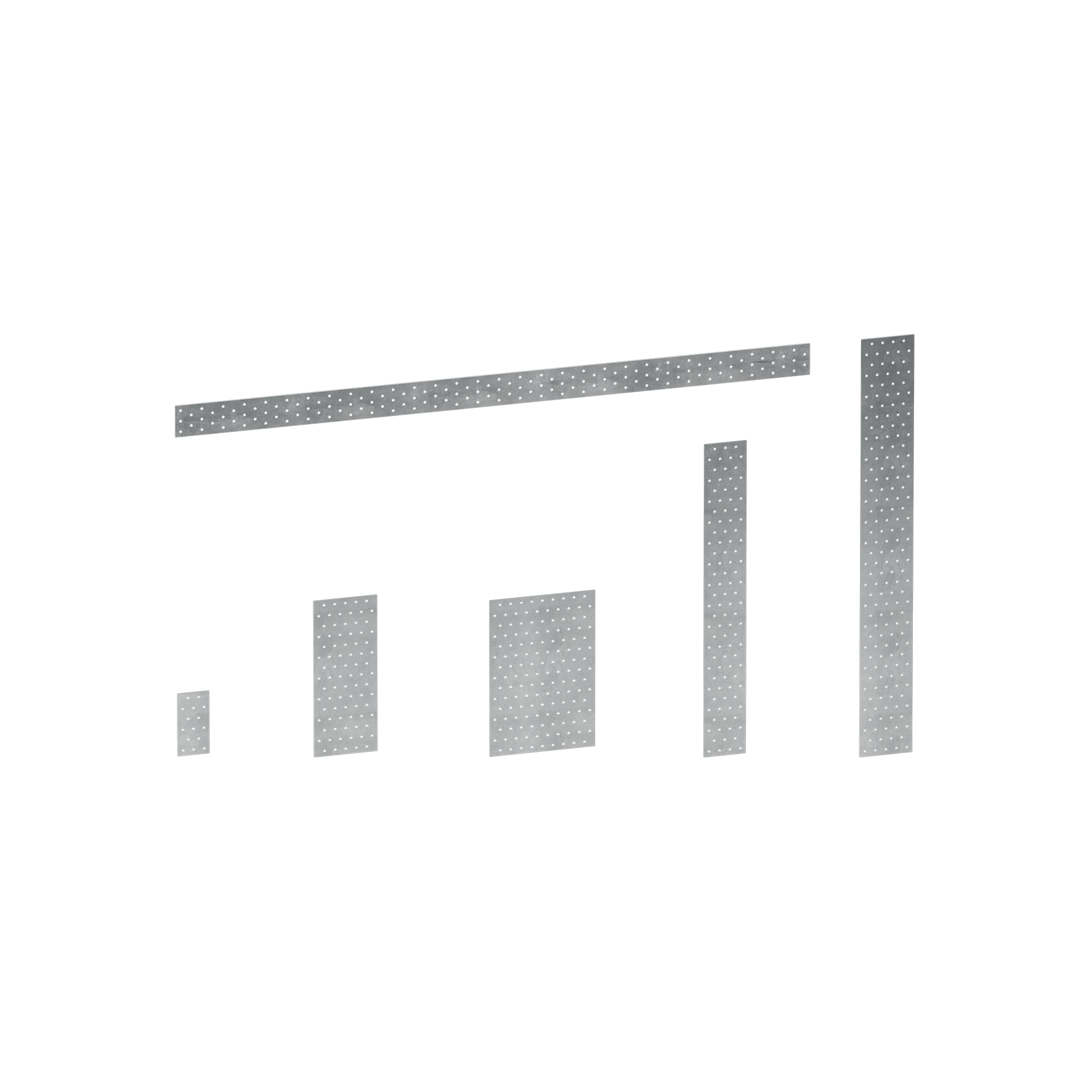

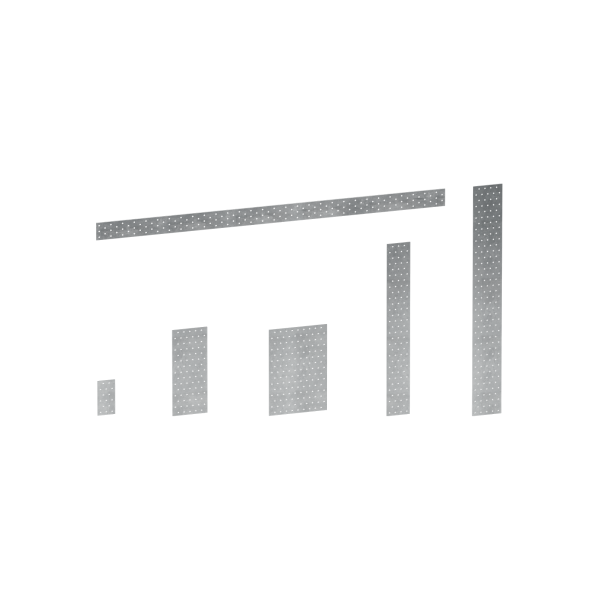

冲孔板

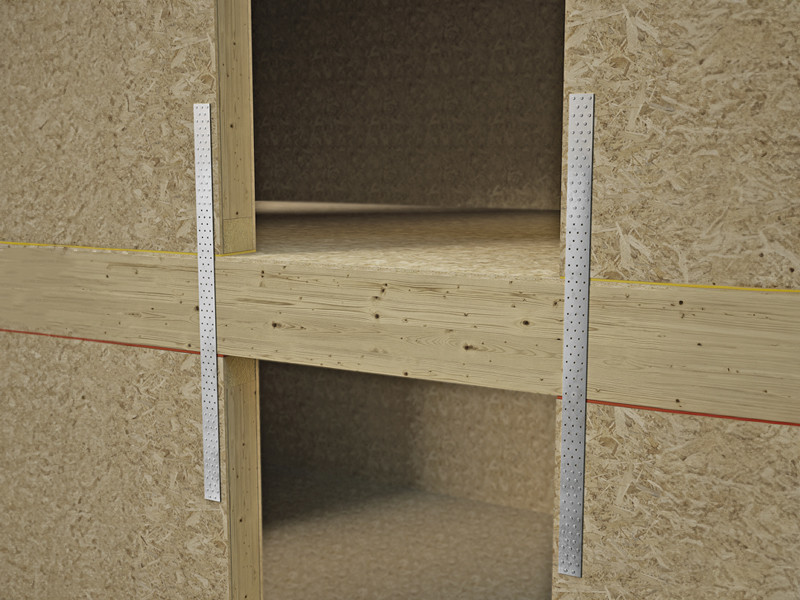

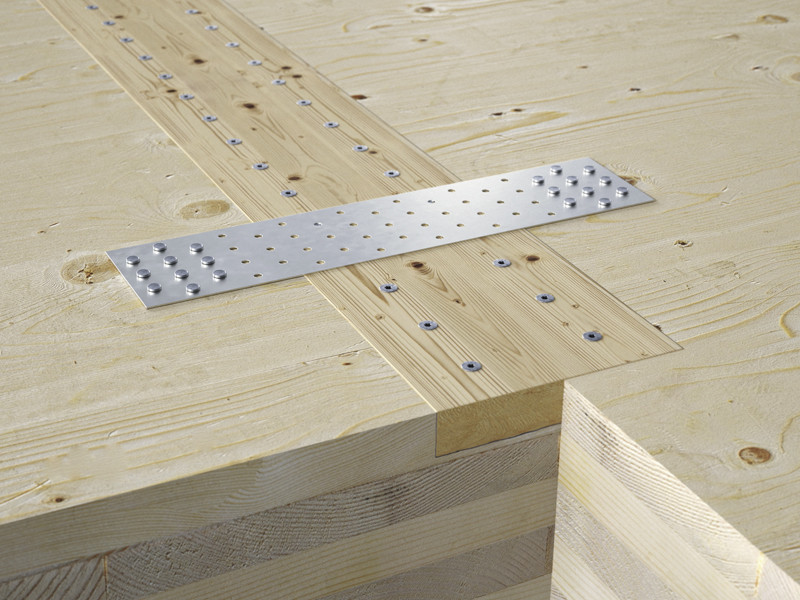

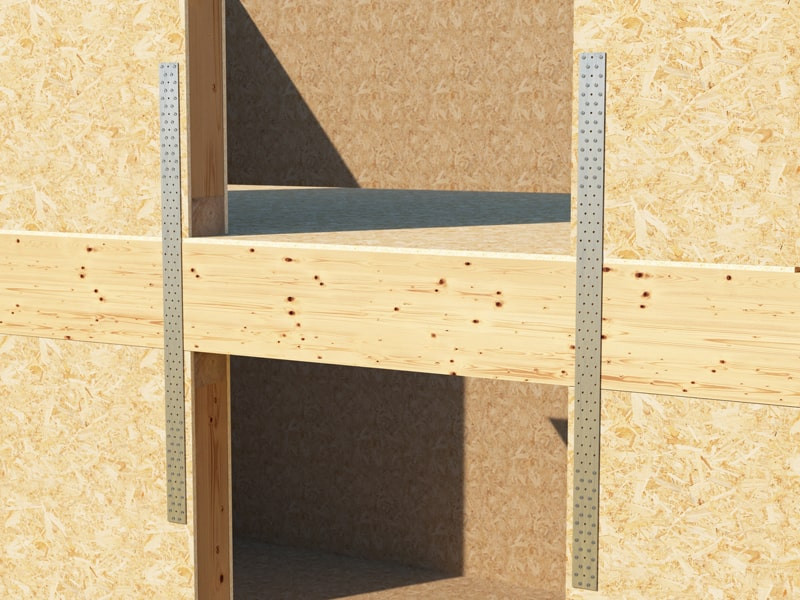

"提供多种型号，旨在满足所有木建筑的需求。LBV 板材不仅可实现简单的梁和托梁的节点连接，甚至还可以进行最重要的层间连接。

一款“无需定制的解决方案”，可以满足最常见的要求并最大程度缩短安装时间。其性价比非常高。非常适合木构件中要求高抗拉强度的的各种结构性节点。

几何特性和材料特性经 CE 认证。"

技术数据表

Choose a Language
File CAD

Choose a Language
File BIM.ifc

Choose a Language
File BIM.rfa

Choose a Language
LBV Calculator – Spreadsheet according to NDS (USA building code)

Choose a Language

CODE	B [mm]	H [mm]	s [mm]	B [in]	H [in]	s [in]	pcs.
LBV60600	60	600	1.5	2 3/8''	23 5/8''	0.059	10
LBV60800	60	800	1.5	2 3/8''	31 1/2''	0.059	10
LBV80600	80	600	1.5	3 1/8''	23 5/8''	0.059	10
LBV80800	80	800	1.5	3 1/8''	31 1/2''	0.059	10
LBV100800	100	800	1.5	4''	31 1/2''	0.059	10

CODE	B [mm]	H [mm]	s [mm]	B [in]	H [in]	s [in]	pcs.
LBV40120	40	120	2	1 9/16''	4 3/4''	0.079	200
LBV40160	40	160	2	1 9/16''	6 1/4''	0.079	50
LBV60140	60	140	2	2 3/8''	5 1/2''	0.079	50
LBV60200	60	200	2	2 3/8''	8''	0.079	100
LBV60240	60	240	2	2 3/8''	9 1/2''	0.079	100
LBV80200	80	200	2	3 1/8''	8''	0.079	50
LBV80240	80	240	2	3 1/8''	9 1/2''	0.079	50
LBV80300	80	300	2	3 1/8''	11 3/4''	0.079	50
LBV100140	100	140	2	4''	5 1/2''	0.079	50
LBV100200	100	200	2	4''	8''	0.079	50
LBV100240	100	240	2	4''	9 1/2''	0.079	50
LBV100300	100	300	2	4''	11 3/4''	0.079	50
LBV100400	100	400	2	4''	15 3/4''	0.079	20
LBV100500	100	500	2	4''	19 3/4''	0.079	20
LBV120200	120	200	2	4 3/4''	8''	0.079	50
LBV120240	120	240	2	4 3/4''	9 1/2''	0.079	50
LBV120300	120	300	2	4 3/4''	11 3/4''	0.079	50
LBV140400	140	400	2	5 1/2''	15 3/4''	0.079	15
LBV160400	160	400	2	6 1/4''	15 3/4''	0.079	15
LBV200300	200	300	2	8''	11 3/4''	0.079	15

CODE	B [mm]	H [mm]	s [mm]	B [in]	H [in]	s [in]	pcs.
LBV401200	40	1200	2	1 9/16''	47 1/4''	0.079	20
LBV601200	60	1200	2	2 3/8''	47 1/4''	0.079	20
LBV801200	80	1200	2	3 1/8''	47 1/4''	0.079	20
LBV1001200	100	1200	2	4''	47 1/4''	0.079	10
LBV1201200	120	1200	2	4 3/4''	47 1/4''	0.079	10
LBV1401200	140	1200	2	5 1/2''	47 1/4''	0.079	10
LBV1601200	160	1200	2	6 1/4''	47 1/4''	0.079	10
LBV1801200	180	1200	2	7 1/8''	47 1/4''	0.079	10
LBV2001200	200	1200	2	8''	47 1/4''	0.079	5
LBV2201200	220	1200	2	8 5/8''	47 1/4''	0.079	5
LBV2401200	240	1200	2	9 1/2''	47 1/4''	0.079	5
LBV2601200	260	1200	2	10 1/4''	47 1/4''	0.079	5
LBV2801200	280	1200	2	11''	47 1/4''	0.079	5
LBV3001200	300	1200	2	11 3/4''	47 1/4''	0.079	5
LBV4001200	400	1200	2	15 3/4''	47 1/4''	0.079	5
