VERTIGRIP ON WALL

墙壁上的垂直生命线

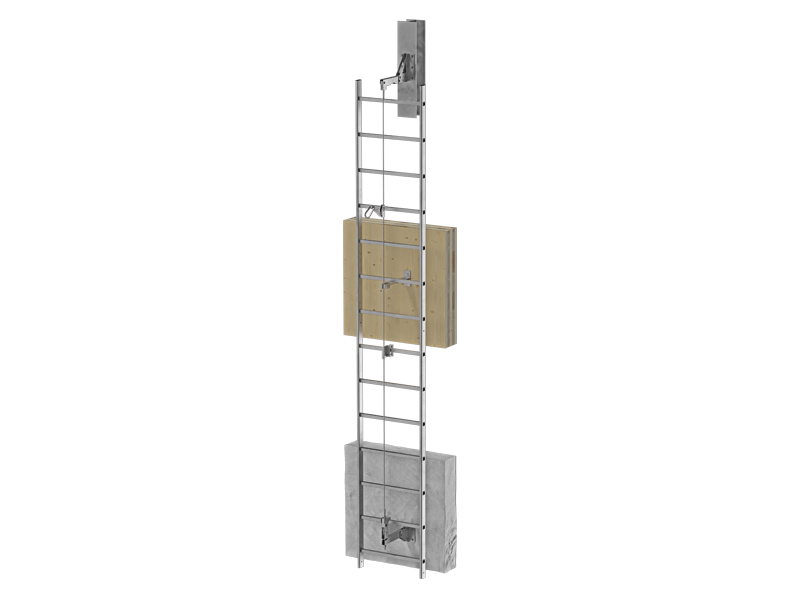

VERTIGRIP ON WALL 是墙壁垂直生命线，在无法将生命线直接安装在爬梯上的情况下，它可以用作有效的替代方案。它可以很容易地安装在木质、钢和混凝土基材上。

VERTIGRIP ON WALL 墙壁生命线：爬梯生命线的替代品

VERTIGRIP ON WALL 墙壁垂直生命线允许调整该生命线与墙壁的距离。它可以安装在与垂直方向成多达 15°角倾斜的墙壁上。

CODE	description	pcs.
VERTSPEAR	set for vertical lifeline with clamps and Tensioner	1
CABLE	Ø8 7 x 7	1
VERTSLIDE	removable guided type fall arrester with energy absorber for vertical lifeline	1
VERTSPEARA4	set for A4 VLL	1
VERTOPW	upper anchor system for vertical lifeline on structure	1
VERTOPWA4	upper anchor system for vertical lifeline on A4 structure	1
VERTBASEW	lower anchor system for vertical lifeline on structure	1
VERTBASEWA4	lower anchor system for vertical lifeline on A4 structure	1
VERTINTW	intermediate bracket for vertical lifeline on structure	1
VERTINTWA4	intermediate anchor system for vertical lifeline on A4 structure	1

CODE	description	material	peso netto [Kg]	pcs.
VERTOPW	upper anchor system for vertical lifeline on structure	AISI 304 stainless steel grade 1.4301	2	1
VERTOPWA4	upper anchor system for vertical lifeline on A4 structure	AISI 316 stainless steel grade 1.4401	2	1
VERTBASEW	lower anchor system for vertical lifeline on structure	AISI 304 stainless steel grade 1.4301	1	1
VERTBASEWA4	lower anchor system for vertical lifeline on A4 structure	AISI 316 stainless steel grade 1.4401	1	1
VERTINTW	intermediate bracket for vertical lifeline on structure	AISI 304 stainless steel grade 1.4301 – ABS	1	1
VERTINTWA4	intermediate anchor system for vertical lifeline on A4 structure	AISI 316 stainless steel grade 1.4401 – ABS	1	1

CODE	description	material	peso netto [Kg]	pcs.
VERTHAND	set of handles for VERTOP17	PA6 - stainless steel 1.4301 / AISI 304	0.05	1
VERTSUP1	additional reinforcement set for ladder	AISI 304 stainless steel grade 1.4301	0.5	1

CODE	description	pcs.
TARGAVERTIT	Label plate for VERTIGRIP systems IT	1
TARGAVERTDE	Label plate for VERTIGRIP systems DE	1
TARGAVERTEN	Label plate for VERTIGRIP systems EN	1
TARGAVERTES	Label plate for VERTIGRIP systems ES	1
TARGAVERTFR	Label plate for VERTIGRIP systems FR	1
TARGAVERTPT	Label plate for VERTIGRIP systems PT	1
TARGAVERTRU	Label plate for VERTIGRIP systems RU	1
TARGAVERTCS	Label plate for VERTIGRIP systems CS	1
TARGAVERTDA	Label plate for VERTIGRIP systems DA	1
TARGAVERTEL	Label plate for VERTIGRIP systems EL	1
TARGAVERTET	Label plate for VERTIGRIP systems ET	1
TARGAVERTFI	Label plate for VERTIGRIP systems FI	1
TARGAVERTHR	Label plate for VERTIGRIP systems HR	1
TARGAVERTHU	Label plate for VERTIGRIP systems HU	1
TARGAVERTIS	Label plate for VERTIGRIP systems IS	1
TARGAVERTJA	Label plate for VERTIGRIP systems JA	1
TARGAVERTLT	Label plate for VERTIGRIP systems LT	1
TARGAVERTLV	Label plate for VERTIGRIP systems LV	1
TARGAVERTNL	Label plate for VERTIGRIP systems NL	1
TARGAVERTNO	Label plate for VERTIGRIP systems NO	1
TARGAVERTPL	Label plate for VERTIGRIP systems PL	1
TARGAVERTRO	Label plate for VERTIGRIP systems RO	1
TARGAVERTSK	Label plate for VERTIGRIP systems SK	1
TARGAVERTSL	Label plate for VERTIGRIP systems SL	1
TARGAVERTSV	Label plate for VERTIGRIP systems SV	1
TARGAVERTTR	Label plate for VERTIGRIP systems TR	1
TARGAVERTZH	Label plate for VERTIGRIP systems ZH	1
TARGAVERTAR	Label plate for VERTIGRIP systems AR	1

由...组成

垂直生命线
