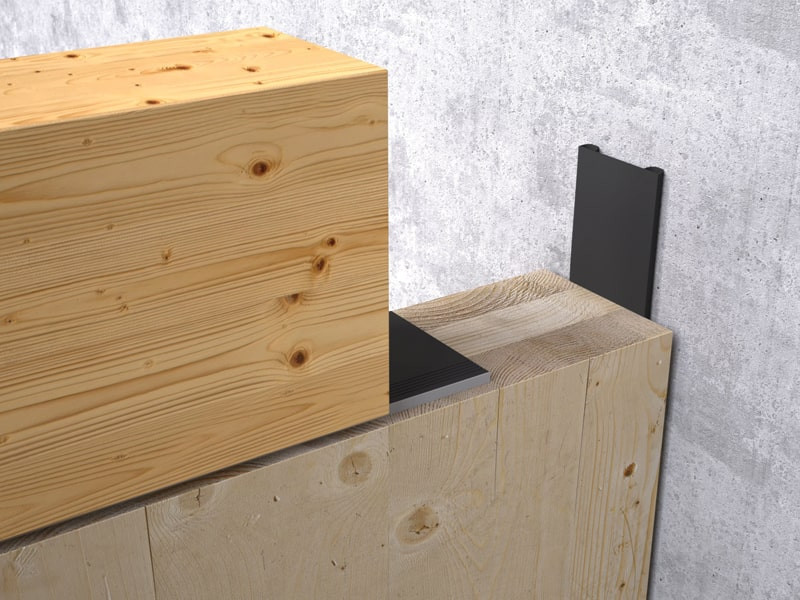

适应性强，适合多种表面的: TIE BEAM STRIPE、是用于专业系梁与砌体连接的密封型材
文件
| 技术数据表 |
|---|

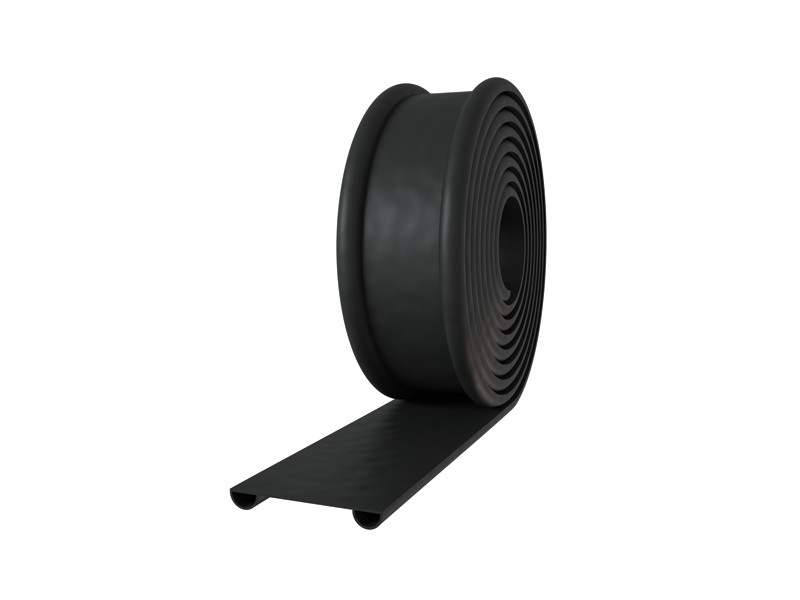

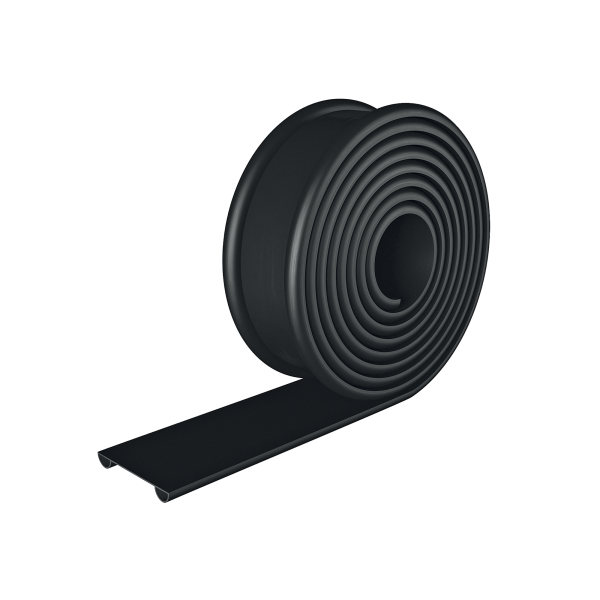

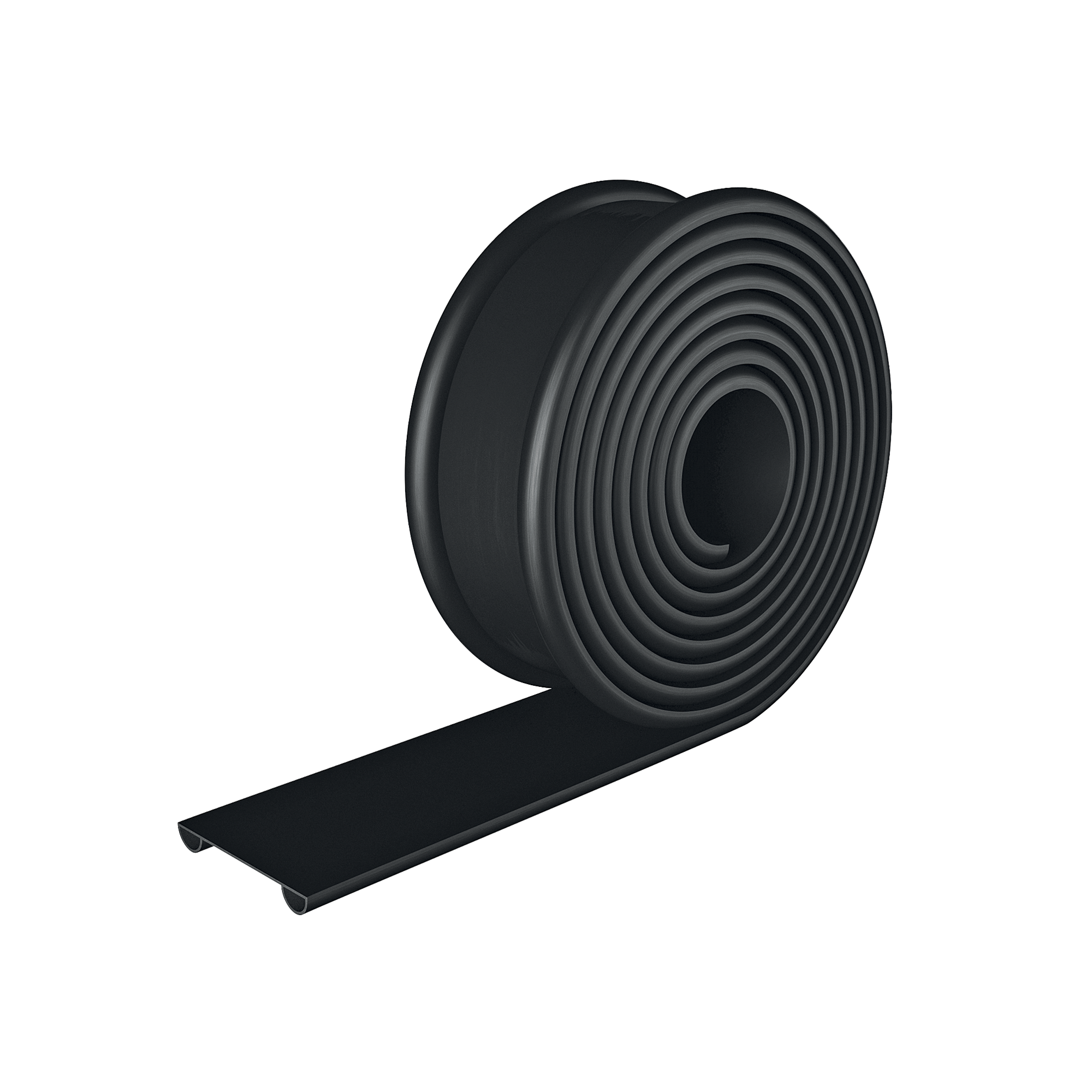

TIE-BEAM STRIPE
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| TIEBEAM71 | 71 | 9 | 50 | 2.8 | 355 | 165 | 1 |
Technical Data
| Shore A hardness | EN ISO 868 | 50 | - |
|---|---|---|---|
| Density | ASTM D297 | 1,1 g/cm³ | 0.64 oz/in³ |
| Compression deformation (22h + 100 °C) | EN ISO 815 | < 50 % | - |
| Break point load | EN ISO 37 | ≥ 9 MPa | - |
| Elongation at break point | EN ISO 37 | ≥ 500 % | - |
| Application temperature | - | -40 / 90 °C | -40 / 194 °F |
| Thermal resistance | - | -40 / 100 °C | -40 / 212 °F |
| Storage temperature (1) | - | 5 / 25 °C | 41 / 77 °F |
| Solvents | - | no | - |
1. Store the product in a dry, covered location.
Composition
| SUPPORT | Extruded compact EPDM |
|---|
