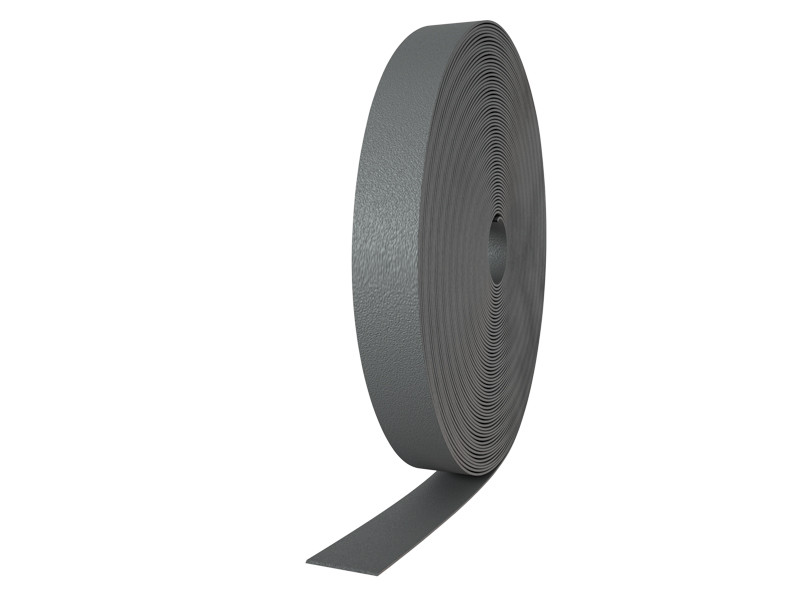

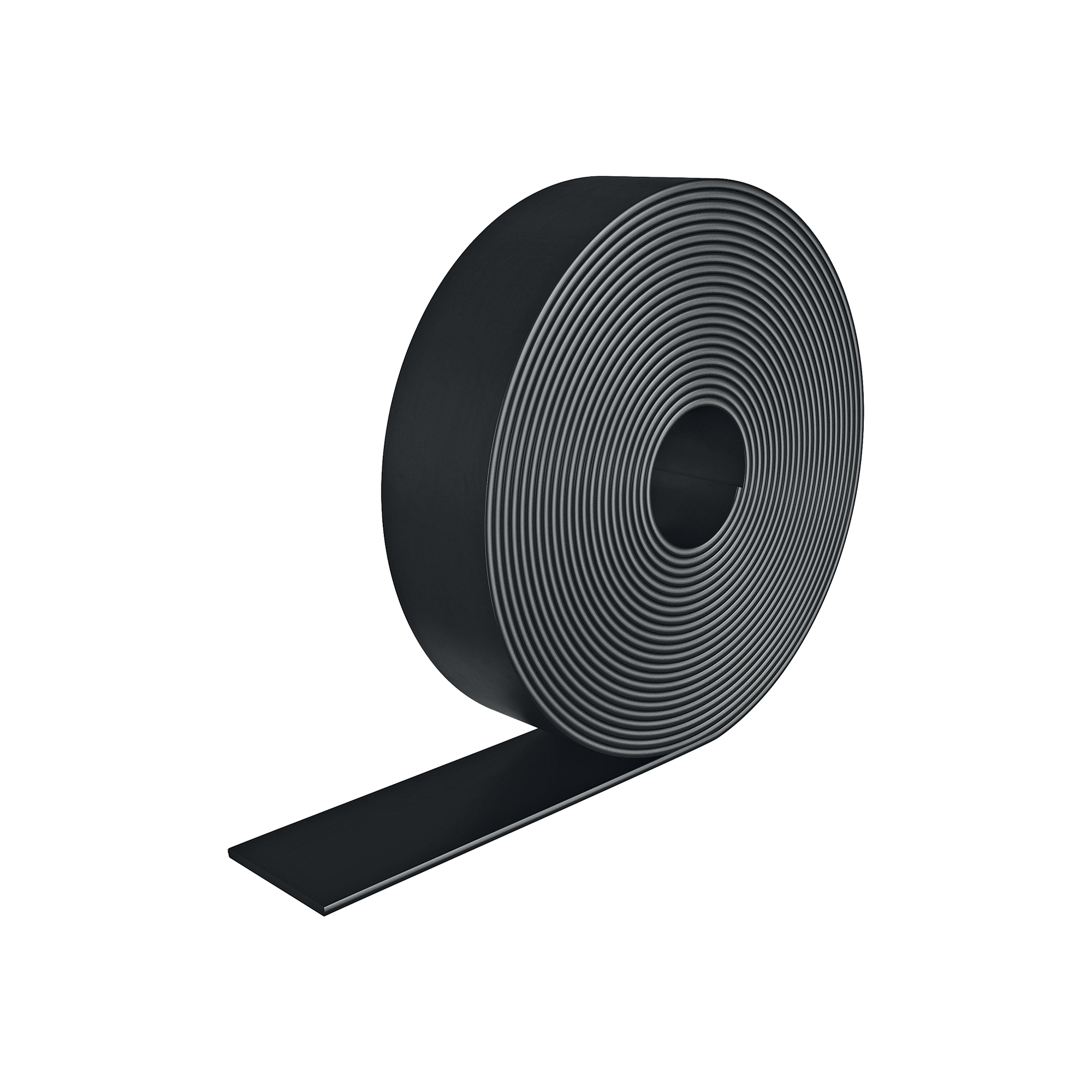

单一解决方案中结构元件之间的气密性和隔音:发现CONSTRUCTION SEALING
建筑密封垫片提供良好的隔音性能,耐久性强,耐化学侵蚀能力强。随着时间的推移,三元乙丙橡胶化合物能确保高化学稳定性和耐用性,可以被压缩,和适应不同的安装表面。
由于机械紧固,即使在潮湿或粗糙的表面,铺设也快速简单。得到很高的密封性,通过了风门试验。

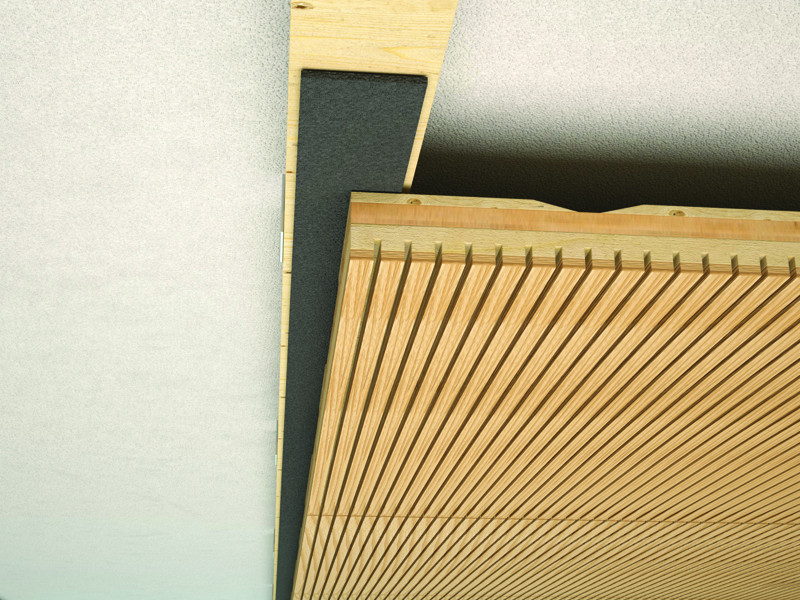

CONSTRUCTION SEALING的声学性能在我们的Flanksound项目中已经过测试:使用它作为墙壁垫片提供高达3分贝的降噪。不含对人和环境有害的物质。
特点
Material | Expanded EPDM |
---|---|
Thickness | 3,0 mm |
Dimensions | Strips from 46 mm |
Application | Sealing gaskets |
Installation | Mechanical installation |
文件
技术数据表 |
---|
CONSTRUCTION SEALING
CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
---|---|---|---|---|---|---|---|
CONSTRU4625 | 46 | 3 | 25 | 1.8 | 118 | 82 | 3 |
Technical Data
Density | - | 0,48 g/cm³ | 0.28 oz/in³ |
---|---|---|---|
Compression deformation (22h +23 °C) | EN ISO 815 | < 25 % | - |
Compression deformation (22h +40 °C) | EN ISO 815 | < 35 % | - |
Thermal resistance | - | -35 / 100 °C | -31 / 212 °F |
Storage temperature (1) | - | 5 / 25 °C | 41 / 77 °F |
Solvents | - | no | - |
1. Store the product in a dry, covered location.
Composition
SUPPORT | Extruded compact EPDM |
---|
