高性能隔音密封泡沫胶

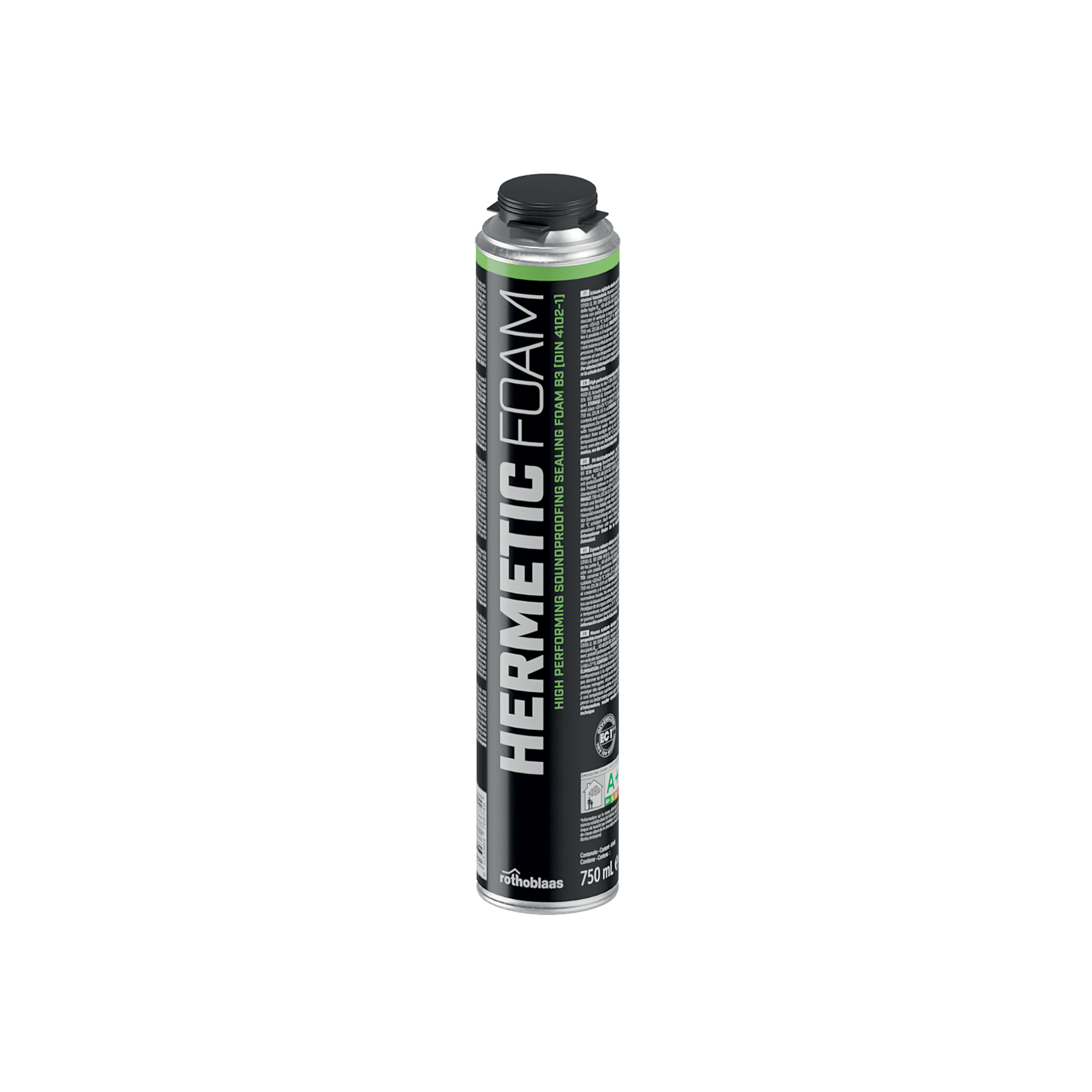

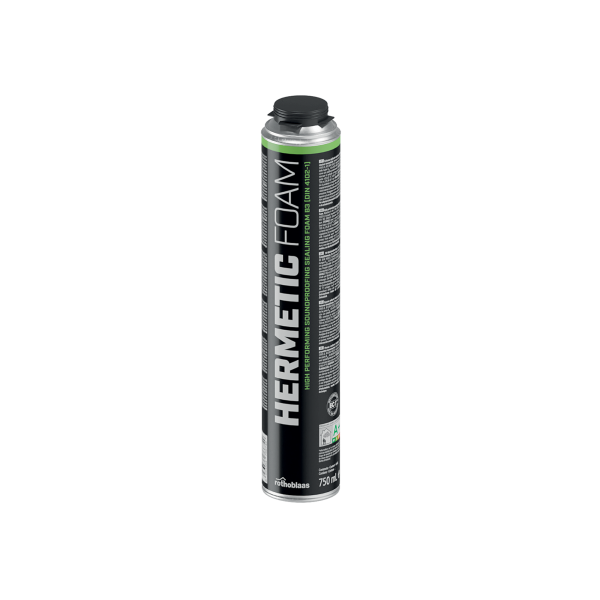

HERMETIC FOAM

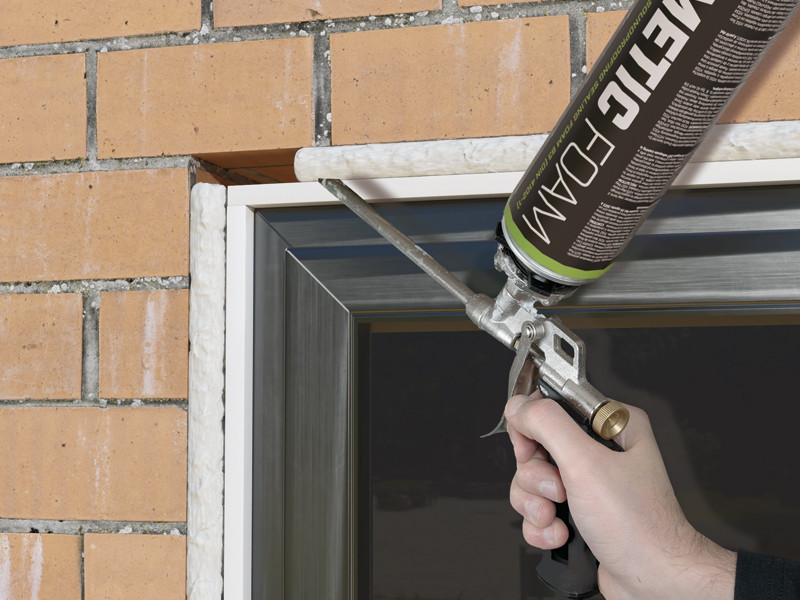

HERMETIC FOAM是单组分隔音泡沫密封胶，保证不同材料之间各种裂缝的气密性。由于特殊的封闭结构，即使在干燥后修剪，仍保持水密和气密。
信任HERMETIC FOAM，高弹性泡沫密封胶，经测试和认证，隔音高达63分贝
HERMETIC FOAM隔音密封泡沫胶提供高达63分贝的隔音性能，由IFT罗森海姆研究所（ISO 10140-1）认证。即使硬化后修剪，由于其封闭的结构，仍能保持防水和气密。
它的低挥发性有机化合物含量和排放量也使得这种密封泡沫非常适合室内使用。由于它的组成，随着时间的推移，能保持弹性和可变形性，补偿木材的运动和建筑材料的形变差异。
文件
技术数据表
|
|
|---|---|
IFT Test reports
|
|
证书 被 EMICODE
|
HERMETIC FOAM
| CODE | content
[ml]
|
yield
[l]
|
content
[US fl oz]
|
yield
[US gal]
|
description | version | pcs. |
|---|---|---|---|---|---|---|---|
| HERFOAM | 750 | 40 | 25.36 | 10.57 | ALUMINIUM CARTRIDGE | GUN | 12 |
| HERFOAMB2 | 750 | 35 | 25.36 | 9.25 | ALUMINIUM CARTRIDGE | GUN | 12 |
技术数据 HERMETIC FOAM
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Yield | - | 40 dm3 | 0 ft3 |
| Tensile strength | FEICA OCF TM 1018 | 0,07 MPa | 10.15266 psi |
| Film formation time 23°C/50 %RH (1) | - | 6 / 10 minutes | - |
| Cutting time 23 °C / 50% RH (1) | - | 20 / 40 minutes | - |
| Time required for complete hardening 23 °C / 50% RH (1) | - | 60 minutes | - |
| Temperature resistance after hardening | - | -40 / 90 °C | -40 / 194 °F |
| Application temperature (ambient, cartridge and support) | - | 5 / 35 °C | 41 / 95 °F |
| Thermal conductivity (λ) | EN 12667 | 0,03 W/(m·K) | 0.02 BTU/(h·ft·°F) |
| Thermal conductivity (λ) | FEICA TM1020 | 0,035 W/(m·K) | 0.02 BTU/(h·ft²·°F) |
| Acoustic insulation of joints RS,w 10 mm | EN ISO 10140-1 EN ISO 10140-2 EN ISO 717-1 | 63 dB | - |
| Acoustic insulation of joints RS,w 20 mm | EN ISO 10140-1 EN ISO 10140-2 EN ISO 717-1 | ≥ 63 dB | - |
| Resistance to penetration of air | EN 12114 | ≤ 0,1 m³/(m²·h·50Pa) | ≤ 0.005 cfm/ft² at 50Pa |
| Water vapour resistance factor (μ) | EN 1931 / EN ISO 12572 | 20 | - |
| Reaction to fire | DIN 4102-1 | class B3 | - |
| Reaction to fire | EN 13501-1 | class F | - |
| Emicode | procedura di prova GEV | EC1 plus | - |
| French VOC classification | ISO 16000 | A+ | - |
| Storage temperature | - | 15 / 25 °C | 59 / 77 °F |
| Transport temperature | - | 0 / 35 °C | 32 / 95 °F |
| Elongation MD/CD | - | > 40 / % | - |
1. The data expressed may vary depending on the thickness of the product applied and the specific installation conditions: temperature, humidity, ventilation, absorbency of the substrate.
