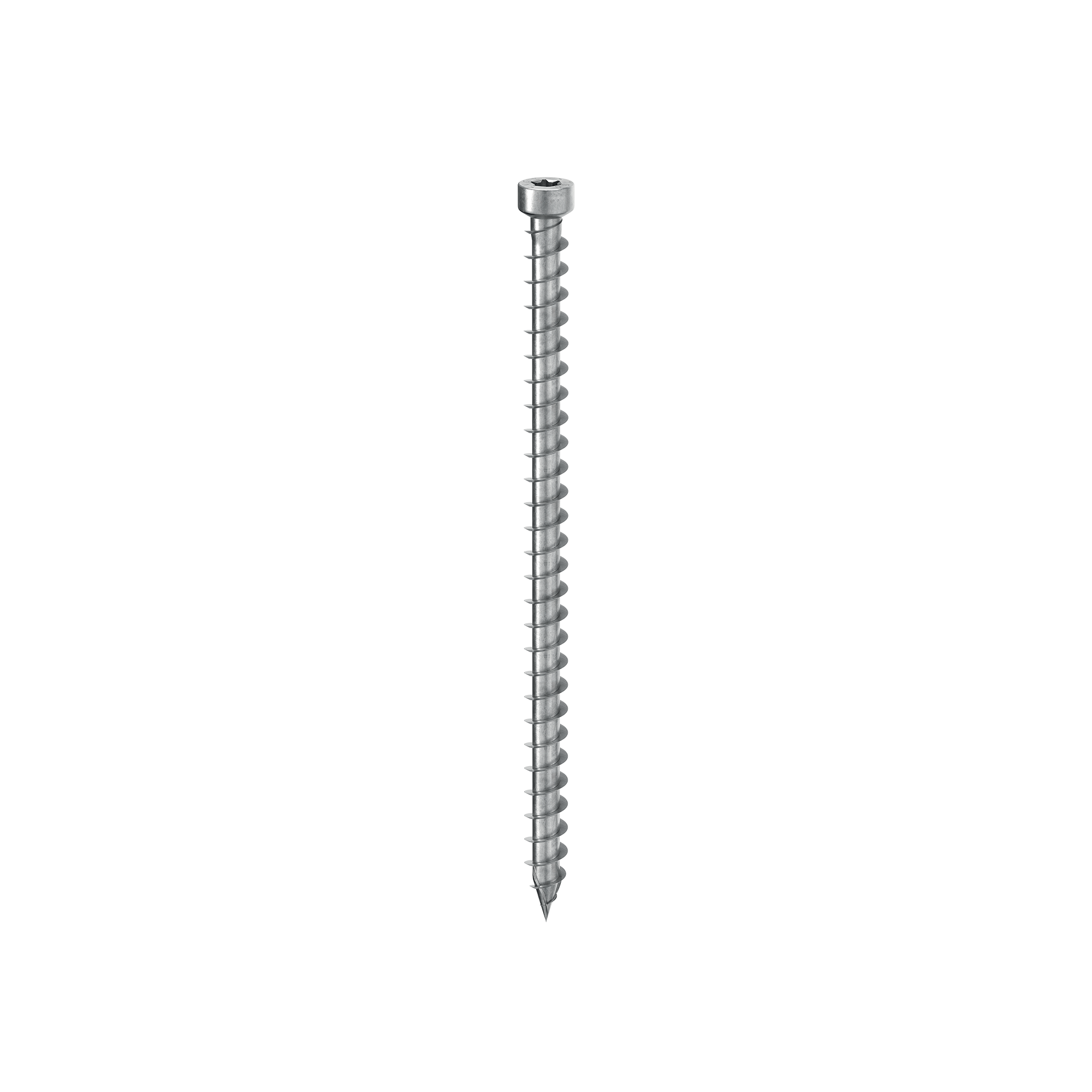

圆柱头全螺纹螺钉
VGZ
全螺纹 VGZ 木螺钉是隐藏式连接、木制材料复合和结构加固的理想选择。它们具有极其广泛的尺寸范围，可确保防火保护和抗震适合性。
视频
VGZ 全螺纹木螺钉：为木结构提供完全可靠性
VGZ 木螺钉的深螺纹和高强度钢（fy,k = 1000 N/mm2）可确保出色的拉伸性能。非常适合在结构修复和新建结构中用于梁的连接。VGZ 木螺钉经批准用于相对于纤维在任何方向上（α= 0°- 90°）受到应力的结构应用。必要的最小固定距离减小。
其数值经过测试、认证和计算，也适用于 CLT 和高密度木材，例如 LVL 单板层积材。完全不含六价铬。符合非常严格的化学物质监管法规（SVHC）。
可提供 REACH 信息。根据 EN 12512 标准进行了 SEISMIC-REV 循环测试。采用镀锌碳钢制成，理想用在木质人造板、实木、胶合木、CLT、LVL 和同类高密度木材上。1
级和 2 级应用。
特点
文件
技术数据表
|
|
|---|---|
导入部最小距离
|
|
技术数据表 JAPAN
|
|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
Item specification
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
VGZ
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| VGZ780 | - | 7 | 80 | 70 | 0.28 | 3 1/8'' | 2 3/4'' | TX30 | 50 |
| VGZ7100 | - | 7 | 100 | 90 | 0.28 | 4'' | 3 1/2'' | TX30 | 50 |
| VGZ7120 | - | 7 | 120 | 110 | 0.28 | 4 3/4'' | 4 3/8'' | TX30 | 50 |
| VGZ7140 | - | 7 | 140 | 130 | 0.28 | 5 1/2'' | 5 1/8'' | TX30 | 50 |
| VGZ7160 | - | 7 | 160 | 150 | 0.28 | 6 1/4'' | 6'' | TX30 | 50 |
| VGZ7180 | - | 7 | 180 | 170 | 0.28 | 7 1/8'' | 6 3/4'' | TX30 | 50 |
| VGZ7200 | 3 THORNS TIP | 7 | 200 | 190 | 0.28 | 8'' | 7 1/2'' | TX30 | 50 |
| VGZ7220 | - | 7 | 220 | 210 | 0.28 | 8 5/8'' | 8 1/4'' | TX30 | 50 |
| VGZ7240 | - | 7 | 240 | 230 | 0.28 | 9 1/2'' | 9 1/16'' | TX30 | 50 |
| VGZ7260 | - | 7 | 260 | 250 | 0.28 | 10 1/4'' | 10'' | TX30 | 50 |
| VGZ7280 | - | 7 | 280 | 270 | 0.28 | 11'' | 10 5/8'' | TX30 | 50 |
| VGZ7300 | - | 7 | 300 | 290 | 0.28 | 11 3/4'' | 11 7/16'' | TX30 | 50 |
| VGZ7320 | - | 7 | 320 | 310 | 0.28 | 12 5/8'' | 12 3/16'' | TX30 | 50 |
| VGZ7340 | - | 7 | 340 | 330 | 0.28 | 13 3/8'' | 13'' | TX30 | 50 |
| VGZ7360 | - | 7 | 360 | 350 | 0.28 | 14 1/4'' | 13 3/4'' | TX30 | 50 |
| VGZ7380 | - | 7 | 380 | 370 | 0.28 | 15'' | 14 9/16'' | TX30 | 50 |
| VGZ7400 | - | 7 | 400 | 390 | 0.28 | 15 3/4'' | 15 3/8'' | TX30 | 50 |
| VGZ9160 | - | 9 | 160 | 150 | 0.36 | 6 1/4'' | 6'' | TX40 | 50 |
| VGZ9180 | - | 9 | 180 | 170 | 0.36 | 7 1/8'' | 6 3/4'' | TX40 | 50 |
| VGZ9200 | - | 9 | 200 | 190 | 0.36 | 8'' | 7 1/2'' | TX40 | 50 |
| VGZ9220 | - | 9 | 220 | 210 | 0.36 | 8 5/8'' | 8 1/4'' | TX40 | 50 |
| VGZ9240 | 3 THORNS TIP | 9 | 240 | 230 | 0.36 | 9 1/2'' | 9 1/16'' | TX40 | 50 |
| VGZ9260 | - | 9 | 260 | 250 | 0.36 | 10 1/4'' | 10'' | TX40 | 50 |
| VGZ9280 | - | 9 | 280 | 270 | 0.36 | 11'' | 10 5/8'' | TX40 | 50 |
| VGZ9300 | - | 9 | 300 | 290 | 0.36 | 11 3/4'' | 11 7/16'' | TX40 | 50 |
| VGZ9320 | - | 9 | 320 | 310 | 0.36 | 12 5/8'' | 12 3/16'' | TX40 | 50 |
| VGZ9340 | - | 9 | 340 | 330 | 0.36 | 13 3/8'' | 13'' | TX40 | 50 |
| VGZ9360 | - | 9 | 360 | 350 | 0.36 | 14 1/4'' | 13 3/4'' | TX40 | 50 |
| VGZ9380 | - | 9 | 380 | 370 | 0.36 | 15'' | 14 9/16'' | TX40 | 50 |
| VGZ9400 | - | 9 | 400 | 390 | 0.36 | 15 3/4'' | 15 3/8'' | TX40 | 50 |
| VGZ9440 | - | 9 | 440 | 430 | 0.36 | 17 1/4'' | 16 15/16'' | TX40 | 25 |
| VGZ9480 | - | 9 | 480 | 470 | 0.36 | 19'' | 18 1/2'' | TX40 | 25 |
| VGZ9520 | - | 9 | 520 | 510 | 0.36 | 20 1/2'' | 20 1/16'' | TX40 | 25 |
| VGZ9560 | 3 THORNS TIP | 9 | 560 | 550 | 0.36 | 22'' | 21 5/8'' | TX40 | 25 |
| VGZ9600 | 3 THORNS TIP | 9 | 600 | 590 | 0.36 | 23 5/8'' | 23 1/4'' | TX40 | 25 |
| VGZ11150 | - | 11 | 150 | 140 | 0.44 | 6'' | 5 1/2'' | TX50 | 25 |
| VGZ11200 | - | 11 | 200 | 190 | 0.44 | 8'' | 7 1/2'' | TX50 | 25 |
| VGZ11250 | - | 11 | 250 | 240 | 0.44 | 10'' | 9 1/2'' | TX50 | 25 |
| VGZ11275 | - | 11 | 275 | 265 | 0.44 | 10 7/8'' | 10 7/16'' | TX50 | 25 |
| VGZ11300 | - | 11 | 300 | 290 | 0.44 | 11 3/4'' | 11 7/16'' | TX50 | 25 |
| VGZ11325 | - | 11 | 325 | 315 | 0.44 | 12 3/4'' | 12 3/8'' | TX50 | 25 |
| VGZ11350 | - | 11 | 350 | 340 | 0.44 | 13 3/4'' | 13 3/8'' | TX50 | 25 |
| VGZ11375 | - | 11 | 375 | 365 | 0.44 | 14 3/4'' | 14 3/8'' | TX50 | 25 |
| VGZ11400 | - | 11 | 400 | 390 | 0.44 | 15 3/4'' | 15 3/8'' | TX50 | 25 |
| VGZ11425 | - | 11 | 425 | 415 | 0.44 | 16 3/4'' | 16 5/16'' | TX50 | 25 |
| VGZ11450 | - | 11 | 450 | 440 | 0.44 | 17 3/4'' | 17 1/4'' | TX50 | 25 |
| VGZ11475 | - | 11 | 475 | 465 | 0.44 | 18 11/16'' | 18 5/16'' | TX50 | 25 |
| VGZ11500 | - | 11 | 500 | 490 | 0.44 | 19 3/4'' | 19 5/16'' | TX50 | 25 |
| VGZ11525 | - | 11 | 525 | 515 | 0.44 | 20 11/16'' | 20 1/4'' | TX50 | 25 |
| VGZ11550 | - | 11 | 550 | 540 | 0.44 | 21 5/8'' | 21 1/4'' | TX50 | 25 |
| VGZ11575 | - | 11 | 575 | 565 | 0.44 | 22 5/8'' | 22 1/4'' | TX50 | 25 |
| VGZ11600 | - | 11 | 600 | 590 | 0.44 | 23 5/8'' | 23 1/4'' | TX50 | 25 |
| VGZ11650 | SELF-DRILLING TIP | 11 | 650 | 640 | 0.44 | 25 9/16'' | 25 3/16'' | TX50 | 25 |
| VGZ11700 | SELF-DRILLING TIP | 11 | 700 | 690 | 0.44 | 27 1/2'' | 27 3/16'' | TX50 | 25 |
| VGZ11750 | SELF-DRILLING TIP | 11 | 750 | 740 | 0.44 | 29 1/2'' | 29 1/8'' | TX50 | 25 |
| VGZ11800 | SELF-DRILLING TIP | 11 | 800 | 790 | 0.44 | 31 1/2'' | 31 1/8'' | TX50 | 25 |
| VGZ11850 | SELF-DRILLING TIP | 11 | 850 | 840 | 0.44 | 33 7/16'' | 33 1/16'' | TX50 | 25 |
| VGZ11900 | SELF-DRILLING TIP | 11 | 900 | 890 | 0.44 | 35 1/2'' | 35 1/16'' | TX50 | 25 |
| VGZ11950 | SELF-DRILLING TIP | 11 | 950 | 940 | 0.44 | 37 3/8'' | 37'' | TX50 | 25 |
| VGZ111000 | SELF-DRILLING TIP | 11 | 1000 | 990 | 0.44 | 39 3/8'' | 39'' | TX50 | 25 |
