FIELDS OF USE

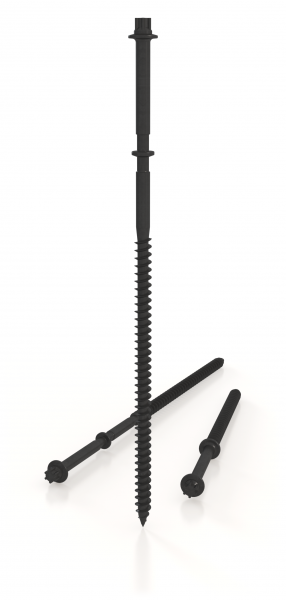

Screw connection system for wood-concrete floors, approved for solid wood, glulam, X-Lam, LVL, and wood-based panels. Service classes 1 and 2.
The connectors placed at 45° in an “X” configuration make it possible to obtain perfect coupling and excellent static performance between the concrete slab and the wood beams.
The connectors are installed with a simple screwdriver, without any pre-bored holes and without interrupting the wooden planking. Installation is extremely fast (between 200 and 300 connectors an hour, on average).
The reduced diameter of the connector (7.5mm) and the dry installation (reversible) make the system minimally invasive and hence ideal for structural recovery and restoration.
- Rigid ”knee“ joint with double internal plate;
- Floor slab on X-Lam panel;
- Alternative placement near the walls for structural recovery.
