描述
木螺钉多种多样，各有不同。对于小尺寸木材的加工，SHS 是您的可靠选择

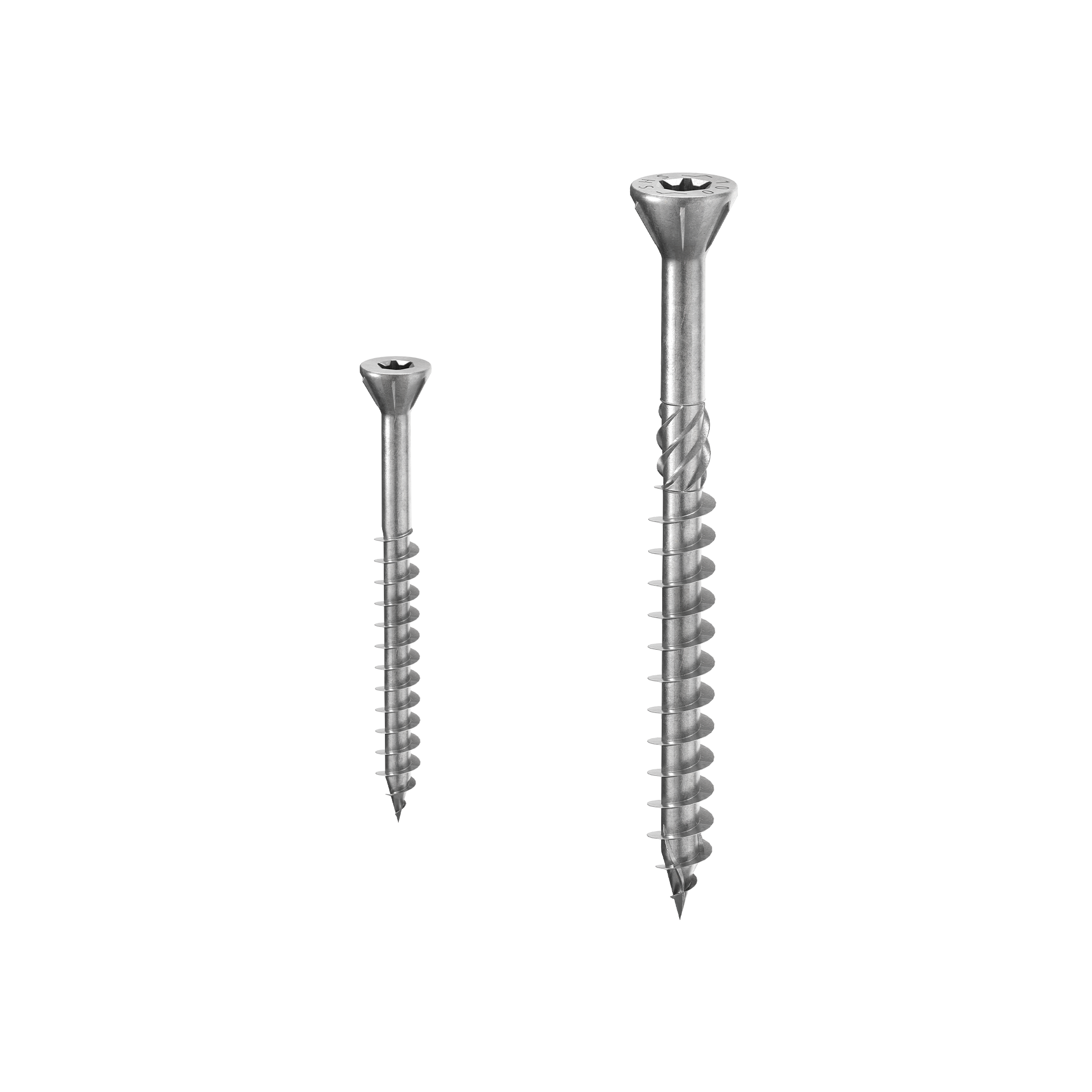

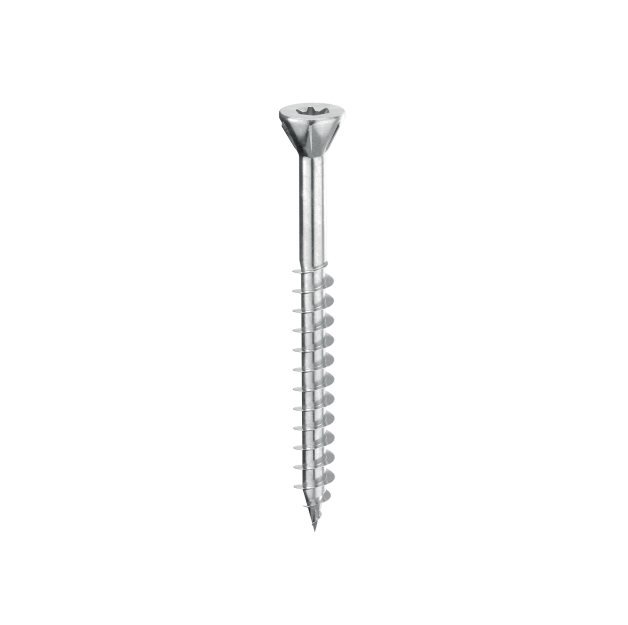

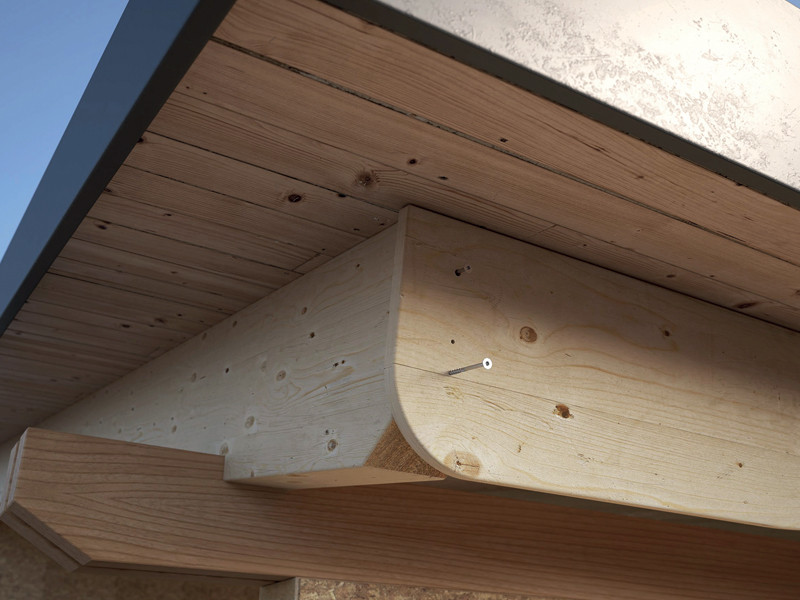

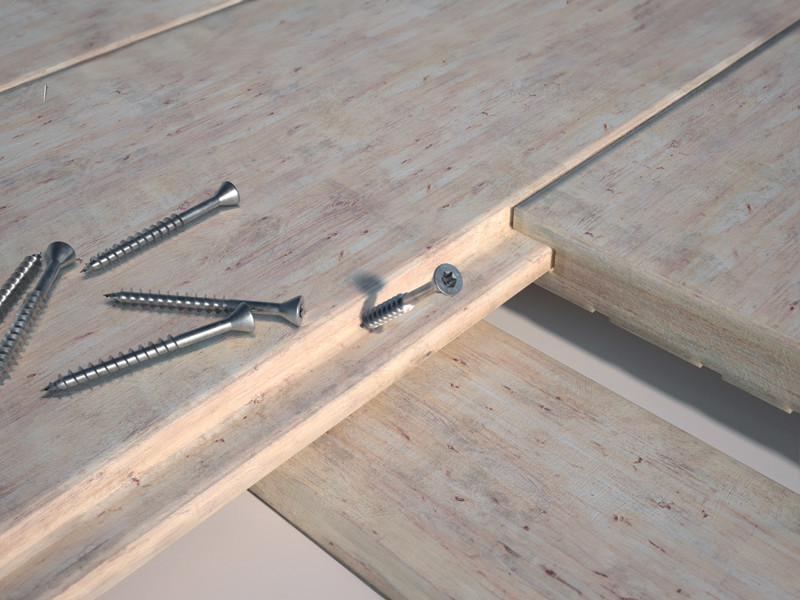

SHS 隐形头螺钉非常适合刻纹板、檩条和类似小件材料的固定。
采用镀锌碳钢制成，保证持久耐用。
文件
-
技术数据表
-
导入部最小距离
-
ETA Certificate
-
File CAD
SHS Ø3,5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SHS3530 | - | 3.5 | 30 | 20 | 0.14 | 1 3/16'' | 13/16'' | TX10 | 500 |
| SHS3540 | - | 3.5 | 40 | 26 | 0.14 | 1 9/16'' | 1 1/32'' | TX10 | 500 |
| SHS3550 | - | 3.5 | 50 | 34 | 0.14 | 1 15/16'' | 1 5/16'' | TX10 | 500 |
| SHS3560 | - | 3.5 | 60 | 40 | 0.14 | 2 3/8'' | 1 9/16'' | TX10 | 500 |
SHS Ø4 - Ø4,5 - Ø5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| SHS440 | - | 4 | 40 | 24 | 0.16 | 1 9/16'' | 15/16'' | TX25 | 500 | |
| SHS450 | - | 4 | 50 | 30 | 0.16 | 1 15/16'' | 1 3/16'' | TX25 | 400 | |
| SHS460 | - | 4 | 60 | 35 | 0.16 | 2 3/8'' | 1 3/8'' | TX25 | 200 | |
| SHS470 | - | 4 | 70 | 40 | 0.16 | 2 3/4'' | 1 9/16'' | TX25 | 200 | |
| SHS4550 | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX25 | 200 | |
| SHS4560 | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX25 | 200 | |
| SHS4570 | - | 4.5 | 70 | 40 | 0.18 | 2 3/4'' | 1 9/16'' | TX25 | 200 | |
| SHS550 | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX30 | 200 | |
| SHS560 | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX30 | 200 | |
| SHS570 | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX30 | 200 | |
| SHS580 | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX30 | 200 | |
| SHS590 | - | 5 | 90 | 45 | 0.2 | 3 1/2'' | 1 3/4'' | TX30 | 200 | |
| SHS5100 | - | 5 | 100 | 50 | 0.2 | 4'' | 1 15/16'' | TX30 | 200 | |
| SHS5120 | - | 5 | 120 | 60 | 0.2 | 4 3/4'' | 2 3/8'' | TX30 | 200 |
