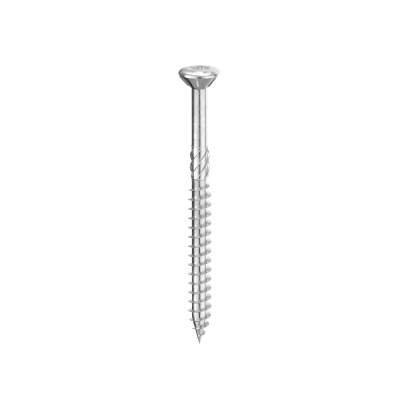

EWS AISI410
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| EWS550 | - | 5 | 50 | 30 | 0.2 | 1 15/16'' | 1 3/16'' | TX25 | 200 |
| EWS560 | - | 5 | 60 | 36 | 0.2 | 2 3/8'' | 1 7/16'' | TX25 | 200 |
| EWS570 | - | 5 | 70 | 42 | 0.2 | 2 3/4'' | 1 5/8'' | TX25 | 100 |
| EWS580 | - | 5 | 80 | 48 | 0.2 | 3 1/8'' | 1 7/8'' | TX25 | 100 |

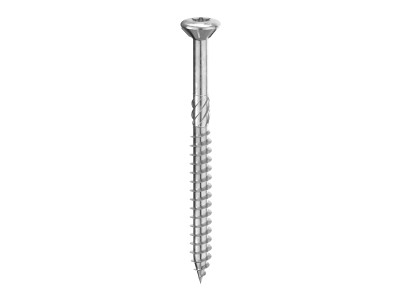

EWS A2 | AISI305
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| EWSA2550 | - | 5 | 50 | 30 | 0.2 | 1 15/16'' | 1 3/16'' | TX25 | 200 |
| EWSA2560 | - | 5 | 60 | 36 | 0.2 | 2 3/8'' | 1 7/16'' | TX25 | 200 |
| EWSA2570 | - | 5 | 70 | 42 | 0.2 | 2 3/4'' | 1 5/8'' | TX25 | 100 |
