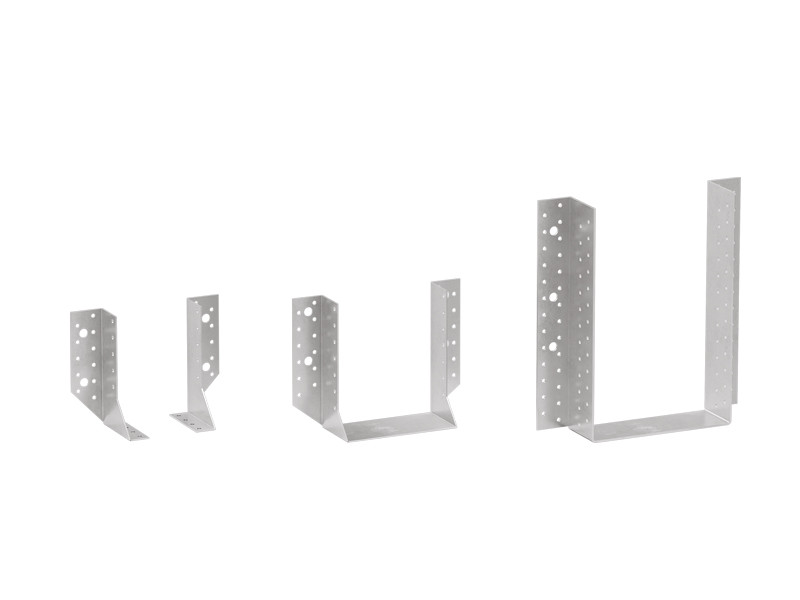

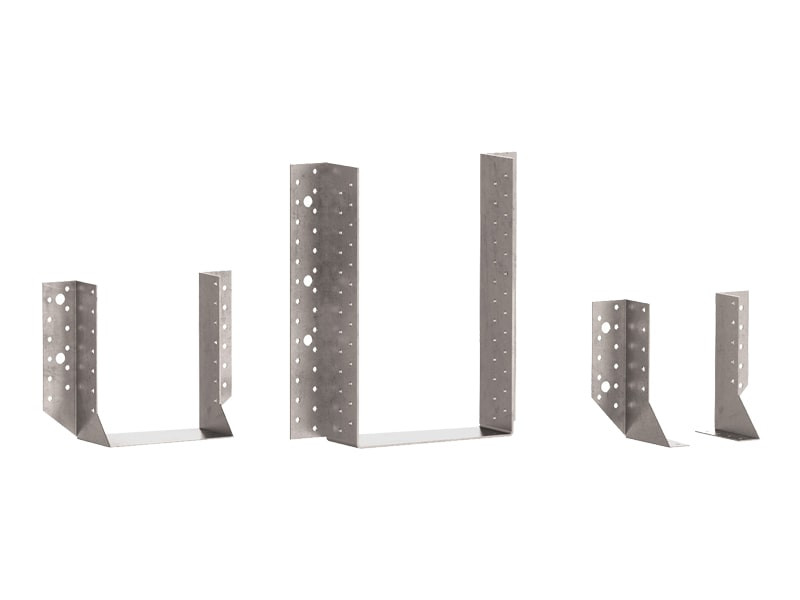

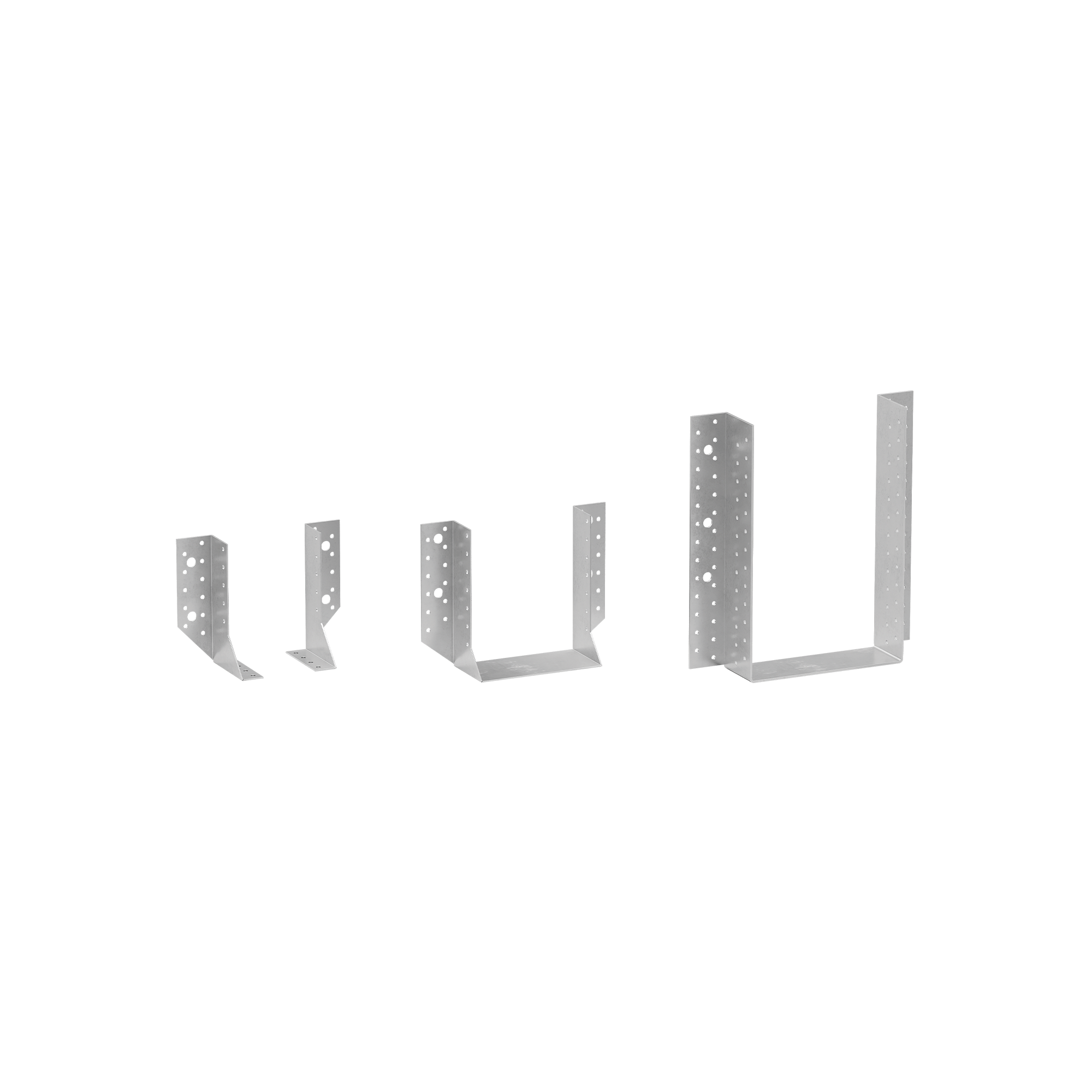

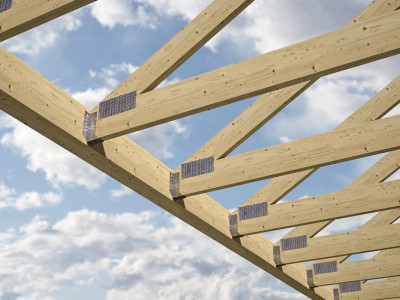

带外翼缘的金属梁托

BSA

文件

技术数据表
Declaration of performance (DOP)
ETA Certificate
Item specification
FILE CAD

BSAS - SMOOTH

CODE B
[mm]
H
[mm]
s
[mm]
pcs.
BSAS40110 40 110 2 50
BSAS46117 46 117 2 50
BSAS46137 46 137 2 50
BSAS46207 46 207 2 25
BSAS5070 50 70 2 50
BSAS51105 51 105 2 50
BSAS51135 51 135 2 50
BSAS60100 60 100 2 50
BSAS64128 64 128 2 50
BSAS64158 64 158 2 50
BSAS70125 70 125 2 50
BSAS70155 70 155 2 50
BSAS7690 76 90 2 25
BSAS76152 76 152 2 50
BSAS80120 80 120 2 50
BSAS80140 80 140 2 50
BSAS80150 80 150 2 50
BSAS80180 80 180 2 25
BSAS80210 80 210 2 25
BSAS90145 90 145 2 50
BSAS92184 92 184 2 25
BSAS10090 100 90 2 50
BSAS100120 100 120 2 50
BSAS100140 100 140 2 50
BSAS100160 100 160 2 50
BSAS100170 100 170 2 25
BSAS100200 100 200 2 25
BSAS120120 120 120 2 25
BSAS120160 120 160 2 50
BSAS120190 120 190 2 25
BSAS140140 140 139 2 25
BSAS140160 140 160 2 25
BSAS140180 140 180 2 25

BSAD - 2 PIECES

CODE B
[mm]
H
[mm]
s
[mm]
pcs.
BSAD25100 25 100 2 25
BSAD25140 25 140 2 25
BSAD25180 25 180 2 25

BSAG - LARGE SIZE

CODE B
[mm]
H
[mm]
s
[mm]
pcs.
BSAG100240 100 240 2.5 20
BSAG100280 100 280 2.5 20
BSAG120240 120 240 2.5 20
BSAG120280 120 280 2.5 20
BSAG140240 140 240 2.5 20
BSAG140280 140 280 2.5 20
BSAG160160 160 160 2.5 15
BSAG160200 160 200 2.5 15
BSAG160240 160 240 2.5 15
BSAG160280 160 280 2.5 15
BSAG160320 160 320 2.5 15
BSAG180220 180 220 2.5 10
BSAG180280 180 280 2.5 10
BSAG200200 200 200 2.5 10
BSAG200240 200 240 2.5 10
