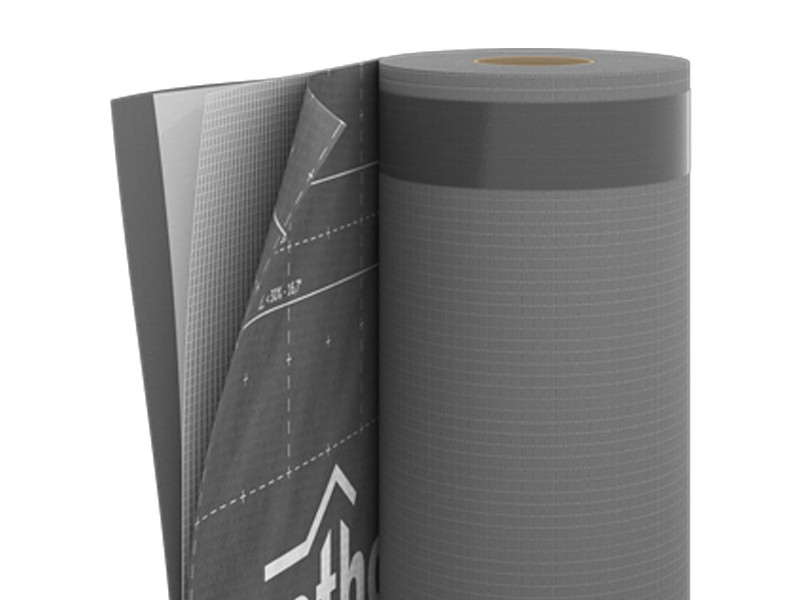

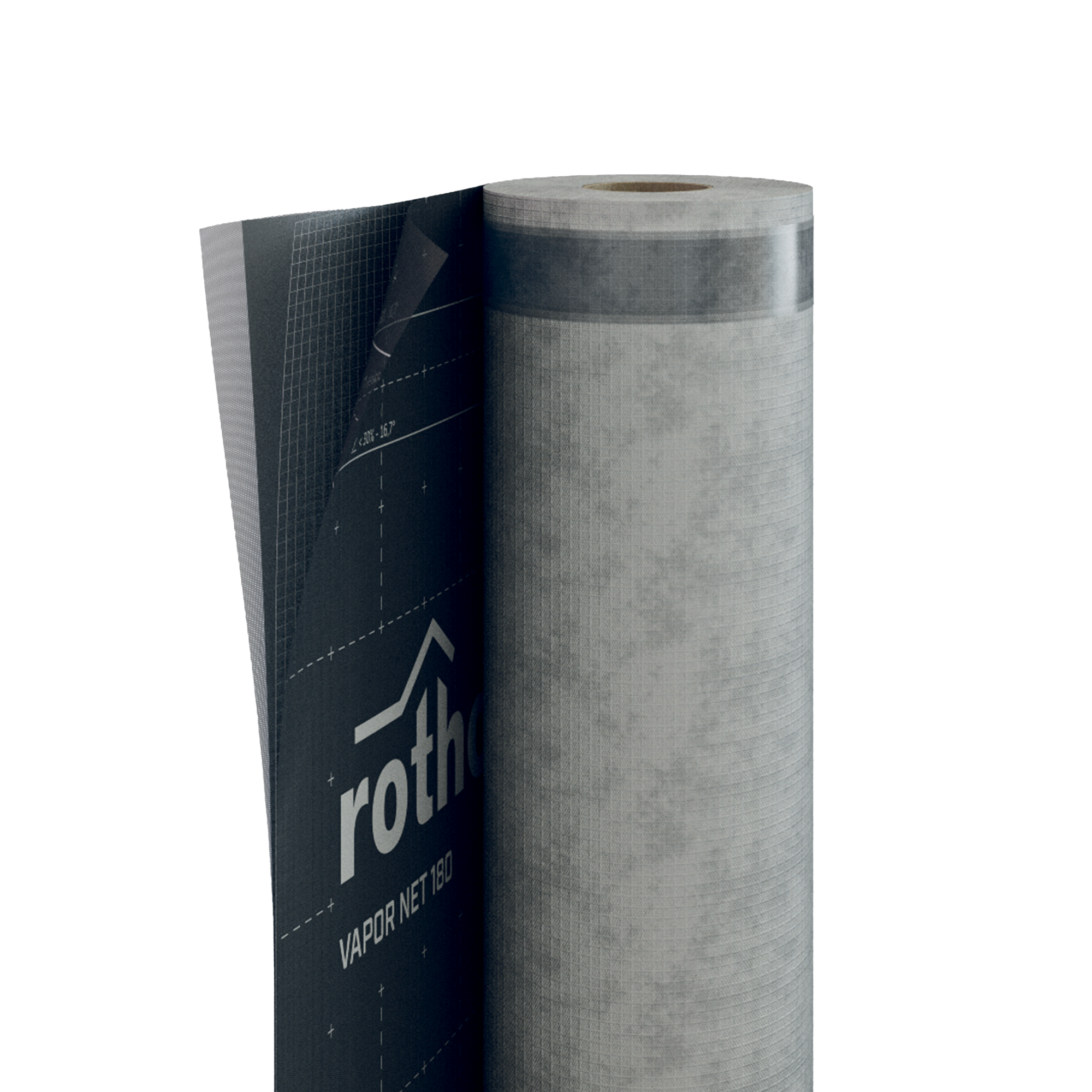

VAPOR NET 180
带加强网格的蒸汽控制膜
描述
VAPOR NET 180，高抗蒸汽屏障
施工期间的机械强度和保护由加强网保证。TT版本集成双胶带，确保快速安装和专业密封。由于其成分，VAPOR NET 180蒸汽控制膜可抵抗U型钉、普通钉和行走引起的机械应力。
VAPOR NET 180
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| V180 | VAPOR NET 180 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 36 |
| VTT180 | VAPOR NET 180 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 36 |
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 180 g/m² | 0.59 oz/ft² |
| Thickness | EN 1849-2 | 0,6 mm | 24 mil |
| Water vapour transmission (Sd) | EN 1931 | 10 m | 0.35 US perm |
| Tensile strength MD/CD | EN 12311-2 | 320 / 300 N/50mm | 37 / 34 lbf/in |
| Elongation MD/CD | EN 12311-2 | 10 / 10 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 250 / 290 N | 56 / 65 lbf |
| Watertightness | EN 1928 | compliant | - |
| Resistance to temperature | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Resistenza al vapore d'acqua dopo invecchiamento artificiale | EN 1296 / EN 1931 | compliant | - |
| Alkaline water vapour resistance | EN 1847 / EN 12311-2 | npd | - |
| Thermal conductivity (λ) | - | 0,4 W/(m·K) | 0.23 BTU/(h·ft·°F) |
| Specific heat | - | 1700 J/(kg·K) | - |
| Density | - | ca. 300 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 16700 | - |
| UV stability | - | 336h (3 months) | - |
| VOC | - | - | - |
成分
| TOP LAYER | non-woven PP fabric |
|---|---|
| middle layer | PE functional film |
| REINFORCING LAYER | reinforcing PP grid |
| BOTTOM LAYER | non-woven PP fabric |
