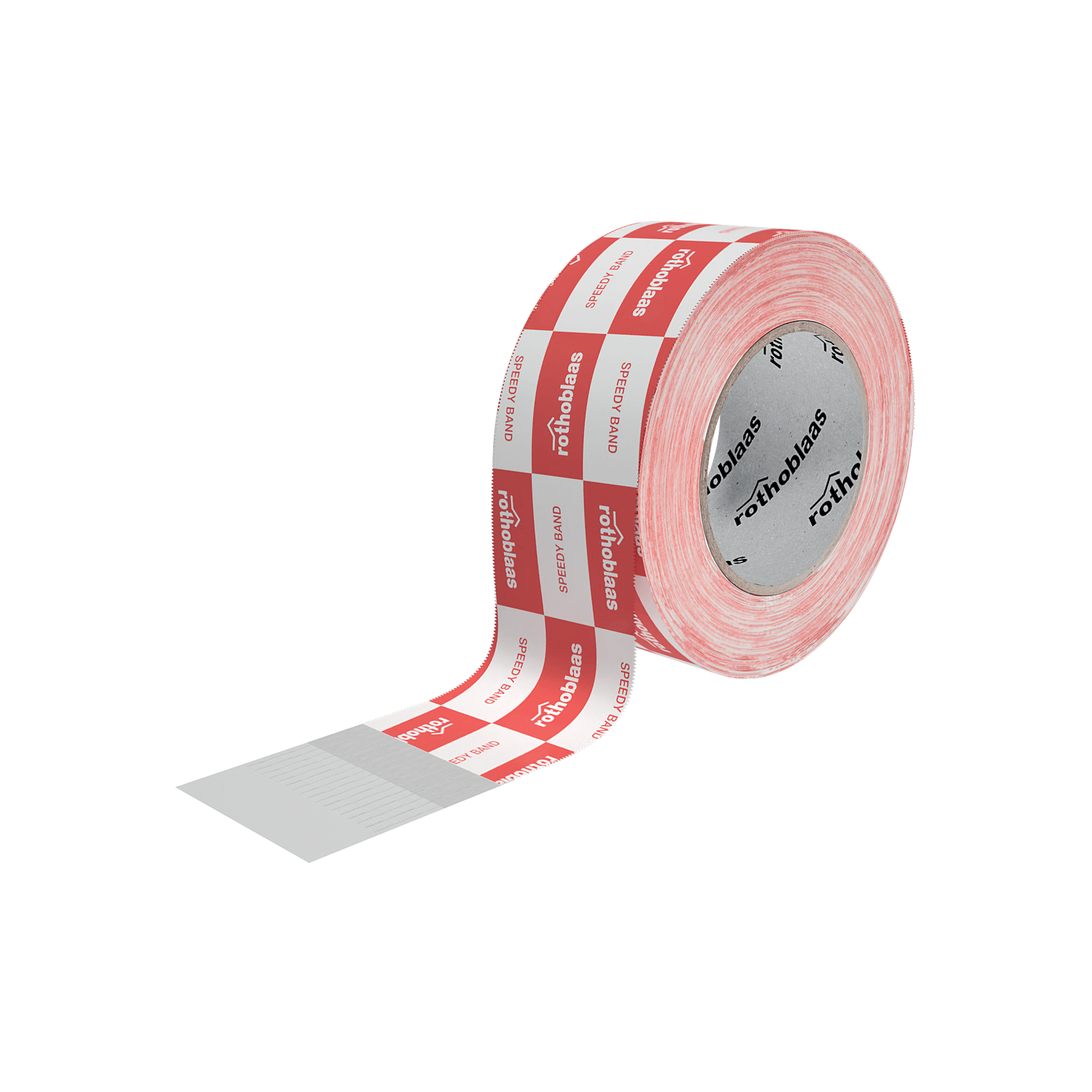

没有离型纸的通用单面胶带

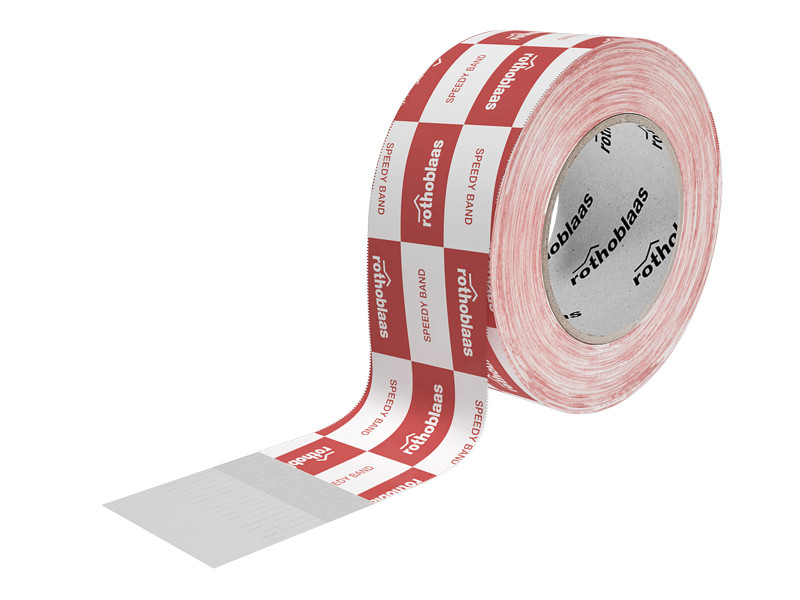

SPEEDY BAND

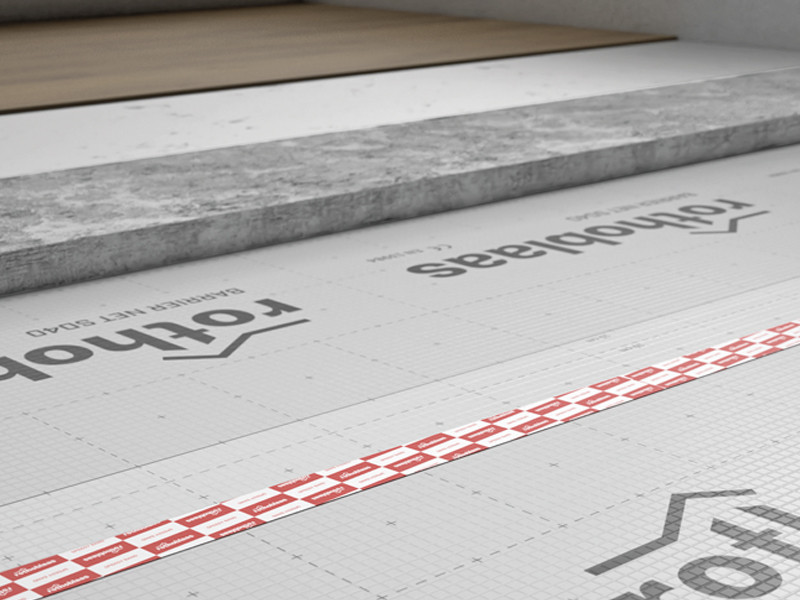

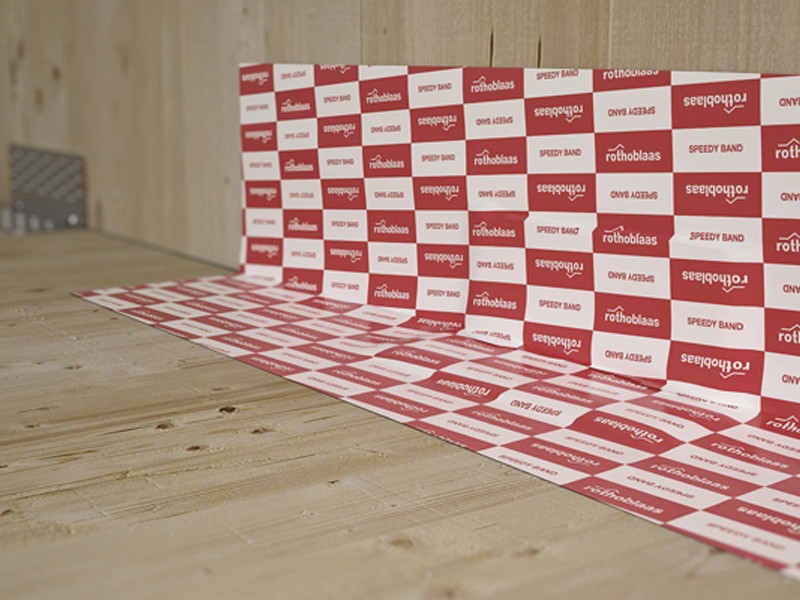

SPEEDY BAND通用胶带可以方便地应用于内外的建筑围护结构，在多种最常见的基面上提供了快速和安全的密封。无离型纸可确保更快的安装和更少的废物处理，节省时间和资源。
SPEEDY BAND，无离型纸的通用胶带，减少了安装时间
快速带通用胶带没有释放班轮可以很容易地撕掉由于锯齿状的边缘，方便定向断裂，而无需使用剪刀或刀具。它是罗氏产品之一，由被动研究所作为气密认证组件测试。
文件
技术数据表
|
|
|---|---|
证书 被动房
|
|
File BIM.rfa
|
|
Fire test report
|
SPEEDY BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|

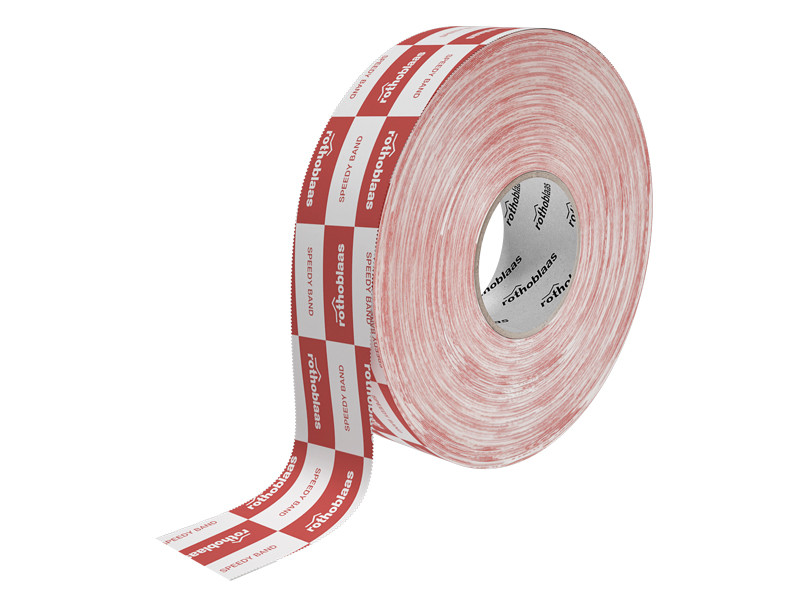

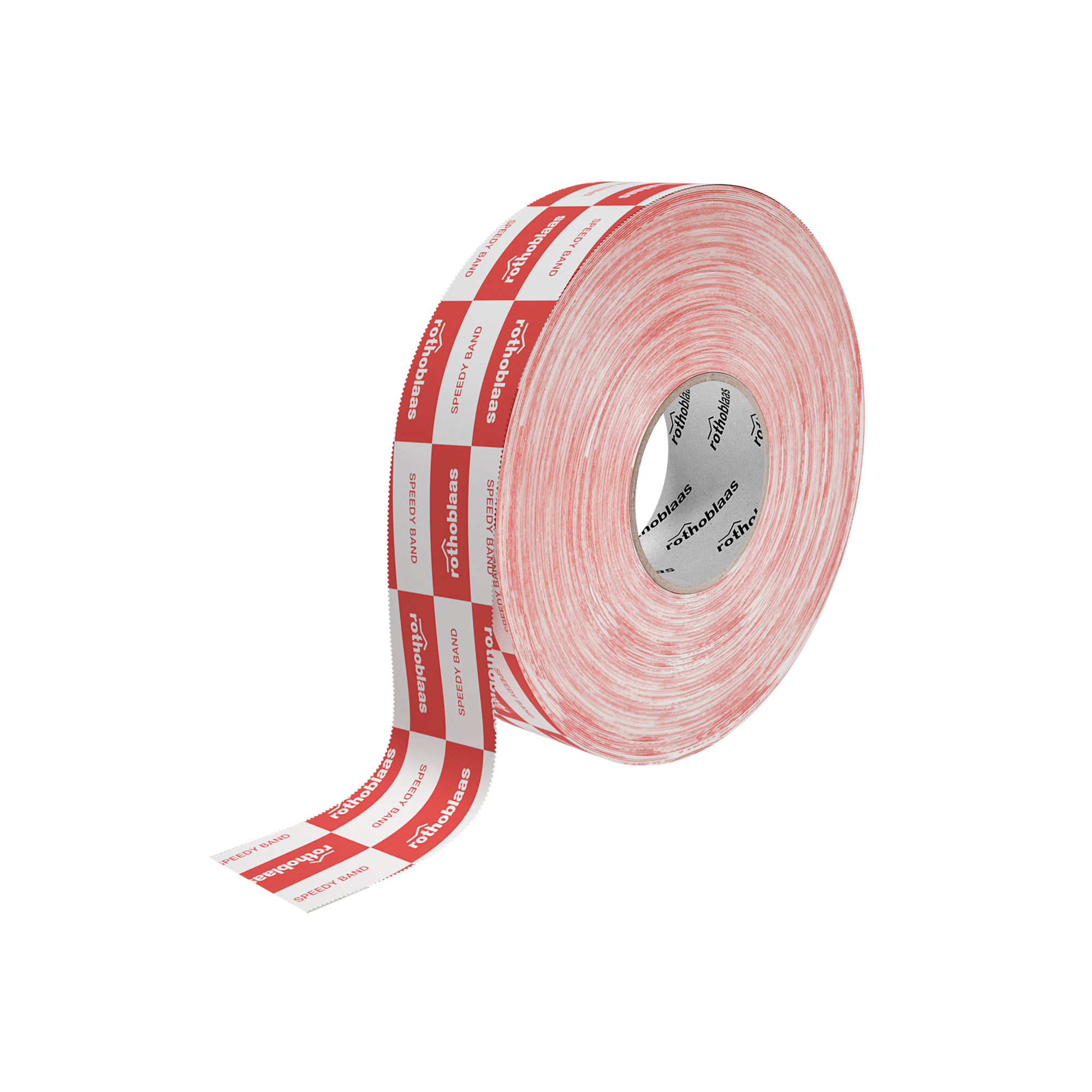

| SPEEDY50XL | 50 | 50 | 2 | 164 | 12 |

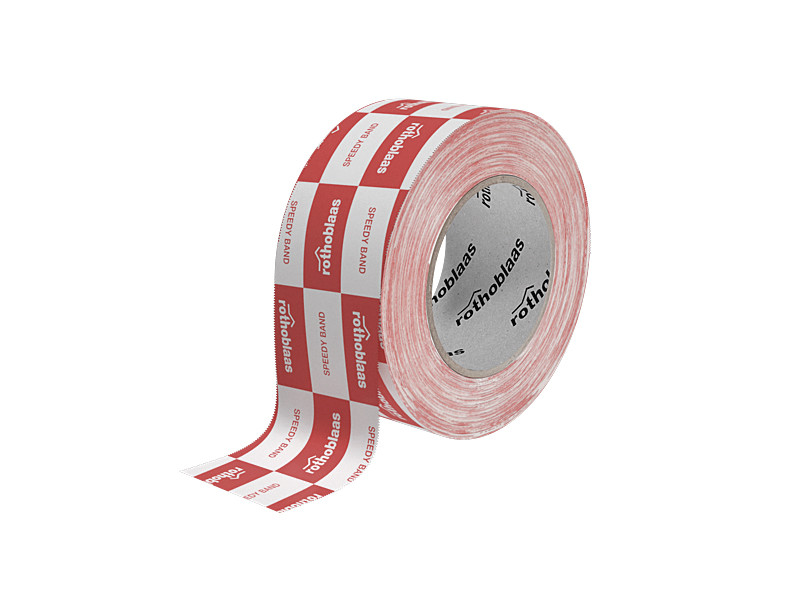

| SPEEDY60 | 60 | 25 | 2.4 | 82 | 10 |

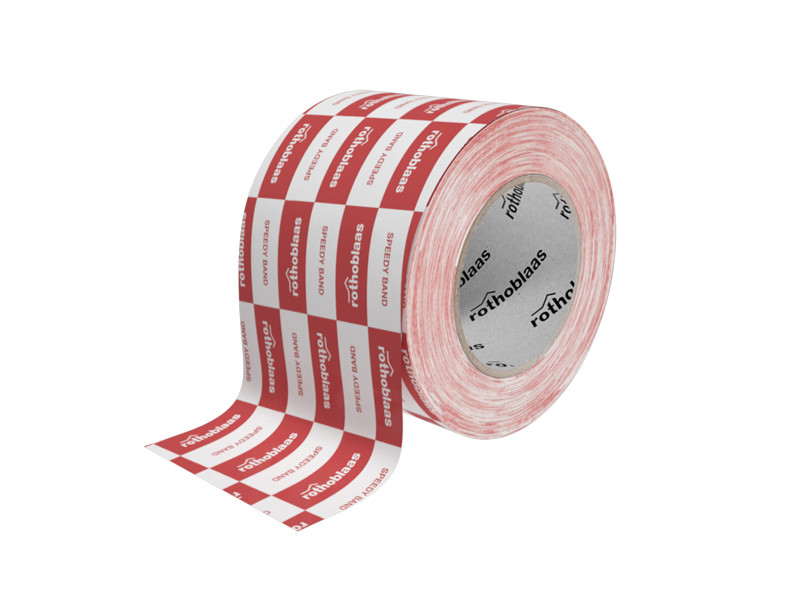

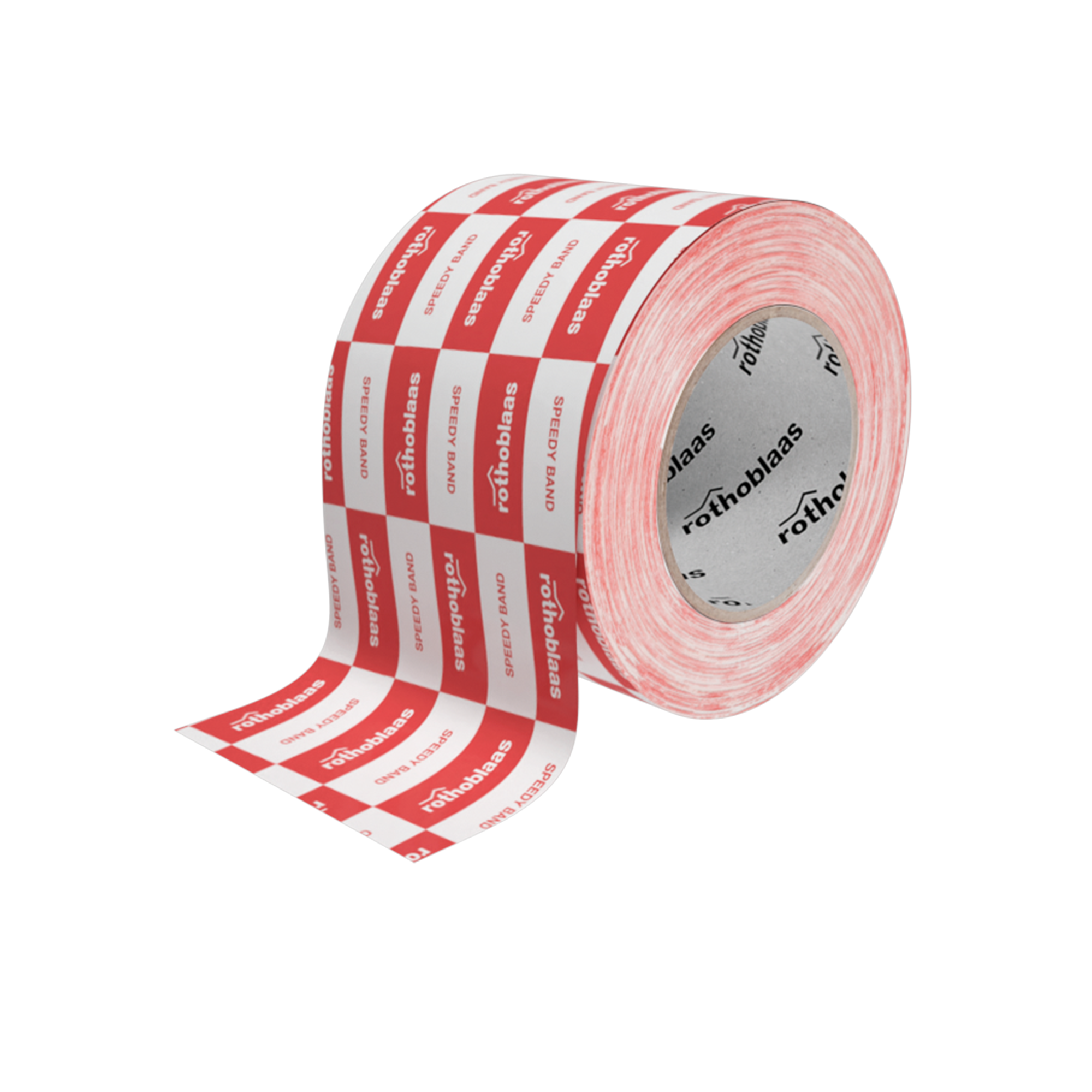

| SPEEDY100 | 100 | 25 | 3.9 | 82 | 6 |

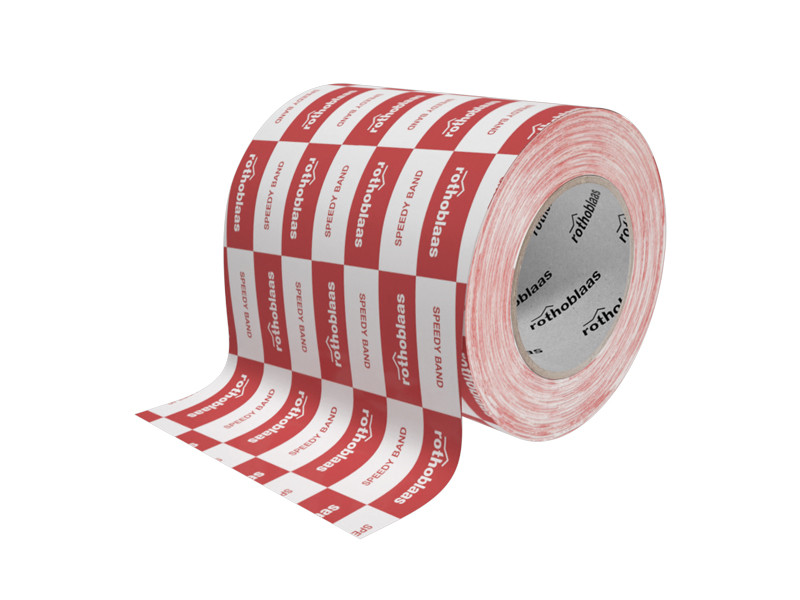

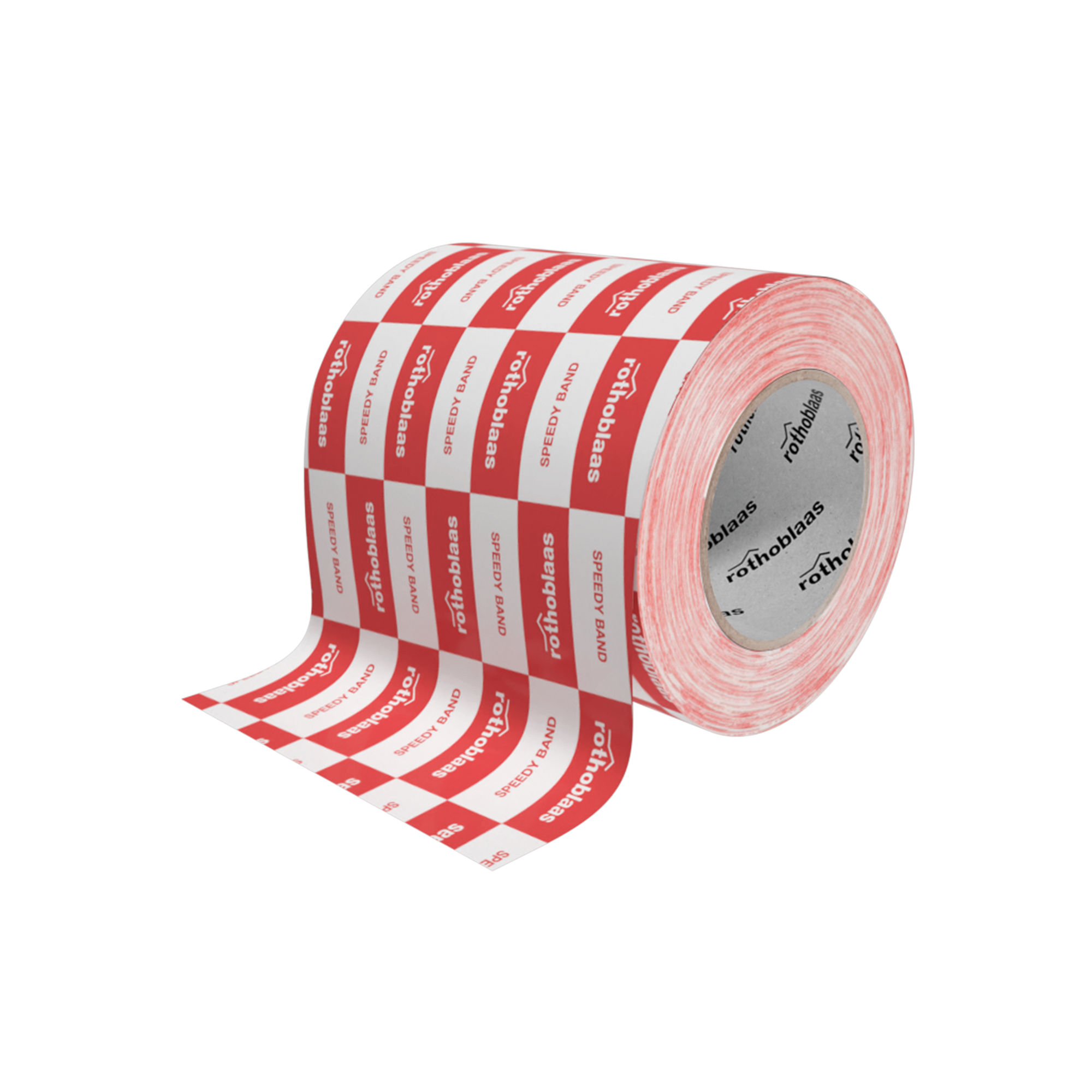

| SPEEDY150 | 150 | 25 | 5.9 | 82 | 4 |

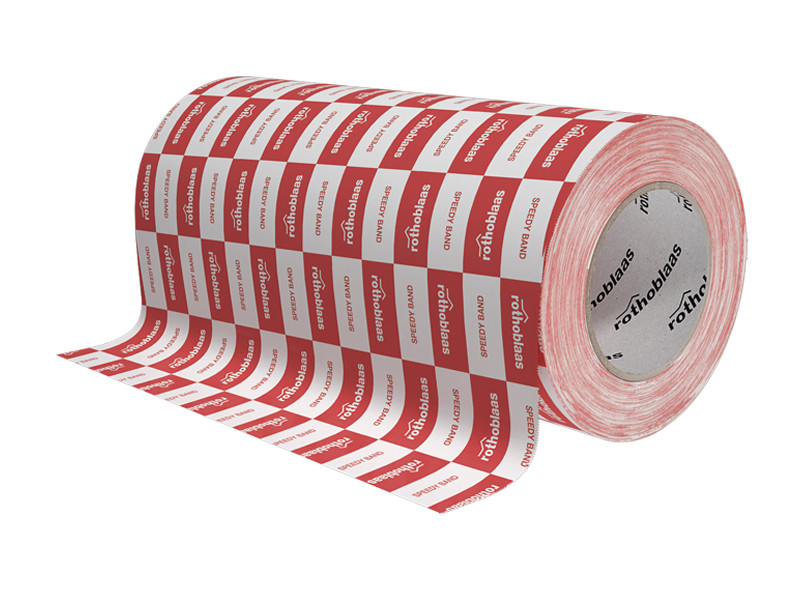

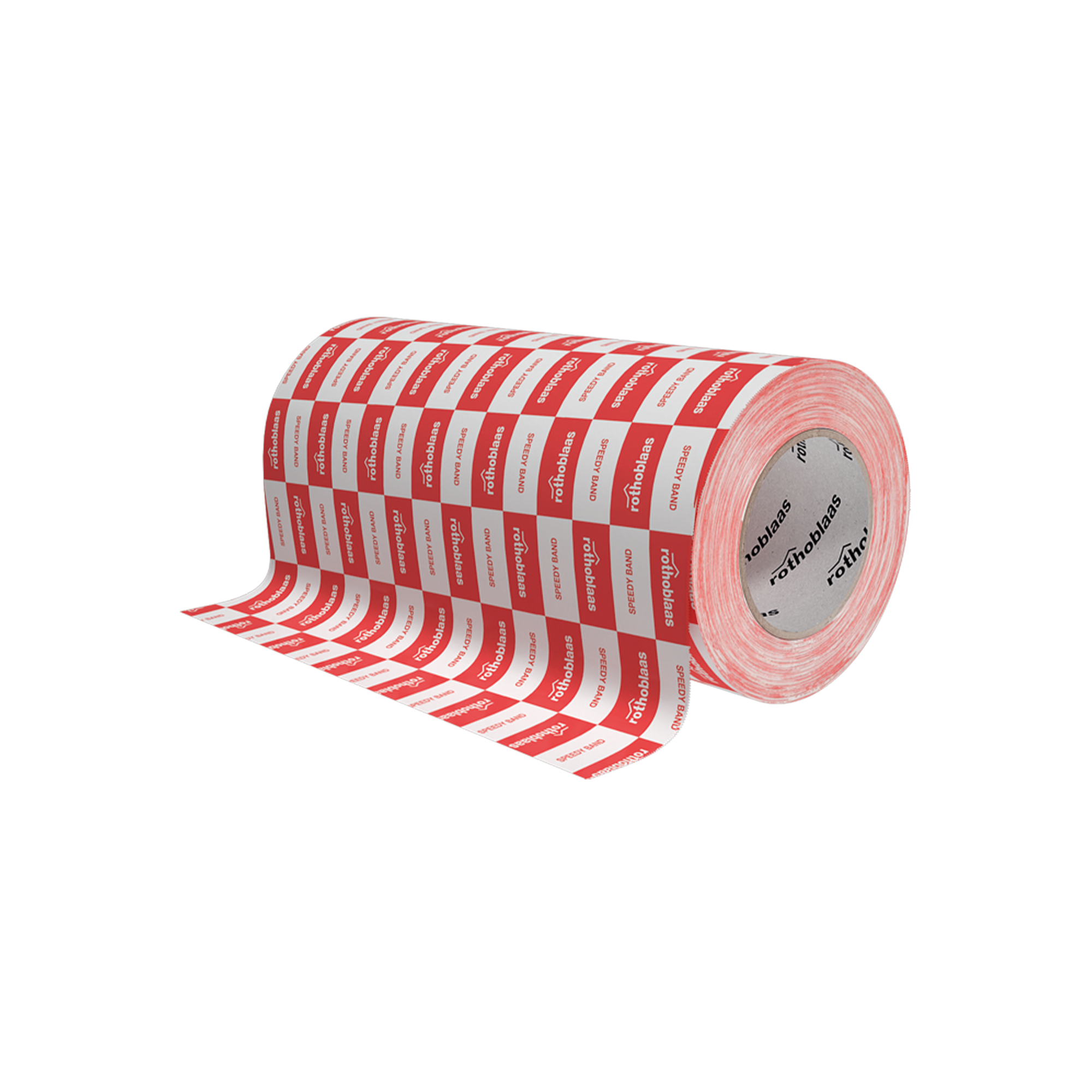

| SPEEDY300 | 300 | 25 | 11.8 | 82 | 2 |
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Thickness | AFERA 5006 | 0,25 mm | 9.8 mil |
| Adhesion strength on steel at 90° | AFERA 5001 | ≥ 25 N/25mm | ≥ 5.71 lbf/in |
| Resistenza a trazione del giunto | EN 12317-2 | ≥ 90 N/50mm | ≥ 10.28 lbf/in |
| UV resistance | - | 6 months | - |
| Watertightness | - | compliant | - |
| Solvents | - | no | - |
| Resistance to temperature | - | 40 / 80 °C | 104 / 176 °F |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 11 N/10mm | 6.3 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 4,8 N/10mm | 2.7 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 26 N/50mm | 3 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1) | EN 12317-2 | 120 N/50mm | 13.7 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 40 m | 0.087 US perm |
| Exposure to weather | - | 12 month | - |
| Classe di resistenza al fuoco su giunto in CLT * (2) | en 1366-4 | EI90 | - |
| French VOC classification | ISO 16000 | A+ | - |
1.
2.
成分
| SUPPORT | PE film |
|---|---|
| GLUE | solvent-free UV-crosslinked acrylic |
| REINFORCING LAYER | polyester reinforcing grid |
| GLUE | solvent-free UV-crosslinked acrylic |
