SMART BAND

有离型纸的通用单面胶带

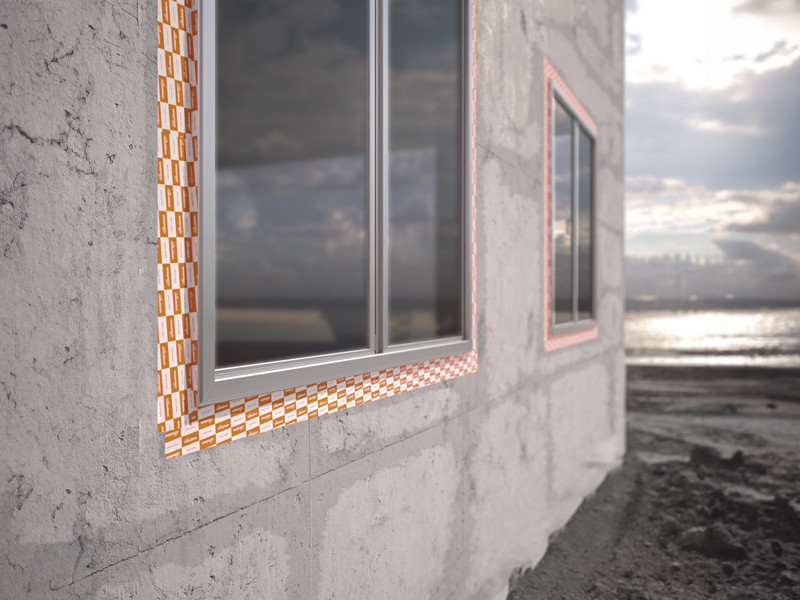

带离型纸的SMART BAND通用胶带满足所有要求，可归类为密封外部门窗的胶带，确保即使在滞水的情况下也能达到最大的安全性。用途极其广泛。

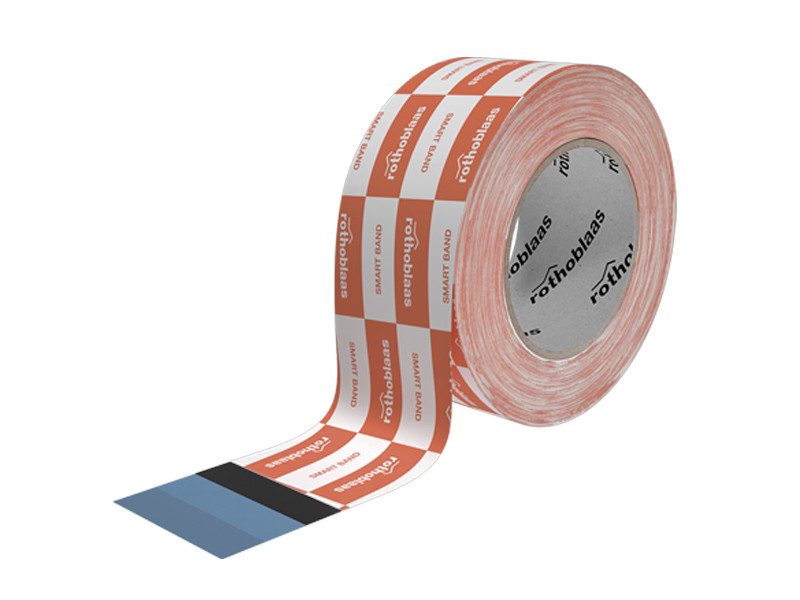

SMART BAND，有易撕离型纸的高度可变形的通用胶带

SMART BAND通用单面胶带具有独特的离型纸，经过特殊处理，可在任何位置进行分离，无需预切割，从而适应任何安装要求。由于其高可塑性，支撑的特殊成分使胶带特别耐撕裂和耐应力。由于易于拆分的离型纸，意味着可以存储少量尺寸，以满足任何施工要求。

CODE	B [mm]	L [m]	B [in]	L [ft]	pcs.

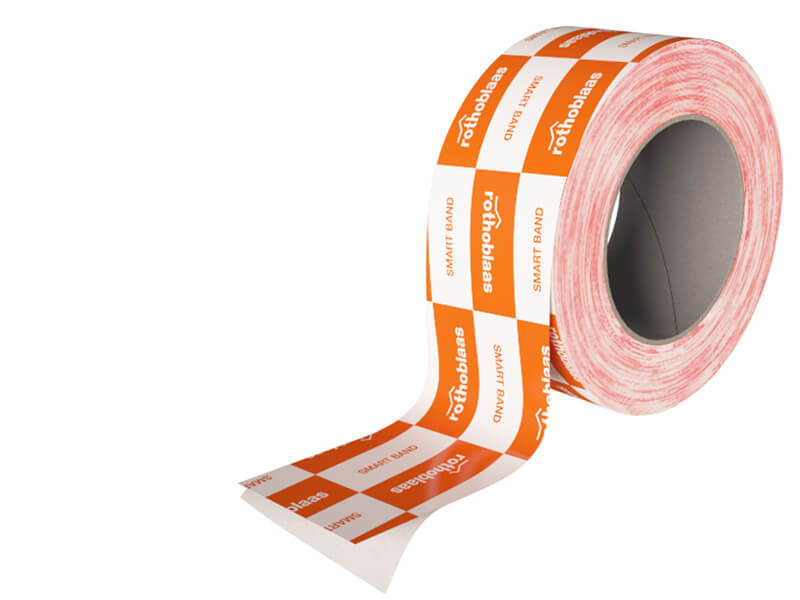

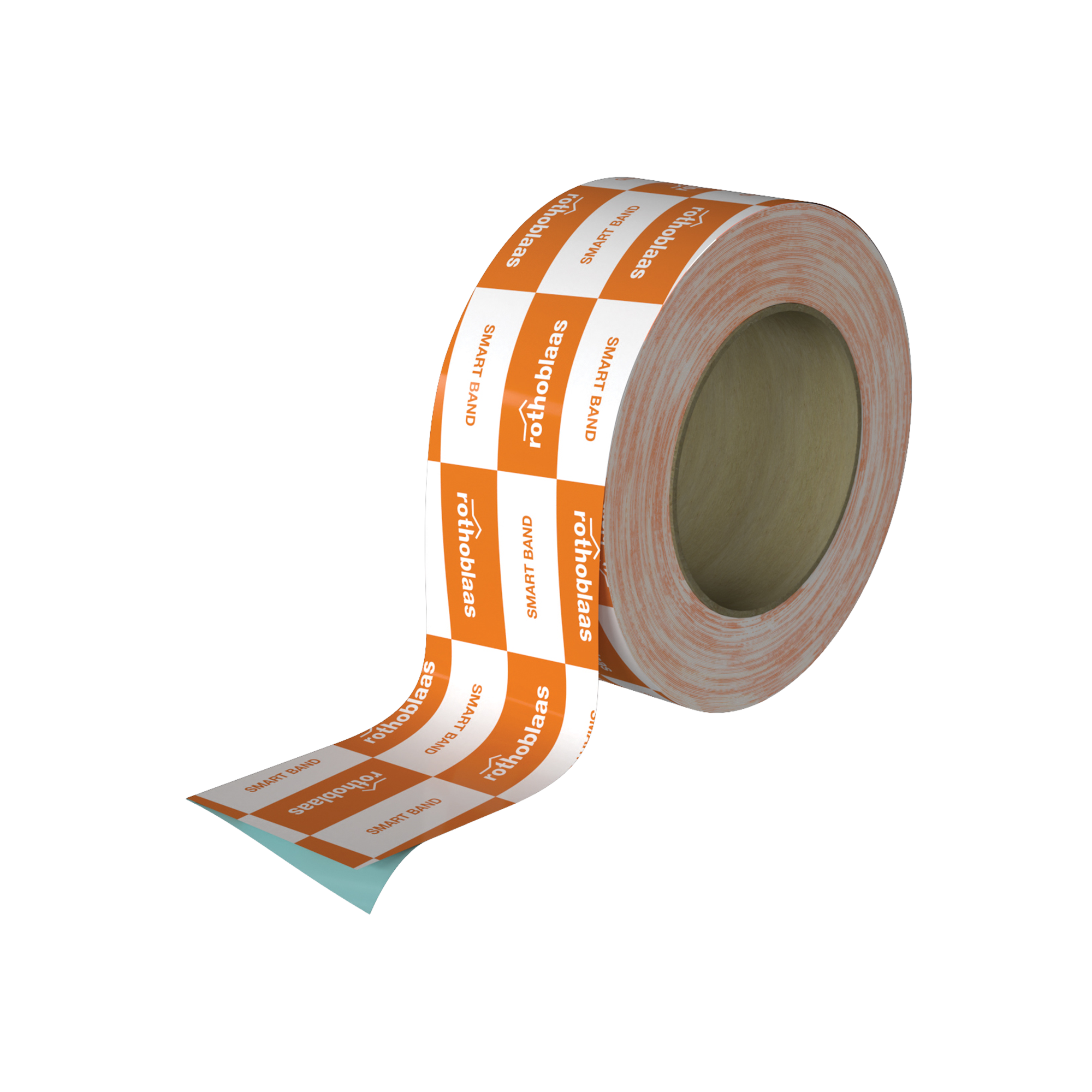

SMART60	60	25	2.4	82	10

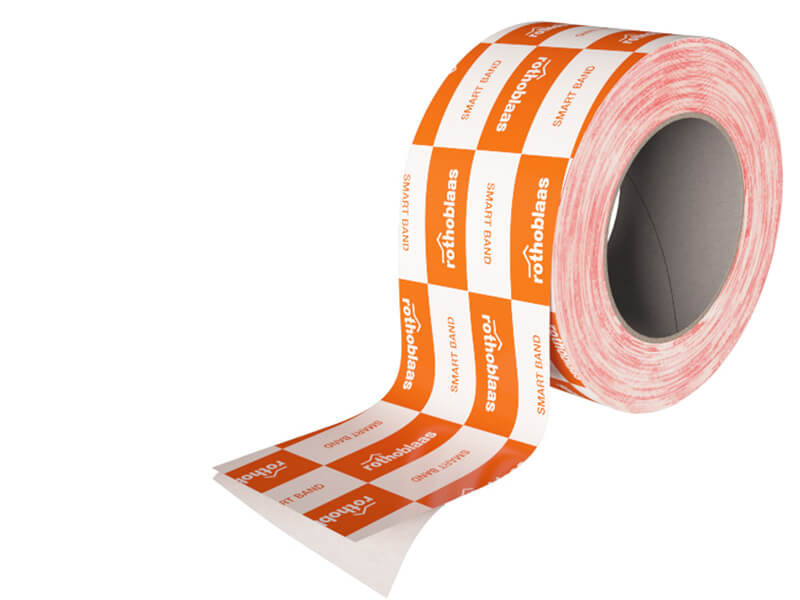

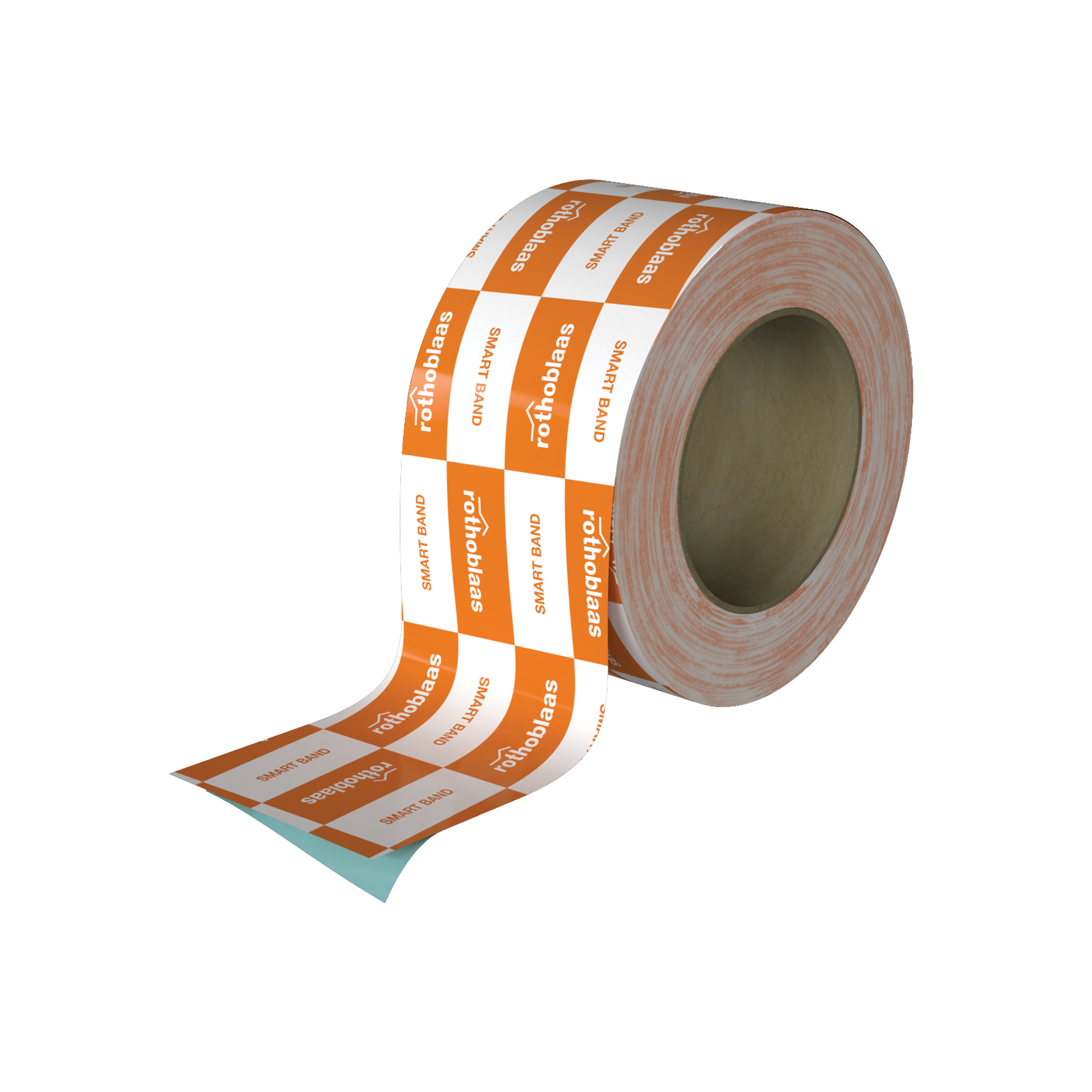

SMART75	75	25	3	82	8

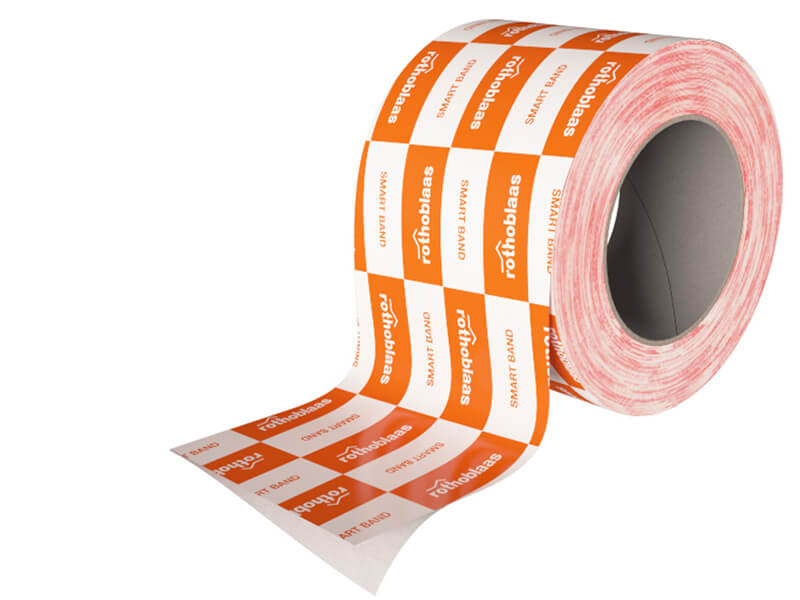

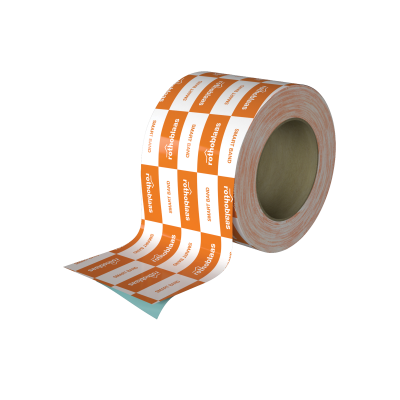

SMART100	100	25	3.9	82	6

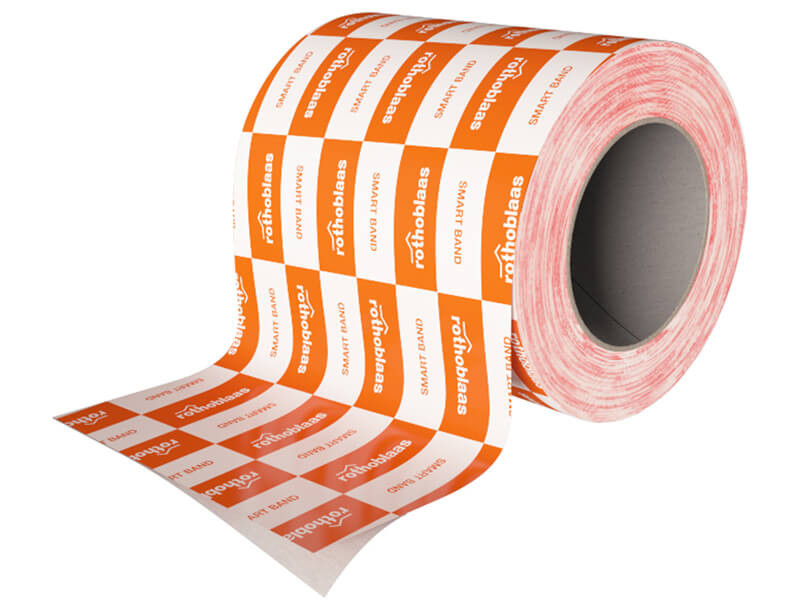

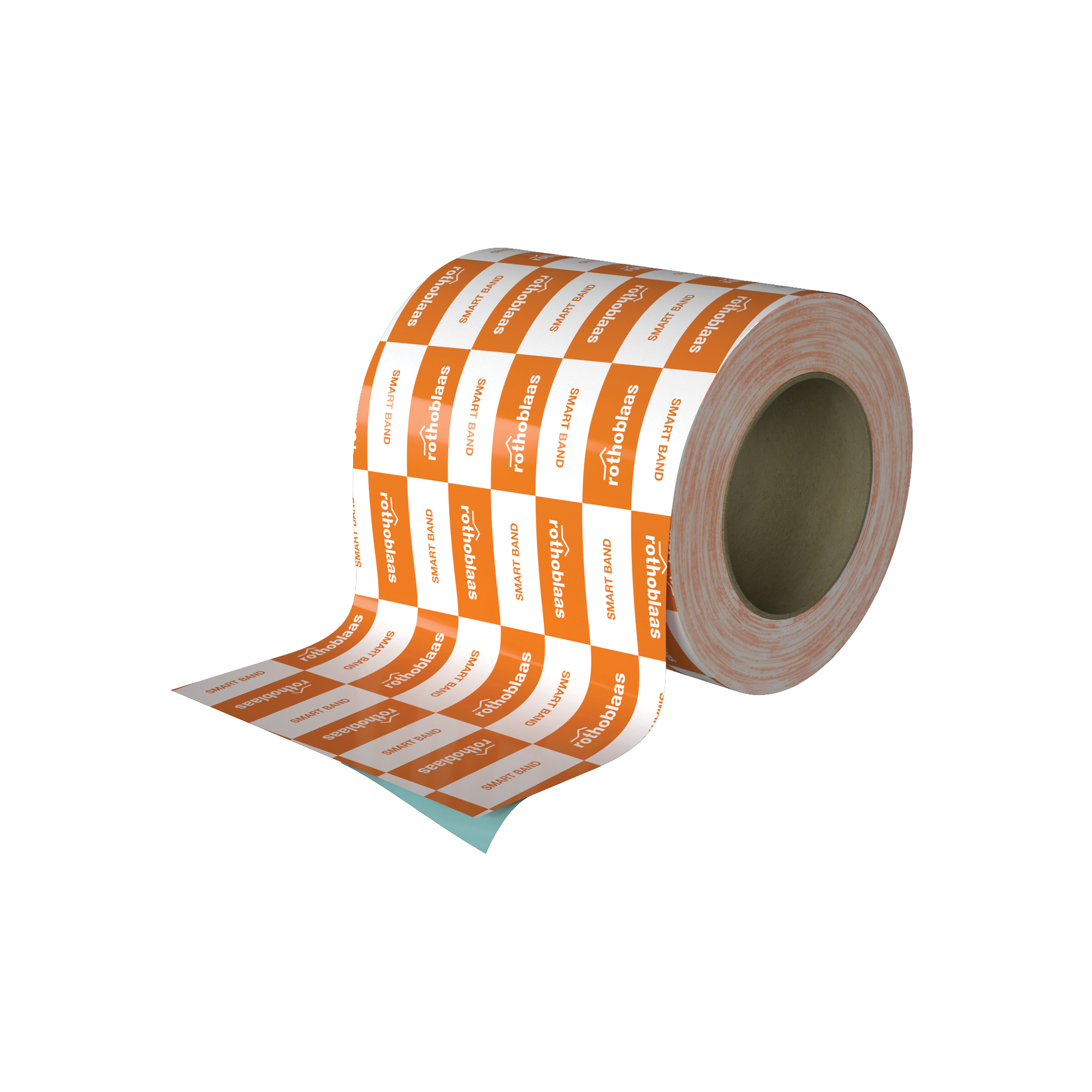

SMART150	150	25	5.9	82	4
SMART225	225	25	8.9	82	2
SMART300	300	25	11.8	82	2

属性	标准	数值经过测试	USC 转换
Thickness	-	0,24 mm	9 mil
Tensile strength	ASTM D1000	30 N/10mm	17.13 lbf/in
Elongation at failure	ASTM D1000	≥ 400 %	-
Resistance to heavy rain	-	compliant	-
Application temperature	-	-10 / 40 °C	14 / 104 °F
Resistance to temperature	-	-30 / 80 °C	-22 / 176 °F
Storage temperature	-	5 / 30 °C	41 / 86 °F
Adhesion strength on steel at 90°	AFERA 5001	≥ 12 N/25mm	≥ 2.74 lbf/in
Resistance to heavy rain	TU Berlin	npd	-
Solvents	-	no	-

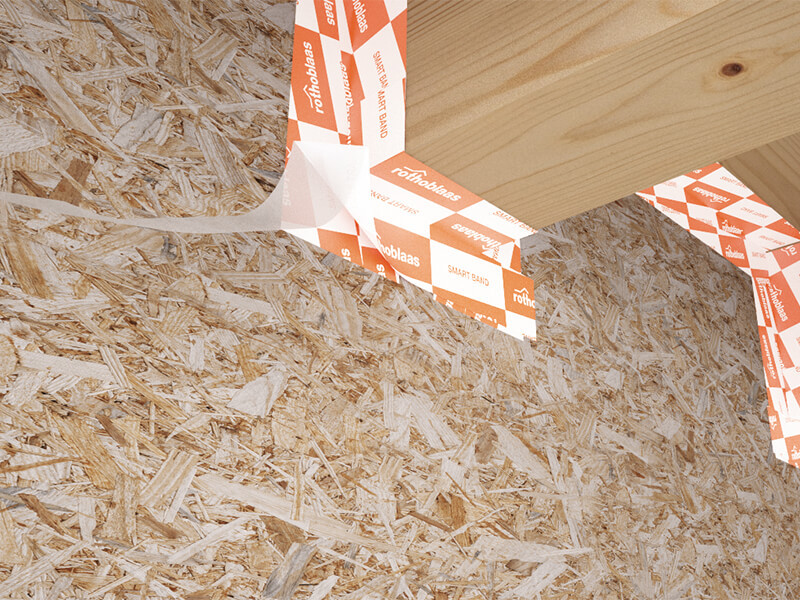

Adhesion strength on OSB at 180° after 10 minutes	EN ISO 29862	7 N/10mm	4 lbf/in
Adhesion strength on OSB at 90° after 10 minutes	EN ISO 29862	3,5 N/10mm	2 lbf/in
Adhesion strength (average) on membrane in PP after 24 hours	EN 12316-2	26 N/50mm	3 lbf/in
Shear adhesion strength of the joint on membrane in PP after 24 hours ^{(1 )}	EN 12317-2	55 N/50mm	6.3 lbf/in
Watertightness	-	compliant	-
Exposure to weather	-	12 month	-

1. Minimum required value according to DTU 31.2 P1-2 (France): 40 N/50 mm.

SUPPORT	PE special film
SUPPORT	UV-stabilised PE film
GLUE	solvent-free UV-crosslinked acrylic
RELEASE LINER	PP film with easy splitting
