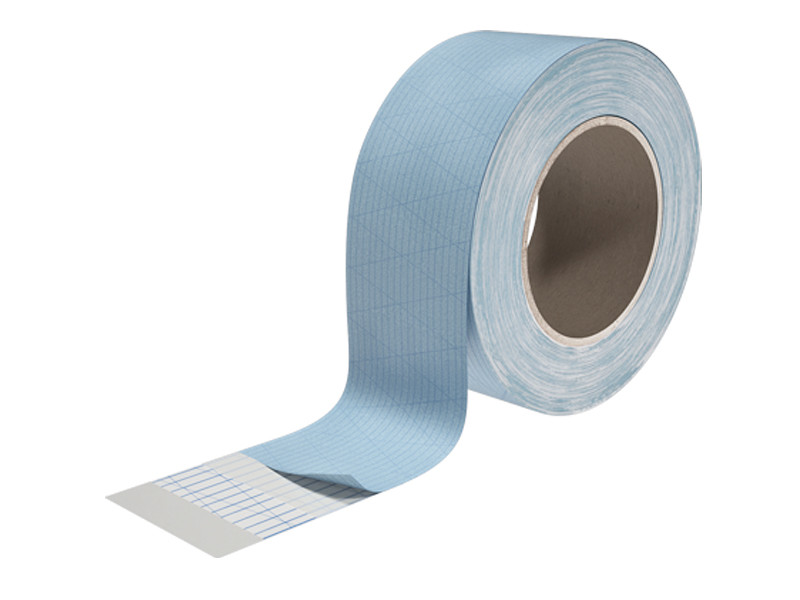

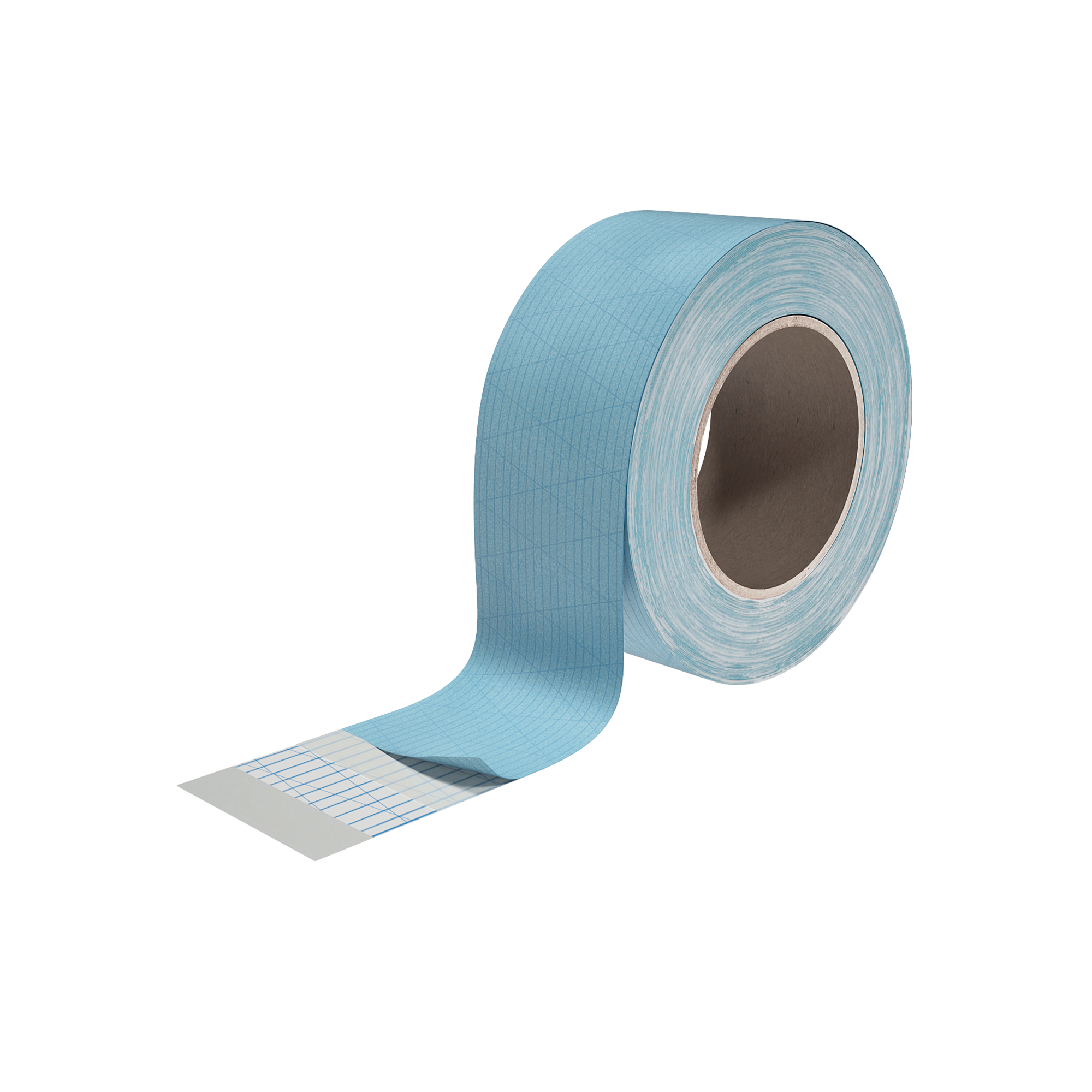

通用双面胶带
DOUBLE BAND

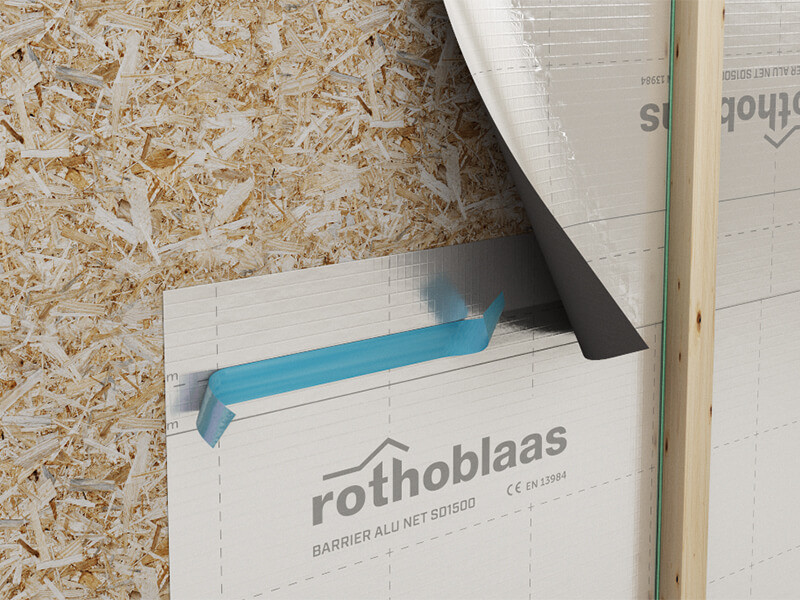

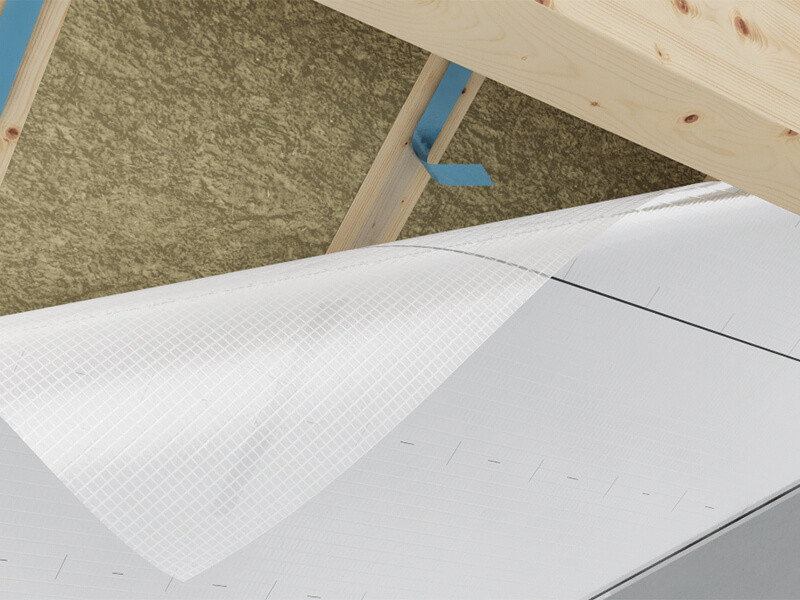

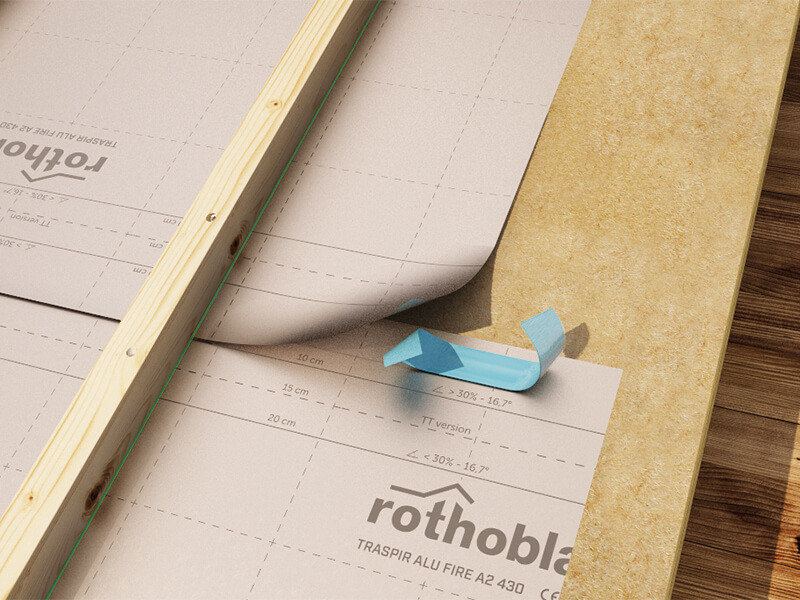

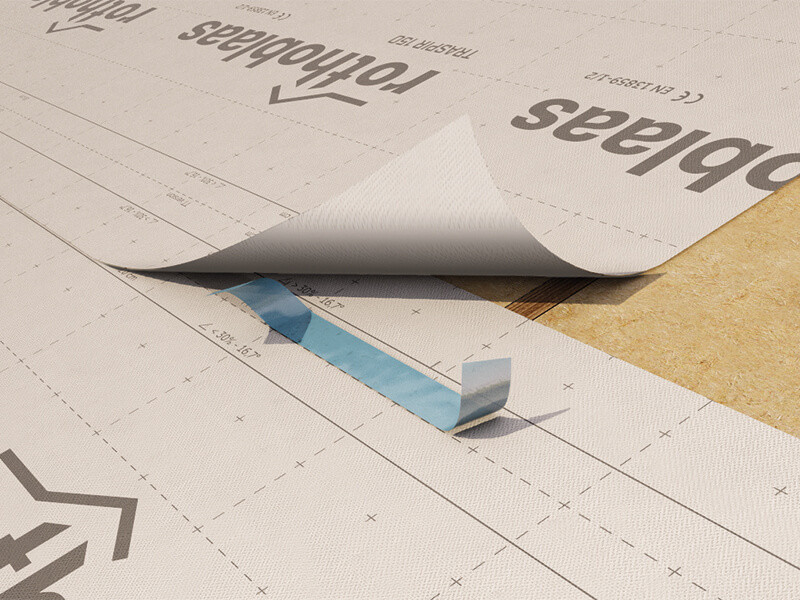

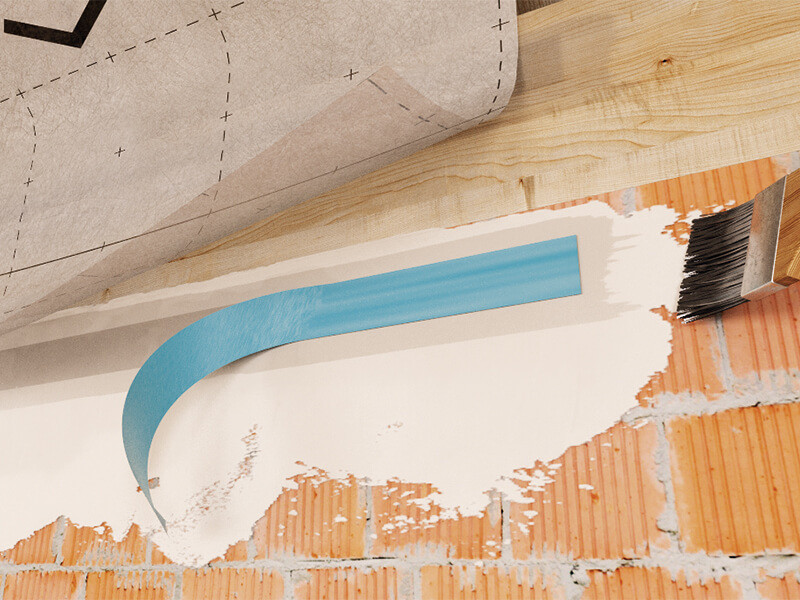

由于特殊的无溶剂丙烯酸粘合剂化合物配方，通用双面胶带DOUBLE BAND可确保即使低温下，在最常见的支撑上，也能获得优异的附着力。是隐蔽的木-木节点与木-薄膜节点精准连接的理想解决方案。
DOUBLE BAND是一种通用的双面胶带，在每项密封工作中提供双重安全性。
DOUBLE BAND双面胶带提供了完美的隐藏式密封，有很强的气候保护和耐用性。尽管厚度很低，但由于加强网格，密封将是十分安全的。丙烯酸胶的特殊配方确保了在不同温度下都具有优异的稳定性。
文件
技术数据表
|
|---|
DOUBLE BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| DOUBLE40 | 40 | 50 | 1.6 | 164 | 8 |
技术数据
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Thickness | EN 1942 | 0,25 mm | 10 mil |
| Adhesion strength on steel | (N/25mm EN 1939) | ≥ 25 N/25mm | ≥ 5.71 lbf/in |
| Watertightness | - | compliant | - |
| Solvents | - | no | - |
| Resistance to temperature | - | 30 / 100 °C | 86 / 212 °F |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Storage temperature | - | 5 / 25 °C | 41 / 77 °F |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 10 N/10mm | 5.7 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 5 N/10mm | 2.9 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 27 N/50mm | 3.1 lbf/in |
| Forza di adesione su membrana in PA/PP dopo 40 giorni di invecchiamento | DIN 4108-11 | compliant | - |
| Forza di adesione su membrana in PA/PP dopo 80 giorni di invecchiamento | DIN 4108-11 | compliant | - |
| Forza di adesione su membrana in PA/PP dopo 120 giorni di invecchiamento | DIN 4108-11 | compliant | - |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1) | EN 12317-2 | 250 N/50mm | 28.6 lbf/in |
1.
成分
| RELEASE LINER | silicone coated paper |
|---|---|
| GLUE | acrylic dispersion without solvents |
| REINFORCING LAYER | polyester reinforcing grid |
| GLUE | acrylic dispersion without solvents |
