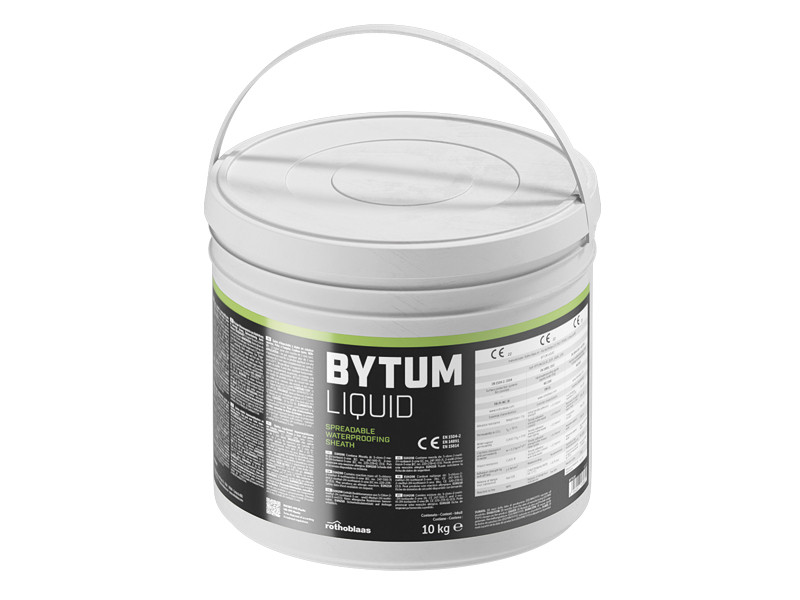

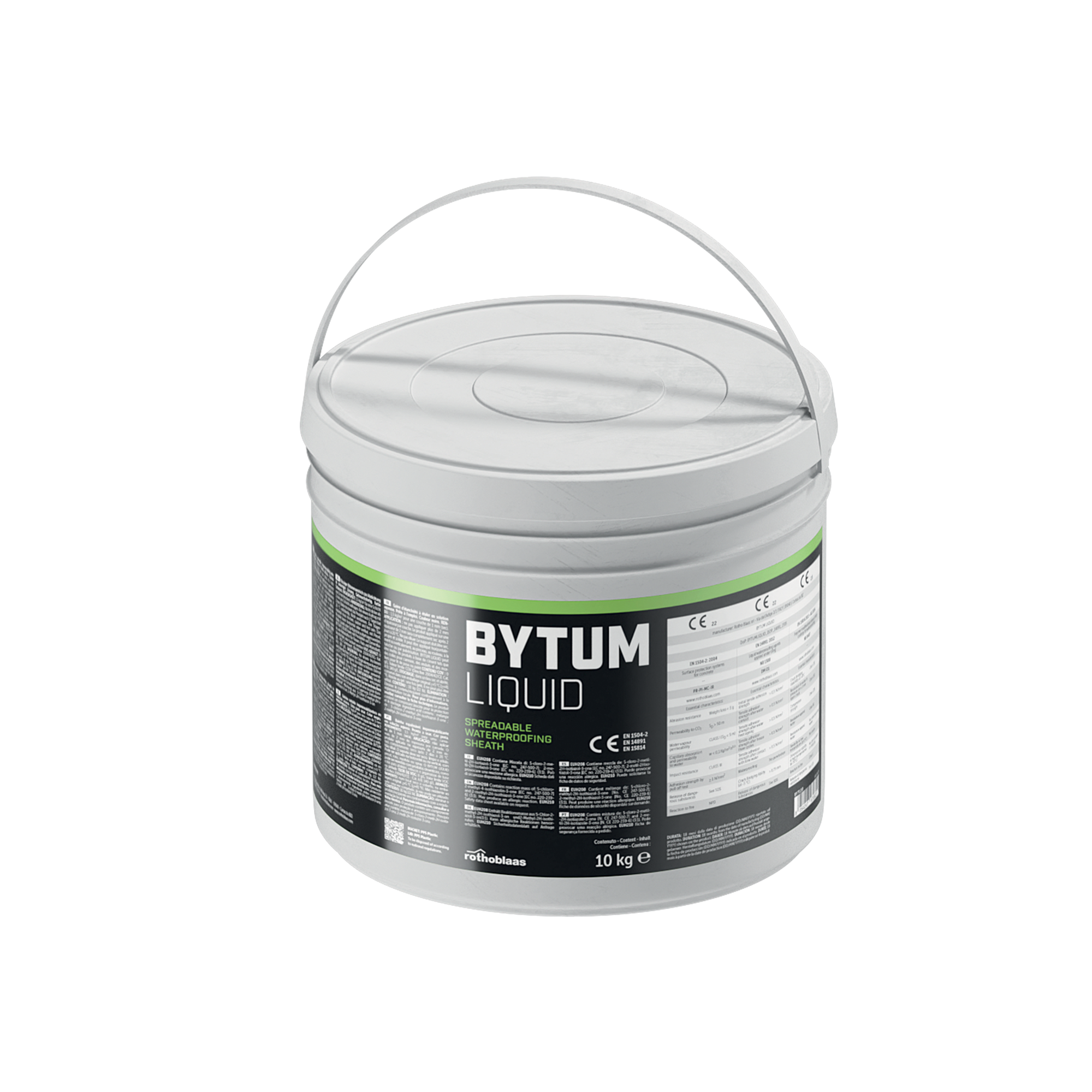

BYTUM LIQUID | REINFORCEMENT
涂抹防水层/加强层
Product made of distilled bitumen with elastoplastomeric polymer, with cold flexibility down to -15°C and resistance to heat up to 100°C.

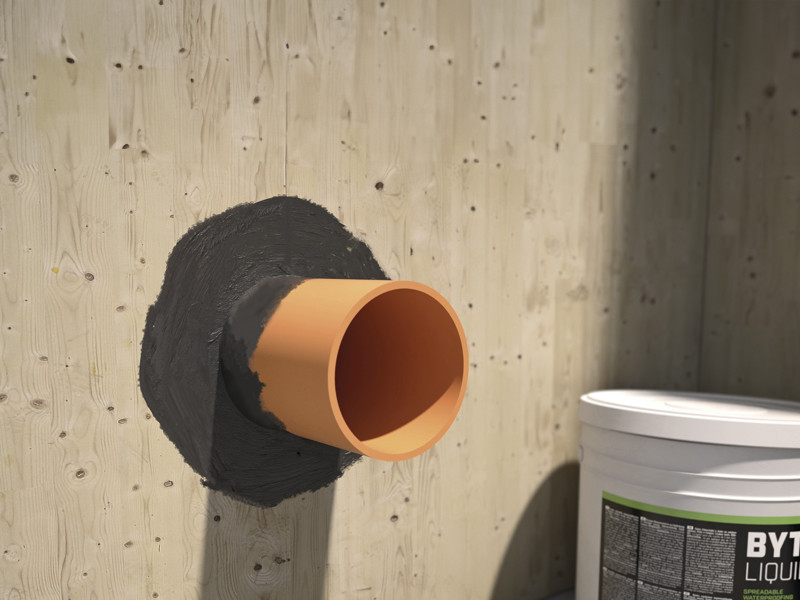

Suitable for outdoor waterproofing using a specific product depending on the required technical solution.
文件
-
技术数据表
-
符合性声明（DOC）
技术数据 BYTUM LIQUID
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Classification (1 ) | EN 1504-2 | C PI-MC-IR | - |
| Classification (2 ) | EN 14891 | DM O1 | - |
| Colour (wet/dry) | - | black/grey | - |
| Density | ISO 2811-1 | ca. 1,5 kg/L | ca. 12.52 lb/gal |
| Maximum application thickness | - | 3 mm | 118.11024 mil |
| Dry residue | ISO 3251 | ca. 77 % | - |
| Material yield per 1 mm thickness | - | 1,5 kg/m² | - |
| Water vapour transmission (Sd) (3 ) | EN ISO 7783 | classe I: < 5 m | - |
| Elongation at failure | EN ISO 37 | 200 % | - |
| Elongation with BYTUM REINFORCEMENT | EN 12311-1 | 80 | - |
| Reaction to fire | EN 13501-1 | class E | - |
| Thermal conductivity (λ) | - | 0,2 W/(m·K) | 0.12 BTU/(h·ft²·°F) |
| Crack bridging ability | EN 1602-7 | ≥ 10 mm | ≥ 394 mil |
| Crack bridging with BYTUM REINFORCEMENT | EN 1602-7 | > 10 mm | > 394 mil |
| Static load resistance Met.A/Met.B | EN 12730 | - | - |
| Static load resistance Met.A/Met.B | EN 12730 | - | - |
| Impact resistance Met.A/Met.B | EN 12691 | - | - |
| Impact resistance Met.A/Met.B | EN 12691 | - | - |
| Specific heat | - | 1500 J/(kg·K) | - |
| Flexibility at low temperatures | EN 1109 | -10 °C | 14 °F |
| Resistance to temperature | - | -30 / 80 °C | -22 / 176 °F |
| Application temperature (ambient and support) | - | 5 / 35 °C | 41 / 95 °F |
| Time required for application of each layer on the previous one 23 °C / 50% RH (4 ) | - | 48 hours | - |
| Time required for complete hardening 23 °C / 50% RH (4 ) | - | 48 hours | - |
| Storage temperature | - | ≥ 5 / °C | ≥ 41 / °F |
| Direct traction adhesion on timber/metal | EN 1542 | 1,7 N/mm² | 247 lbf/in² |
| Dynamic viscosity | EN ISO 3219 | 65000 Pa·s | - |
| Water permeability (W) | EN 1062-3 | 0,1 kg/(m²·h⁰’⁵) | - |
| Impact resistance | EN 12691 | - | - |
| Tensile adhesion after immersion in water | EN 14891 | > 0,5 N/mm² | > 73 psi |
| Tensile adhesion after thermal ageing | EN 14891 | > 0,5 N/mm² | > 73 psi |
| Tensile adhesion after freeze-thaw cycles | EN 14891 | > 0,5 N/mm² | > 73 psi |
| Tensile adhesion after contact with lime water | EN 14891 | > 0,5 N/mm² | > 73 psi |
| Watertightness | EN 14891 | - | - |
1.
2.
3. It depends on the thickness applied.
4. The data expressed may vary depending on the thickness of the product applied and the specific installation conditions: temperature, humidity, ventilation, absorbency of the substrate.

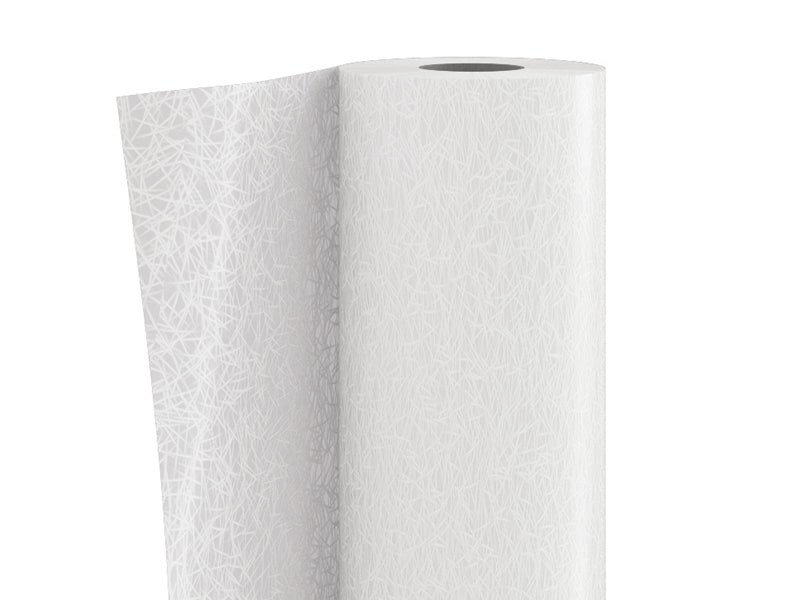

技术数据 BYTUM REINFORCEMENT
| 属性 | 标准 | 数值经过测试 | USC 转换 |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 100 g/m² | 0.33 oz/ft² |
| Thickness | - | 0,5 mm | 20 mil |
成分 BYTUM REINFORCEMENT
| polyester reinforcing grid |
