ALUMEGA

适用于支柱和横梁的铰链连接件

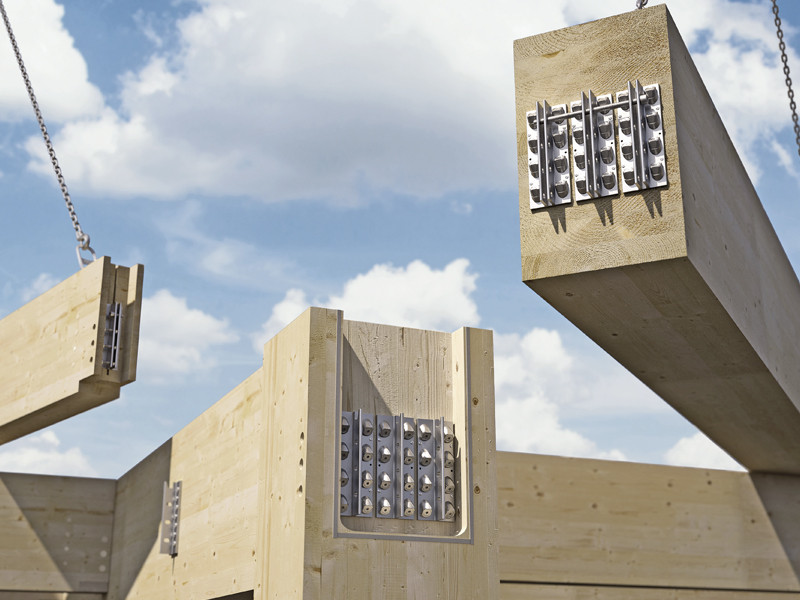

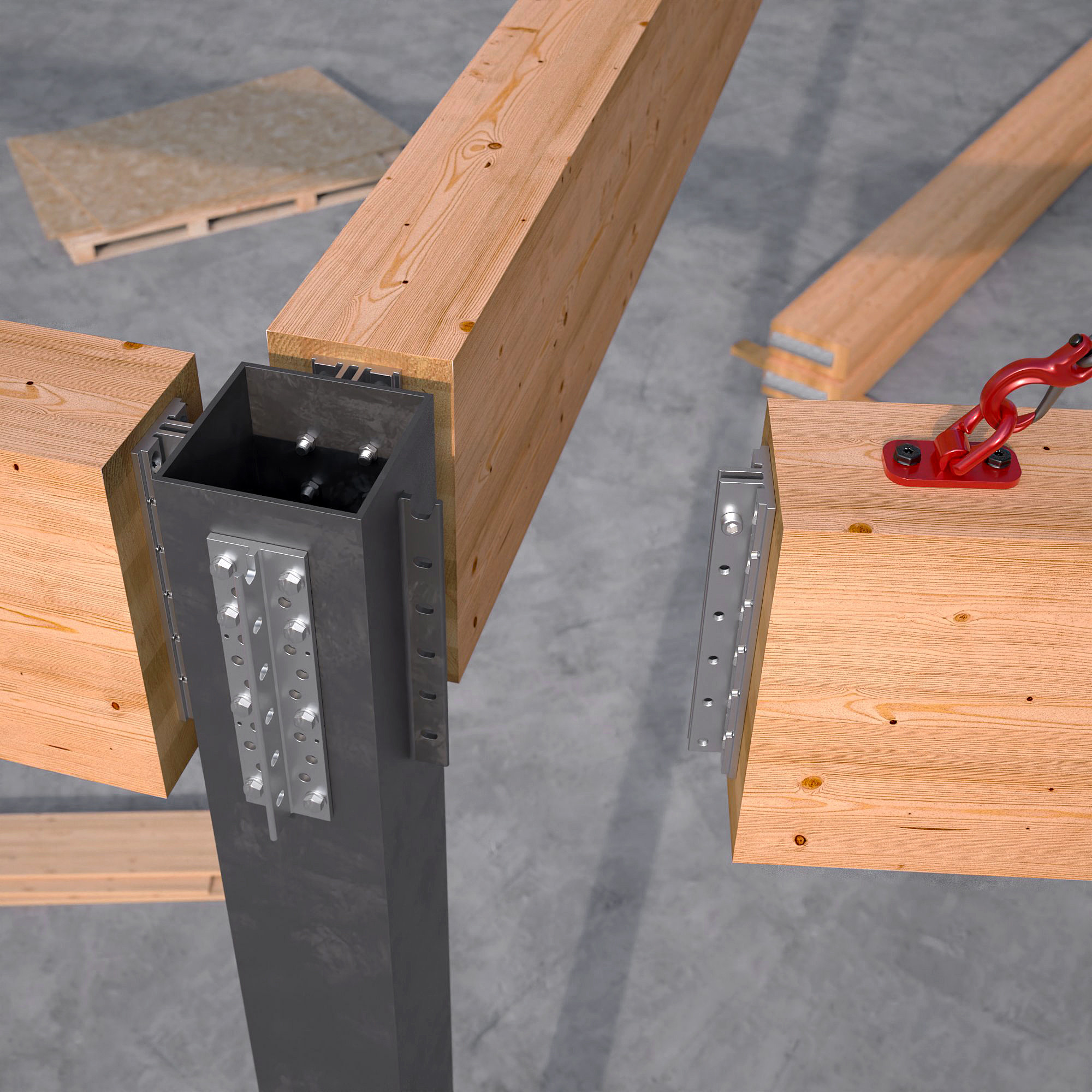

ALUMEGA 是梁-梁和梁-柱接头的标准化连接件，适用于柱梁系统，即使是大跨度结构。

ALUMEGA 铰链连接件可以在木-木连接设计中发挥以下功能：

用作铰链连接，使梁末端可自由旋转
在地震或风荷载的作用下，该连接件可跟随支柱摆动，保持来自楼板重力载荷的抗剪强度，并减少结构损坏

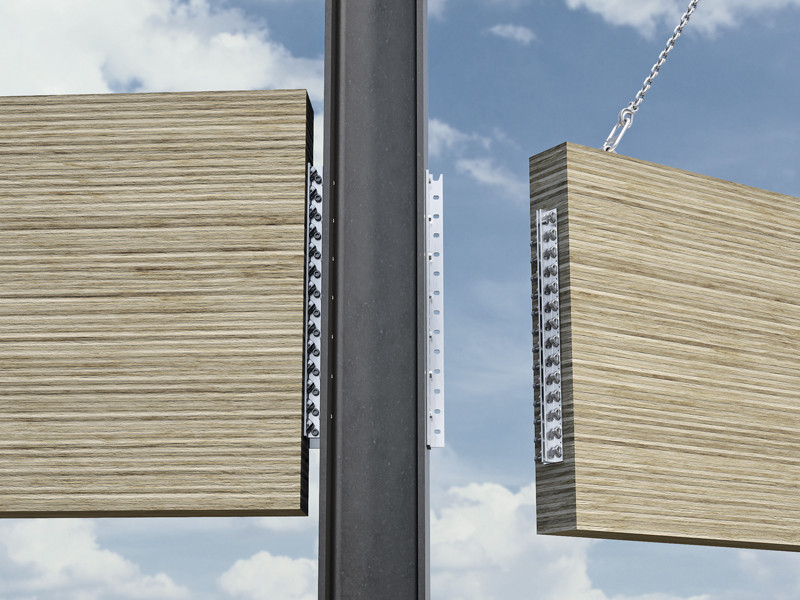

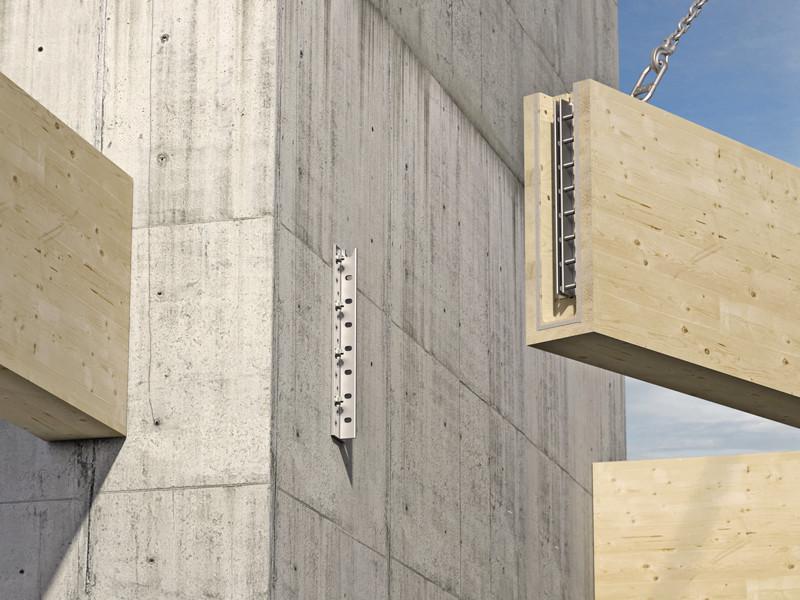

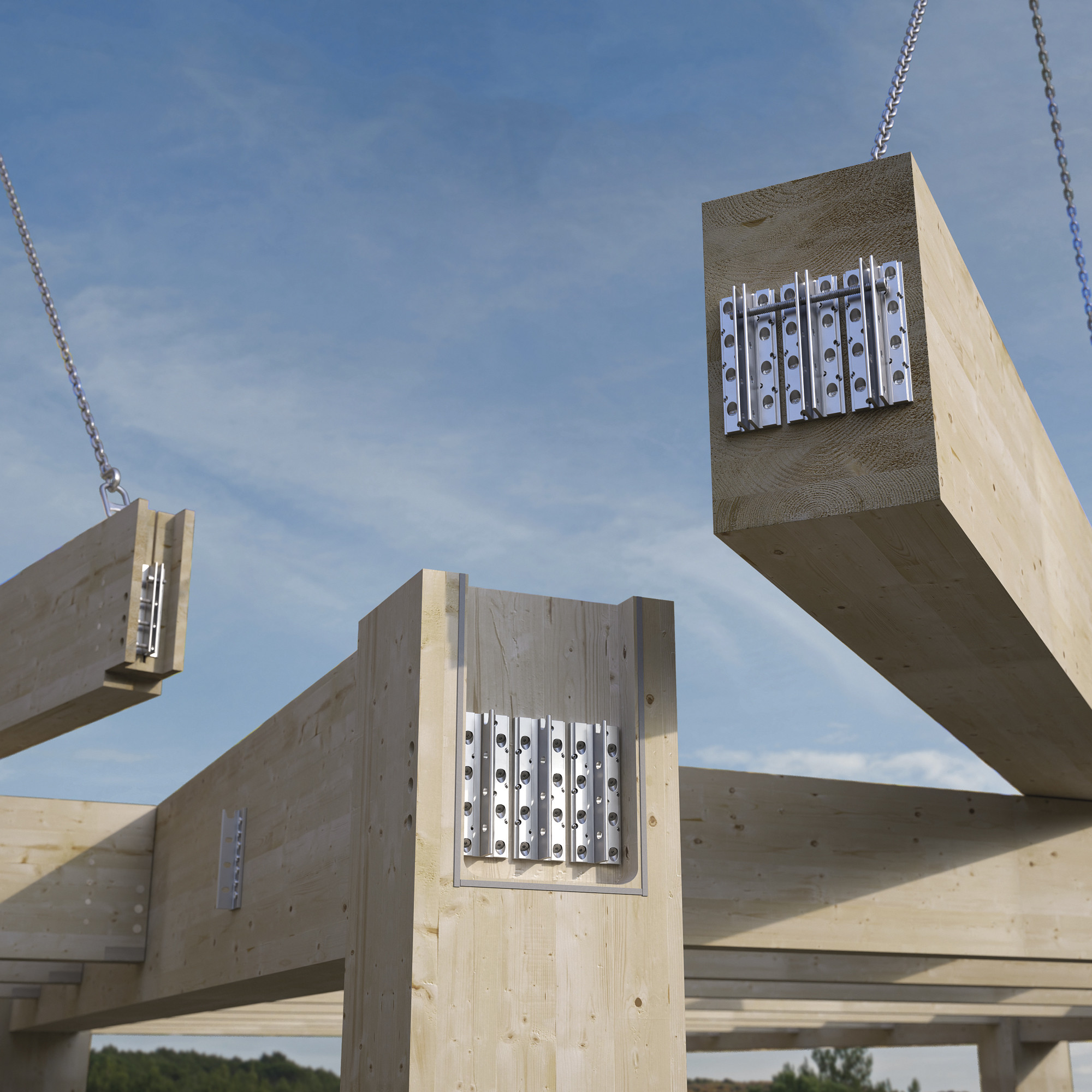

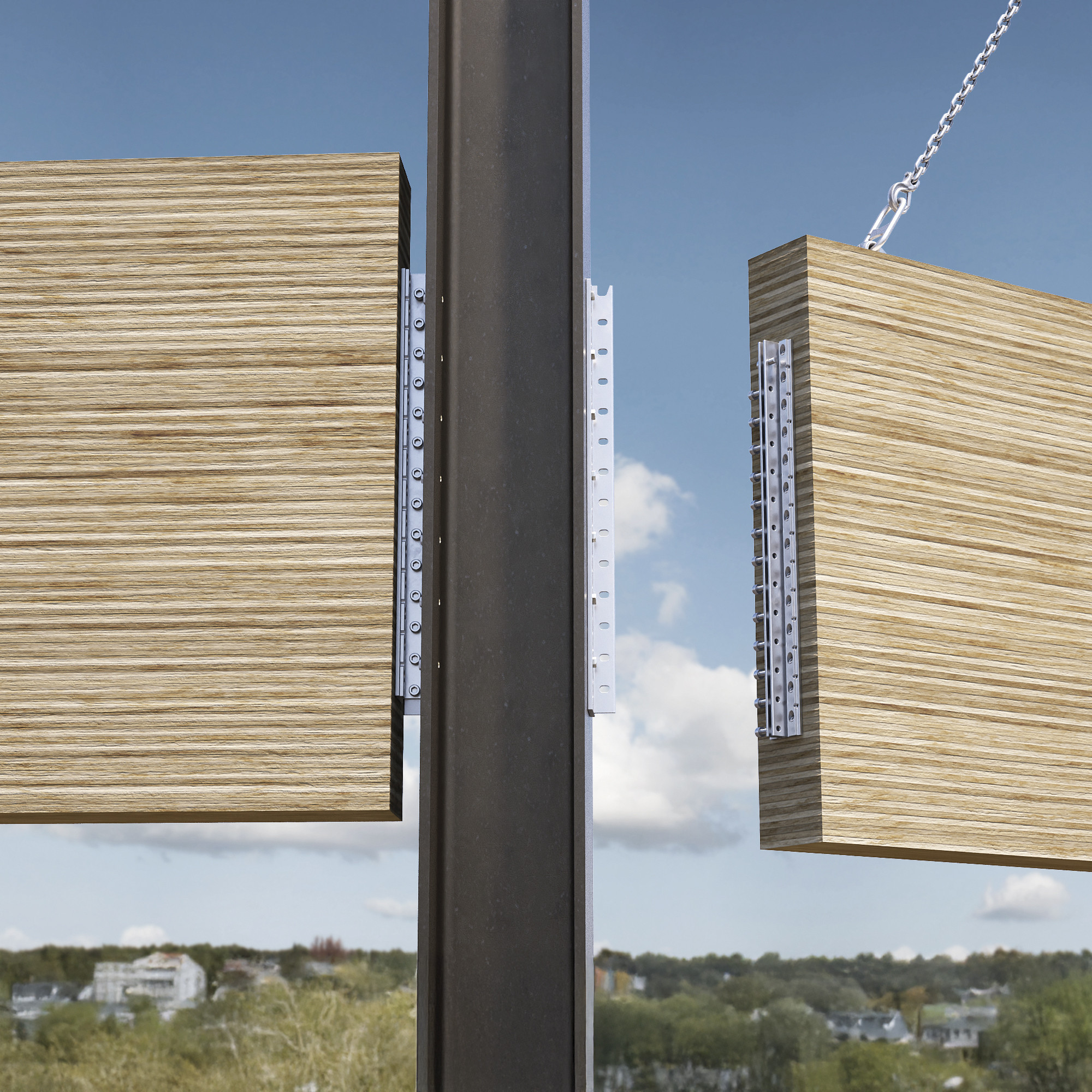

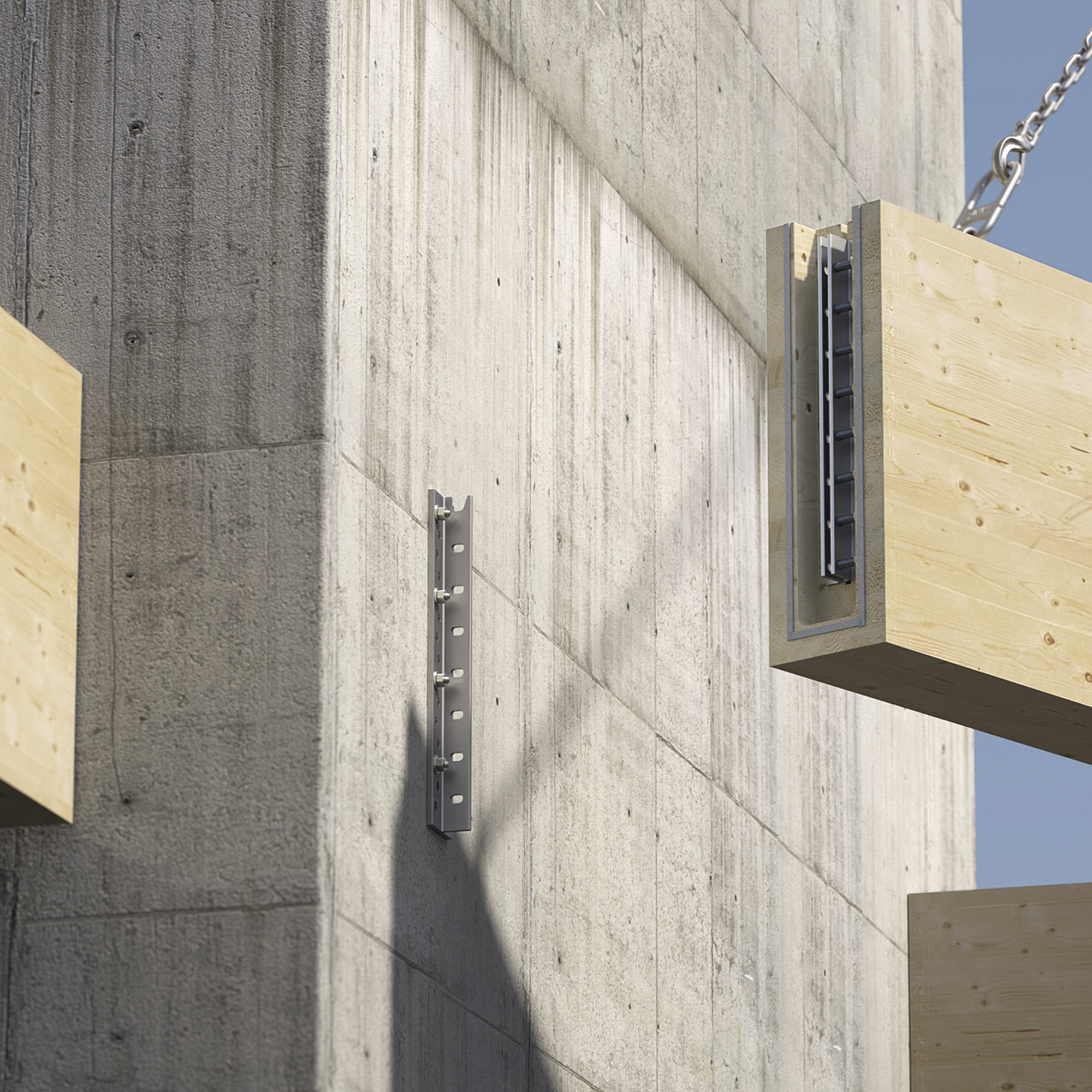

可以并排放置多个模块，以便提供木材、混凝土和钢材等不同材料的连接

Contacts

描述
文件
代号和尺寸

描述

ALUMEGA：安装公差和旋转能力

它是市场上所有高强度连接件中安装公差最宽松的产品：

• 得益于水平开孔设计，ALUMEGA 可以在轴向滑动 8 mm（+-4 mm）
• 其特殊的几何形状可以获得垂直于次梁的横向公差
• 在经过了一些列严格的监管程序后，产品根据 ETA-23/0824 进行了测试和认证

连接件设有多个水平开孔，可以降低地震对建筑的损坏程度。在静态情况下，产品可避免由于梁偏转而导致的支撑弯矩。

ALUMEGA：可预安装，过程简便

连接件顶部的埋头孔可以用来辅助螺栓的定位。产品可以在工厂预先组装，并在现场使用简单的钢螺栓来完成连接。

文件

技术数据表
Choose a Language
技术数据表 Old
Choose a Language
ICC-ES Evaluation report USA

Choose a Language
ETA Certificate

Choose a Language
File CAD

Choose a Language
混凝土锚固文件
Choose a Language
File BIM.ifc

Choose a Language
File BIM.rfa

Choose a Language
试算表 Alumega_calculator

Choose a Language
安装说明 (Alumega HV - JV)
Choose a Language
安装手册 (JIGALUMEGA)

Choose a Language

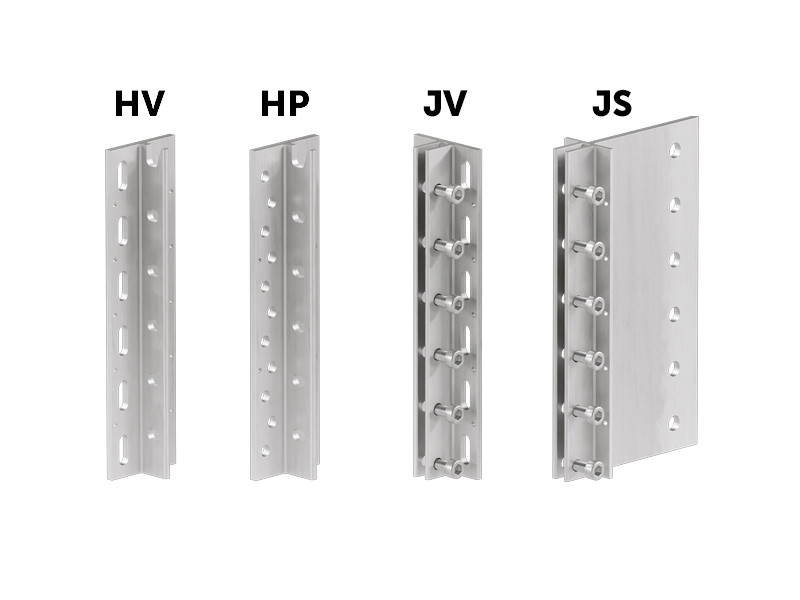

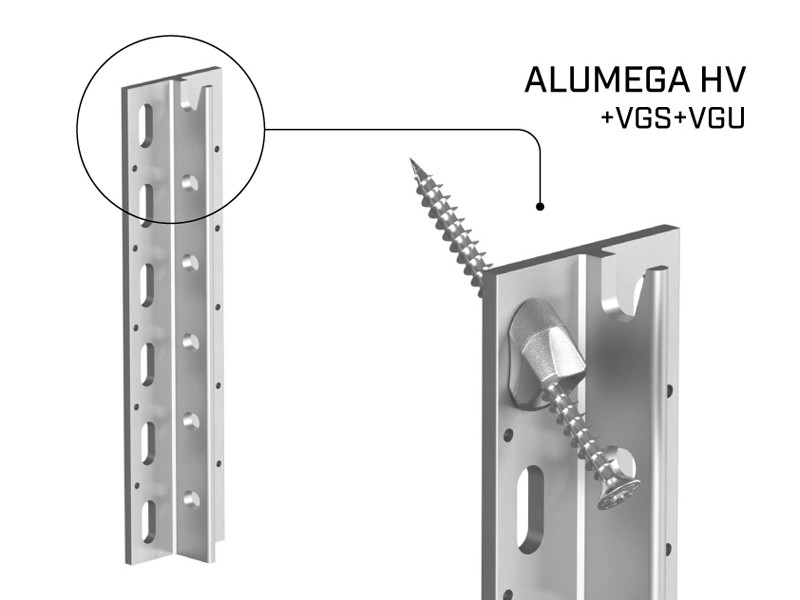

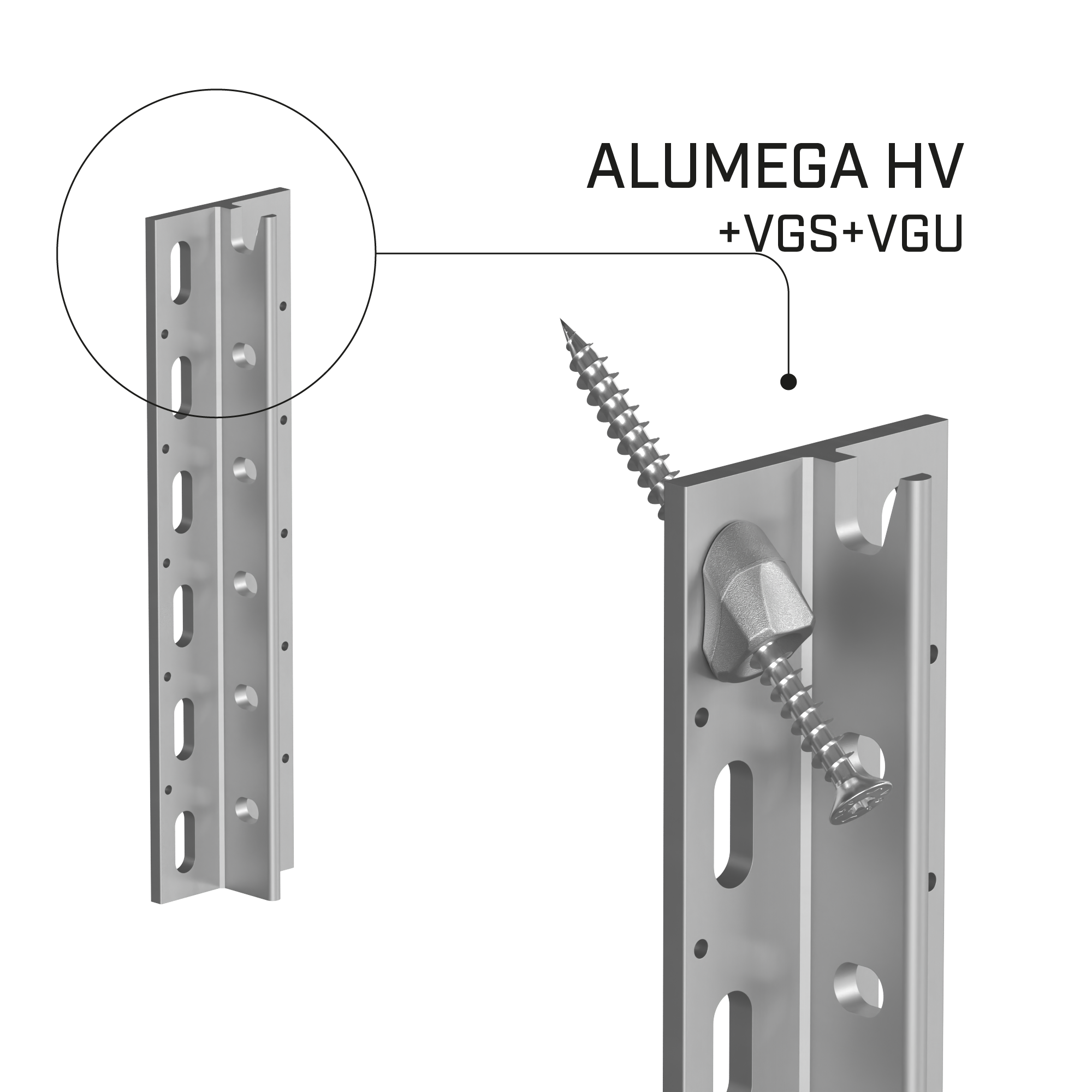

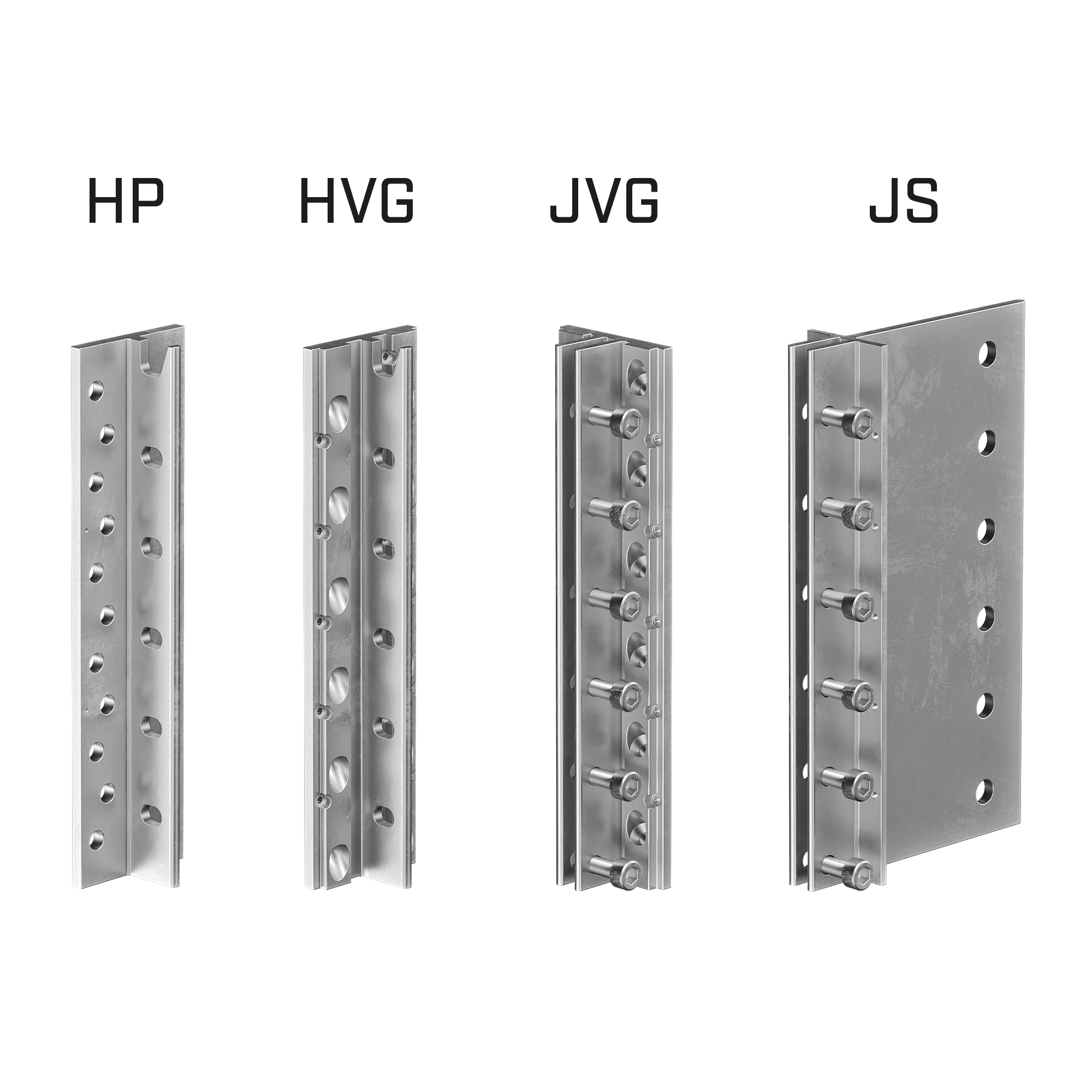

HV - HEADER CONNECTOR FOR TIMBER WITH INCLINED SCREWS

CODE	B [mm]	P [mm]	H [mm]	B [in]	P [in]	H [in]	pcs.
ALUMEGA240HV	95	50	240	-	-	-	1
ALUMEGA360HV	95	50	360	-	-	-	1
ALUMEGA720HV	95	50	720	-	-	-	1
ALUMEGA840HV	95	50	840	-	-	-	1

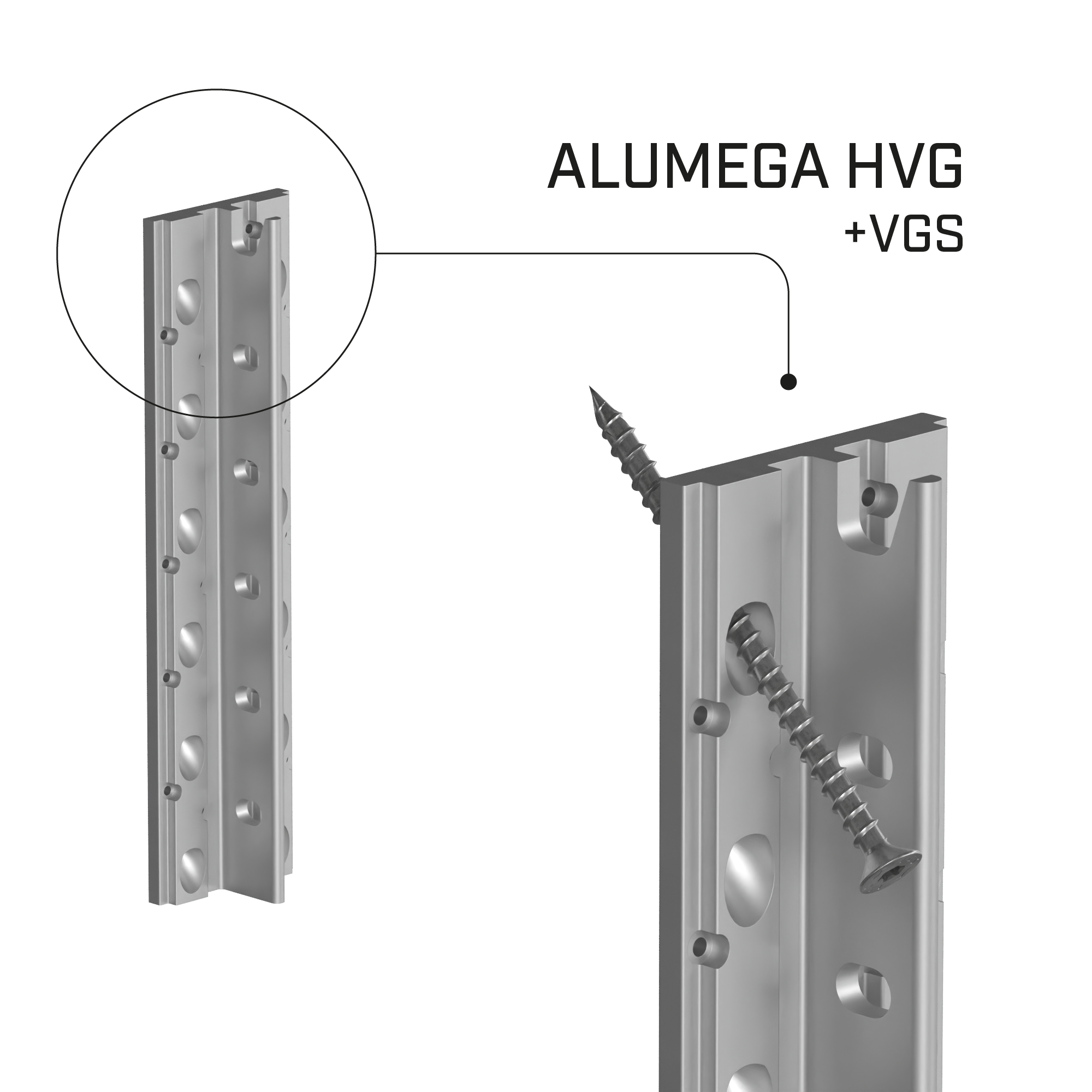

HVG - HEADER CONNECTOR FOR TIMBER WITH INCLINED SCREWS

CODE	B [mm]	P [mm]	H [mm]	B [in]	P [in]	H [in]	pcs.
ALUMEGA240HVG	95	50	240	-	-	-	1
ALUMEGA360HVG	95	50	360	-	-	-	1
ALUMEGA480HVG	95	50	480	-	-	-	1
ALUMEGA600HVG	95	50	600	-	-	-	1
ALUMEGA720HVG	95	50	720	-	-	-	1
ALUMEGA840HVG	95	50	840	-	-	-	1

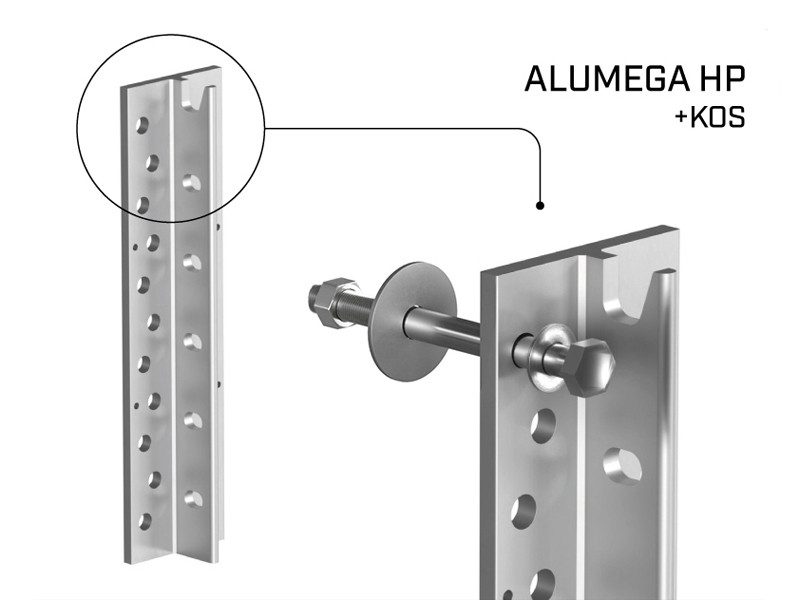

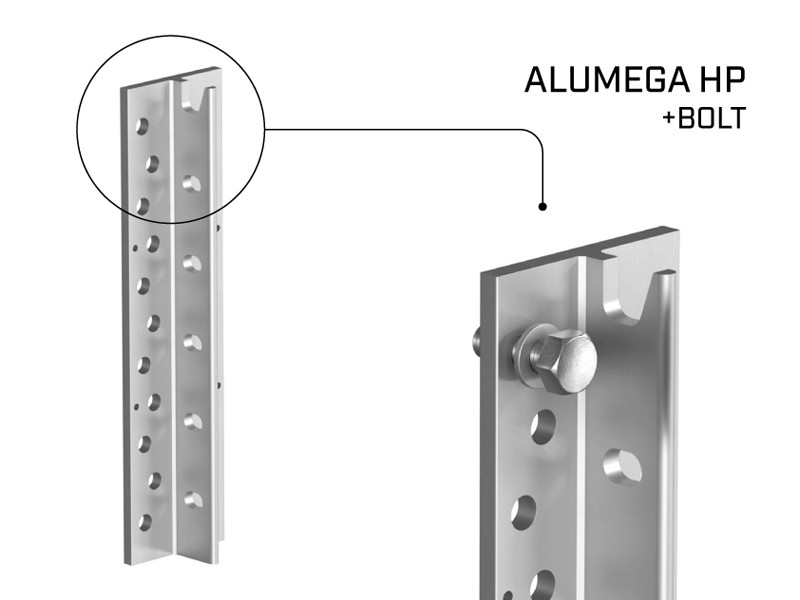

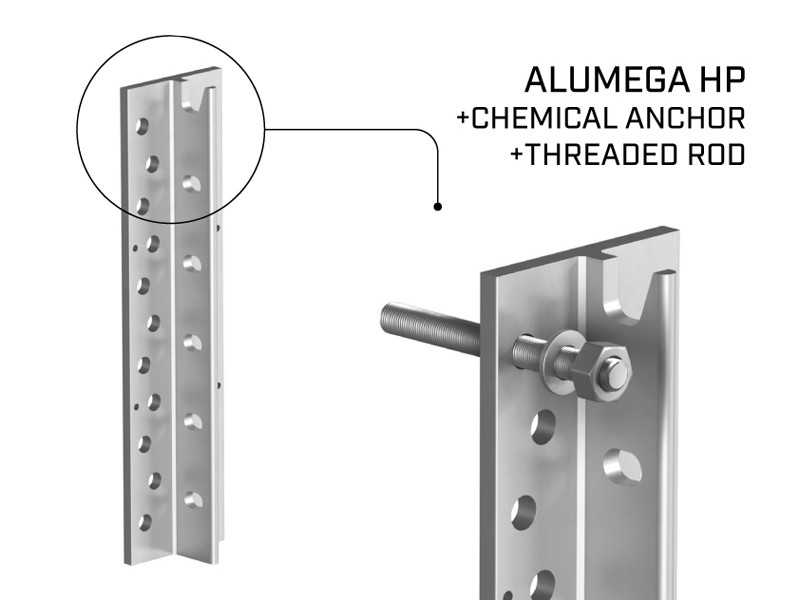

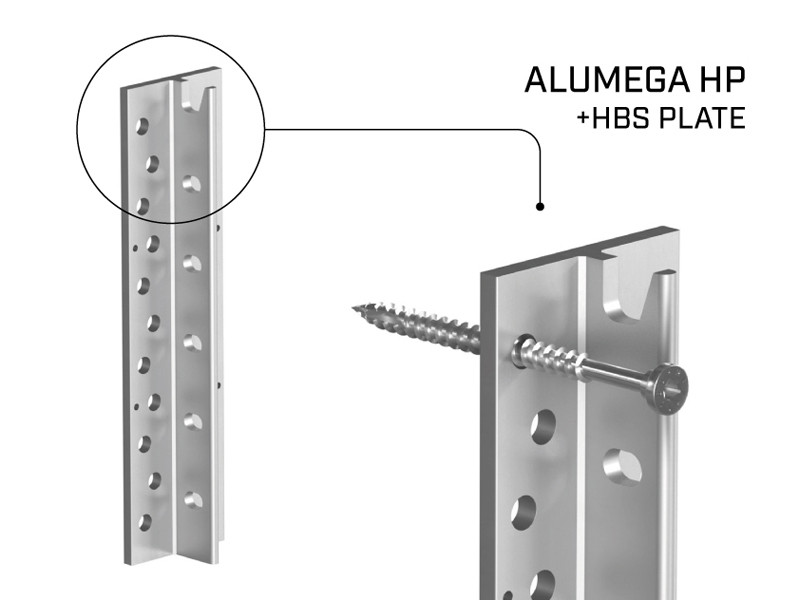

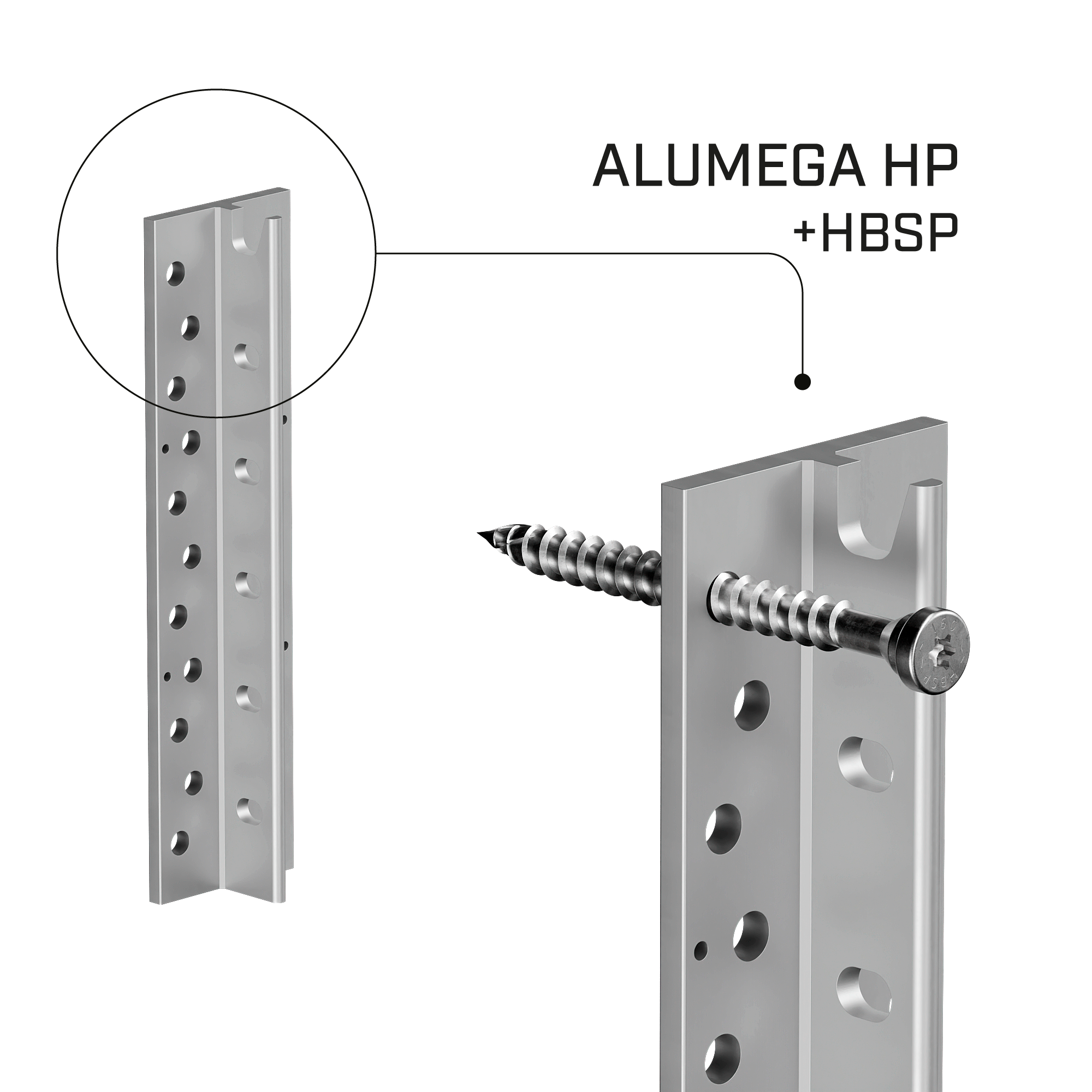

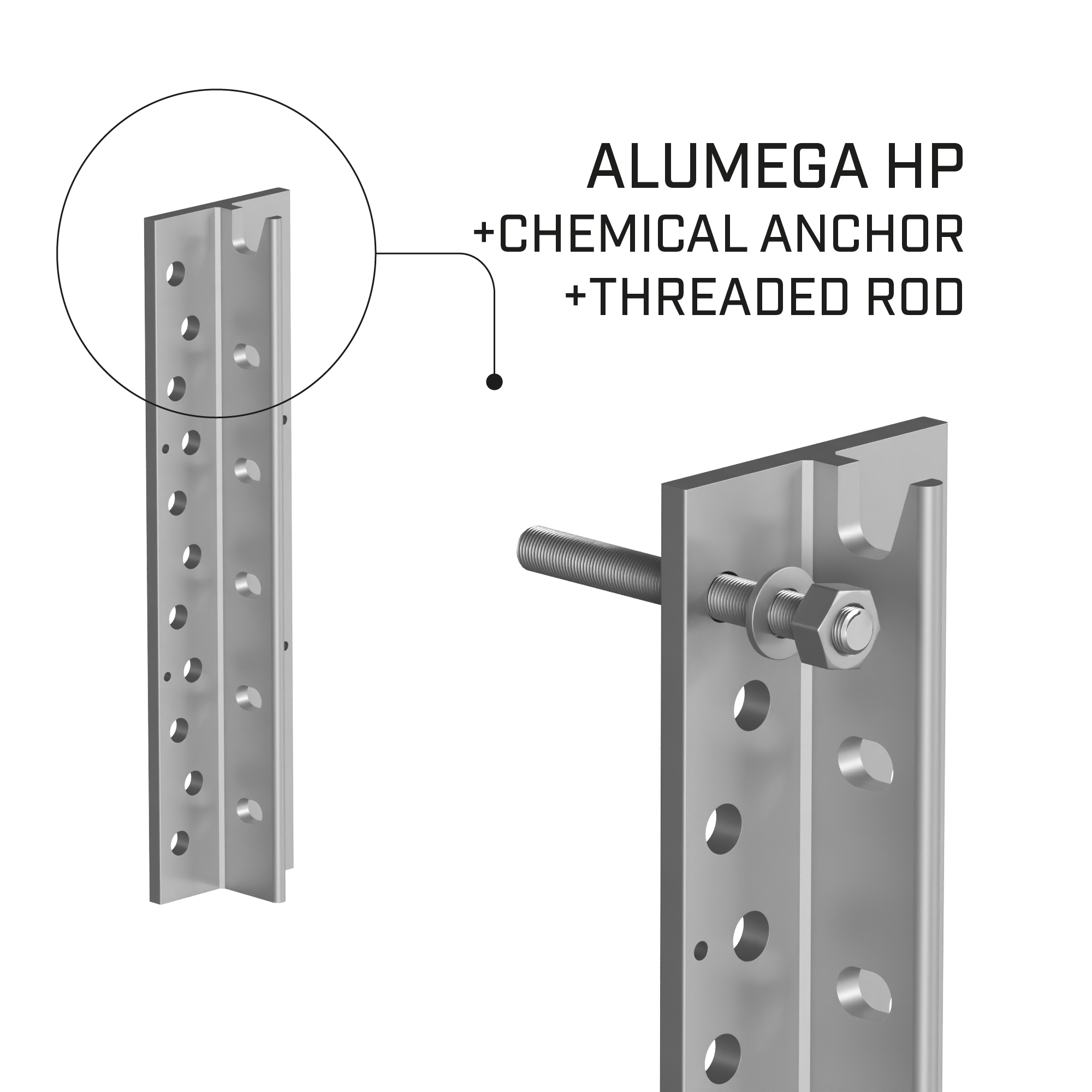

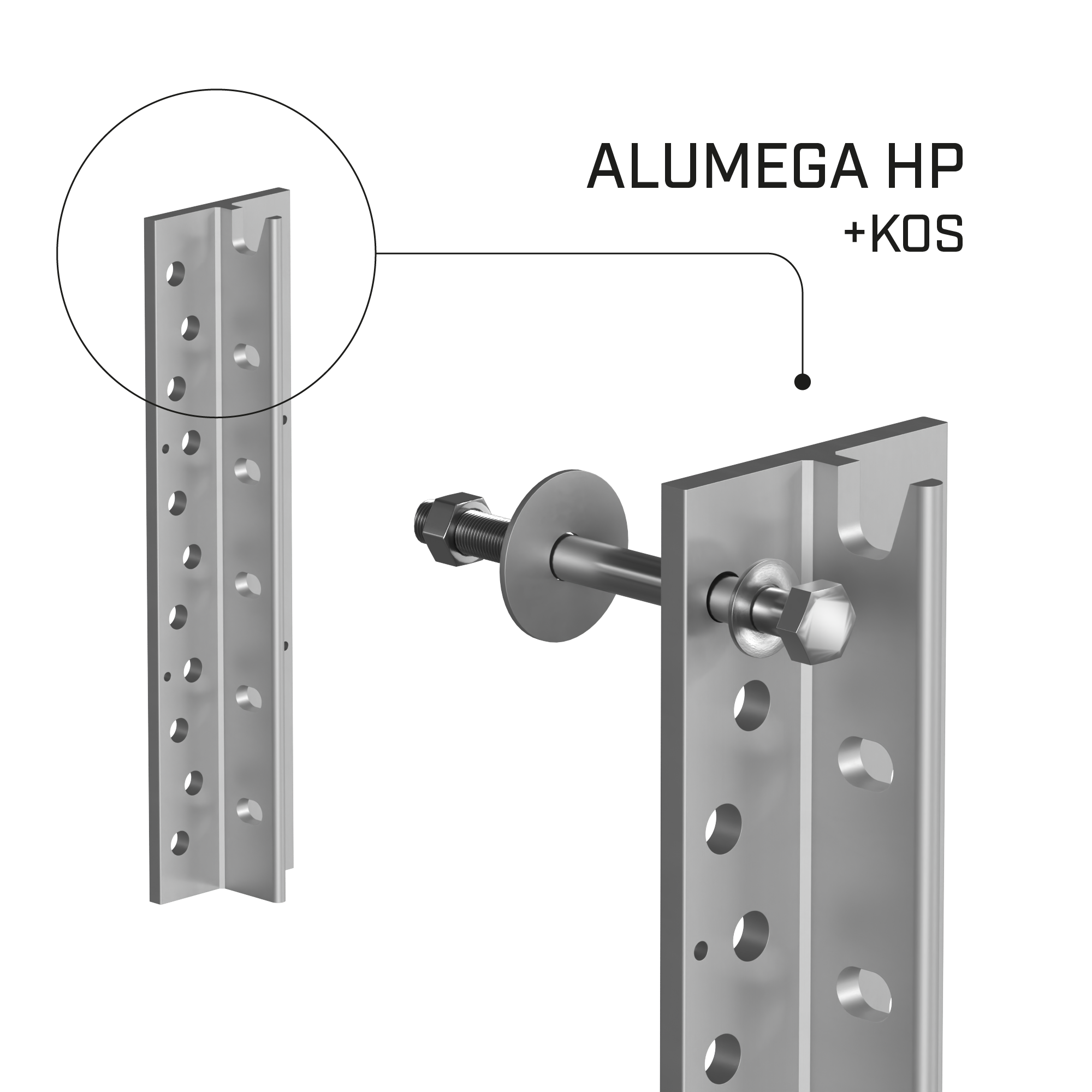

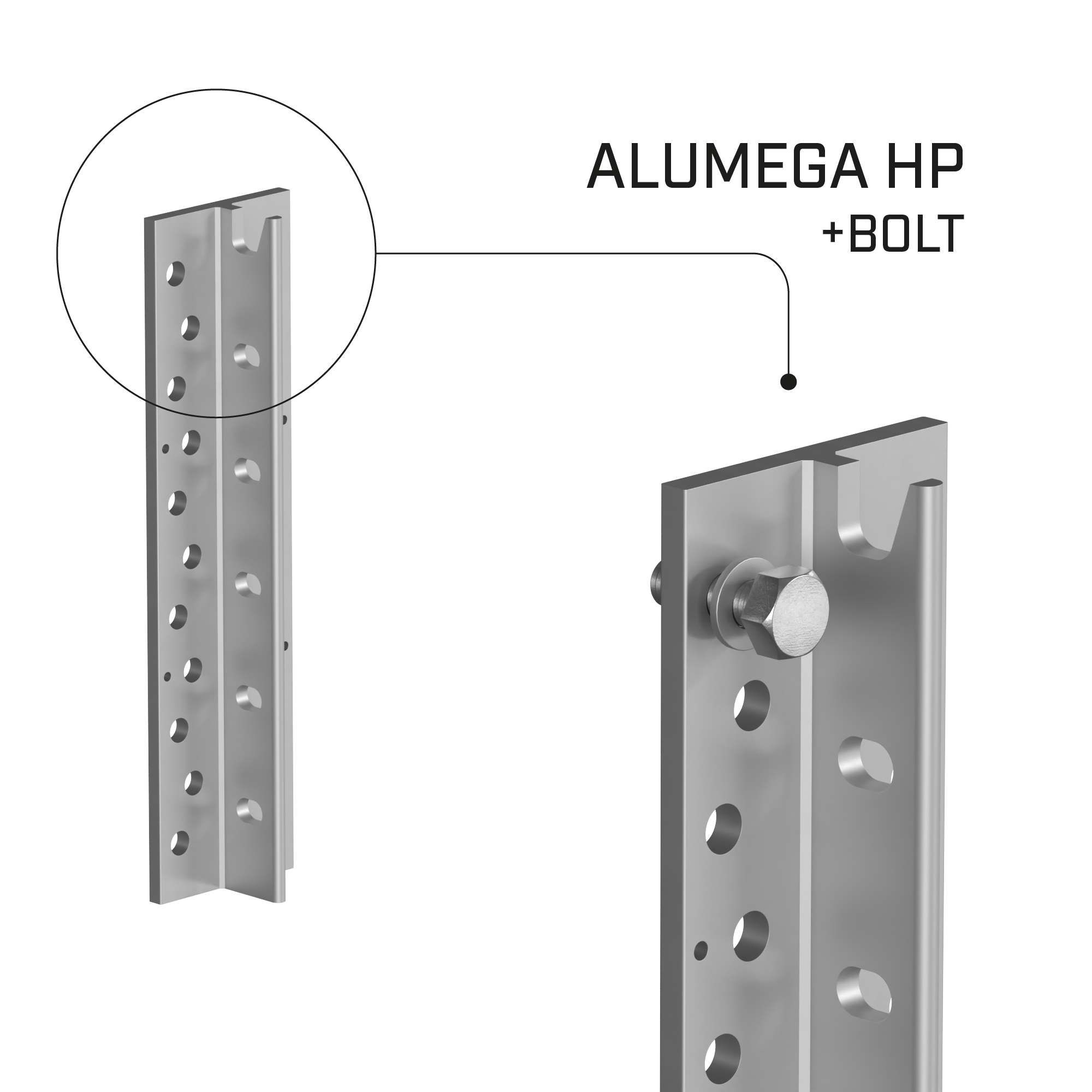

HP - HEADER CONNECTOR FOR TIMBER, CONCRETE AND STEEL

CODE	B [mm]	P [mm]	H [mm]	B [in]	P [in]	H [in]	pcs.
ALUMEGA240HP	95	50	240	-	-	-	1
ALUMEGA360HP	95	50	360	-	-	-	1
ALUMEGA480HP	95	50	480	-	-	-	1
ALUMEGA600HP	95	50	600	-	-	-	1
ALUMEGA720HP	95	50	720	-	-	-	1
ALUMEGA840HP	95	50	840	-	-	-	1

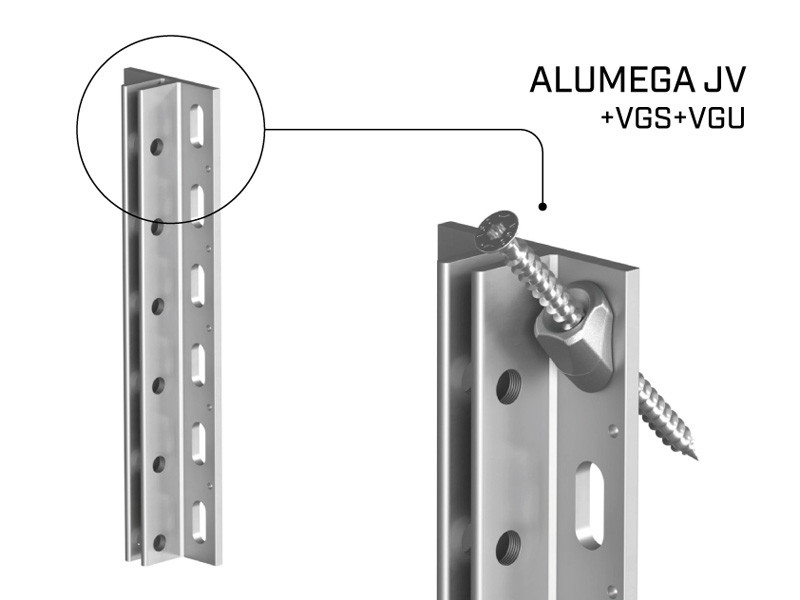

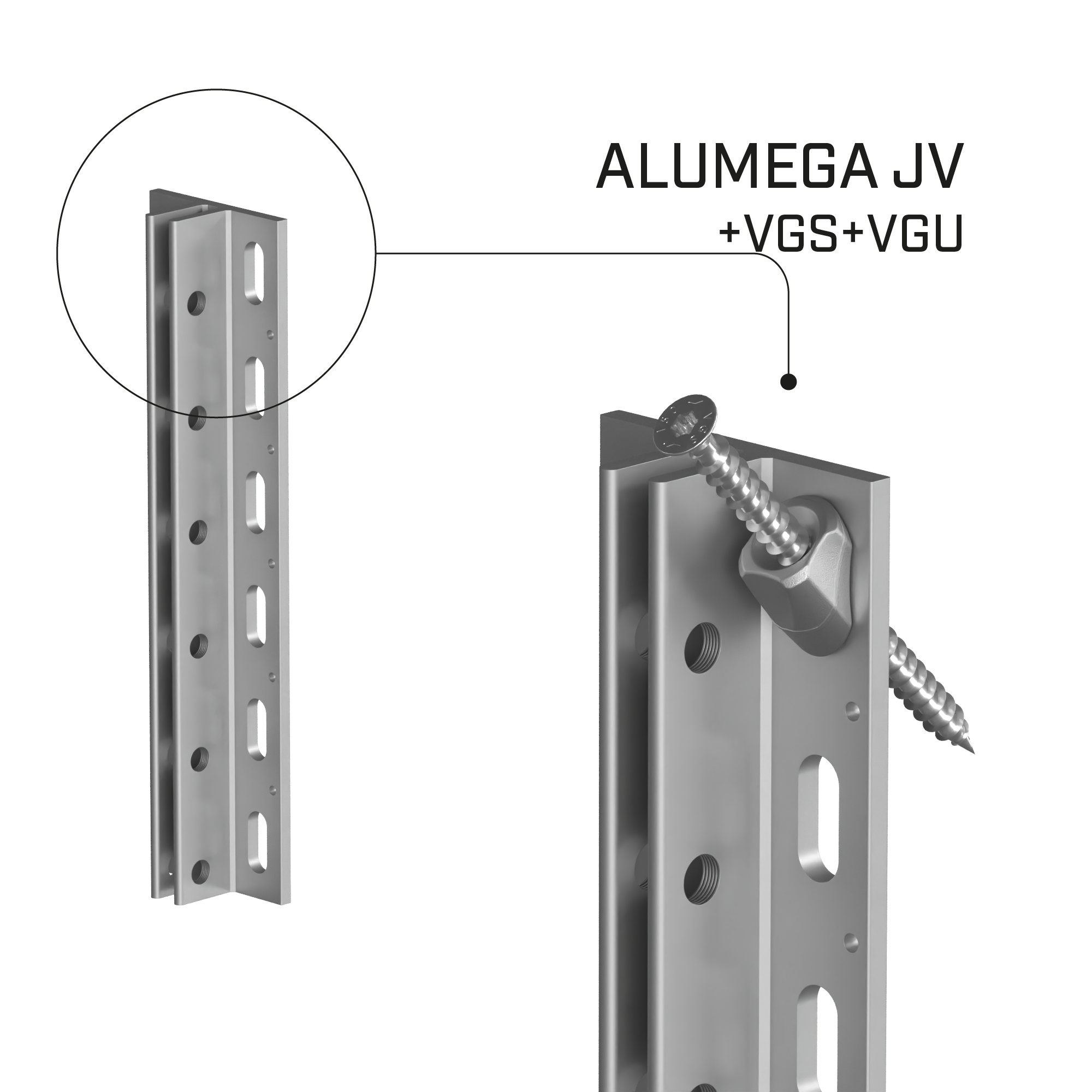

JV - JOIST CONNECTOR WITH INCLINED SCREWS

CODE	B [mm]	P [mm]	H [mm]	B [in]	P [in]	H [in]	pcs.	DOP
ALUMEGA840JV	95	49	840	-	-	-	1

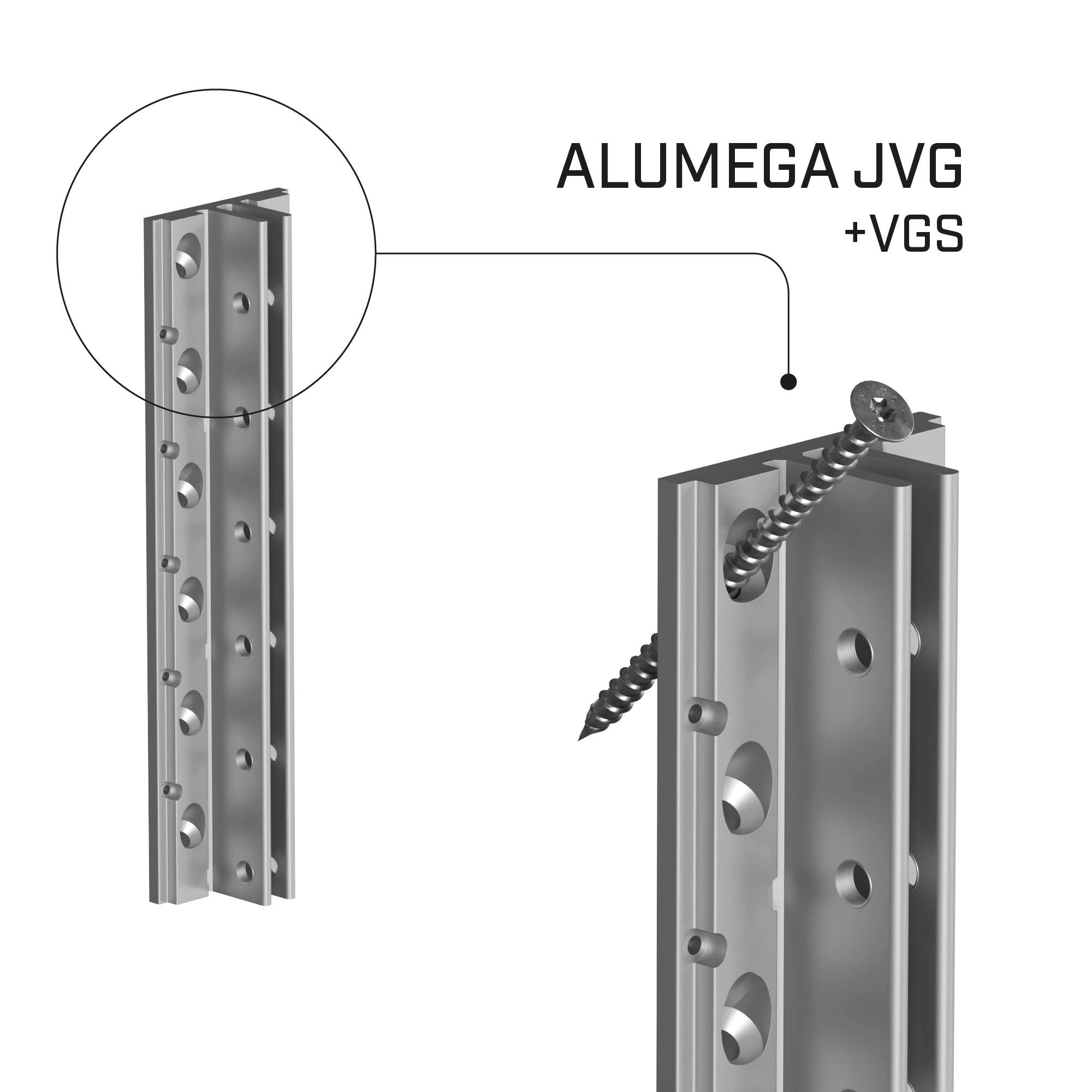

JVG - JOIST CONNECTOR WITH INCLINED SCREWS

CODE	B [mm]	P [mm]	H [mm]	B [in]	P [in]	H [in]	pcs.
ALUMEGA240JVG	95	49	240	-	-	-	1
ALUMEGA360JVG	95	49	360	-	-	-	1
ALUMEGA480JVG	95	49	480	-	-	-	1
ALUMEGA600JVG	95	49	600	-	-	-	1
ALUMEGA720JVG	95	49	720	-	-	-	1
ALUMEGA840JVG	95	49	840	-	-	-	1

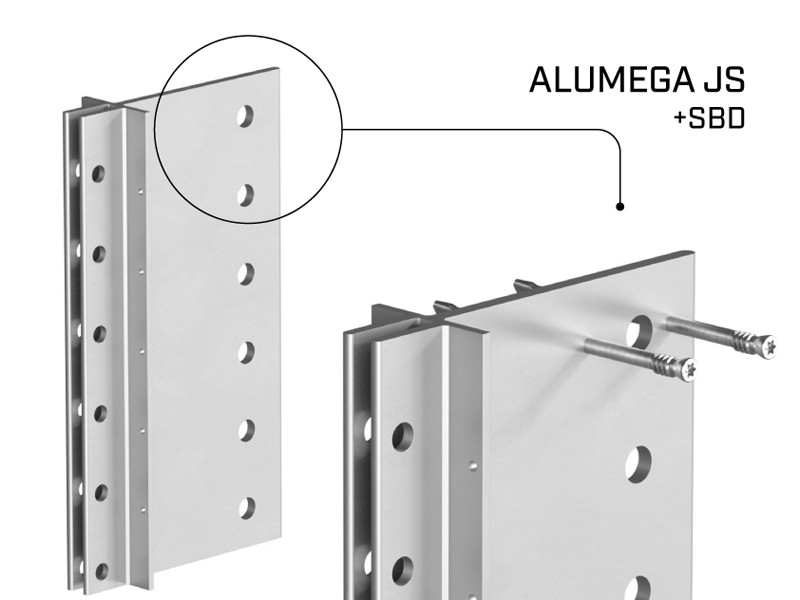

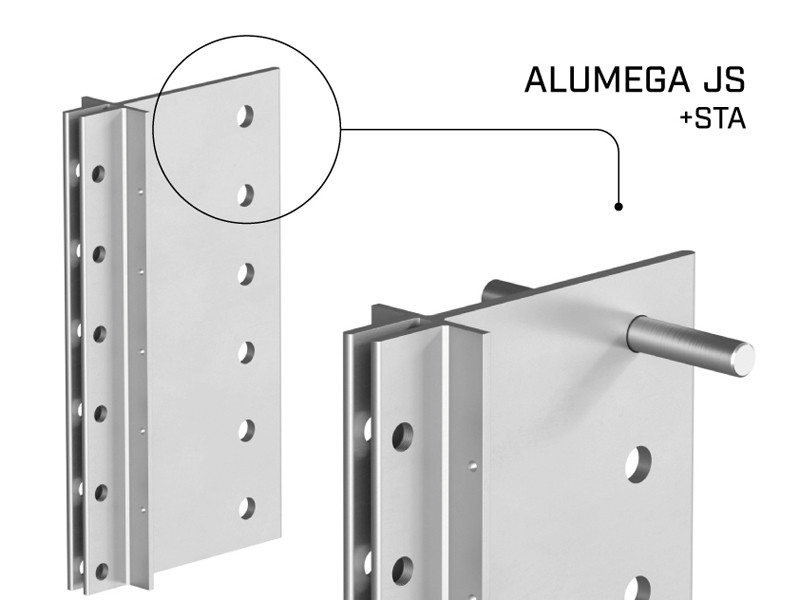

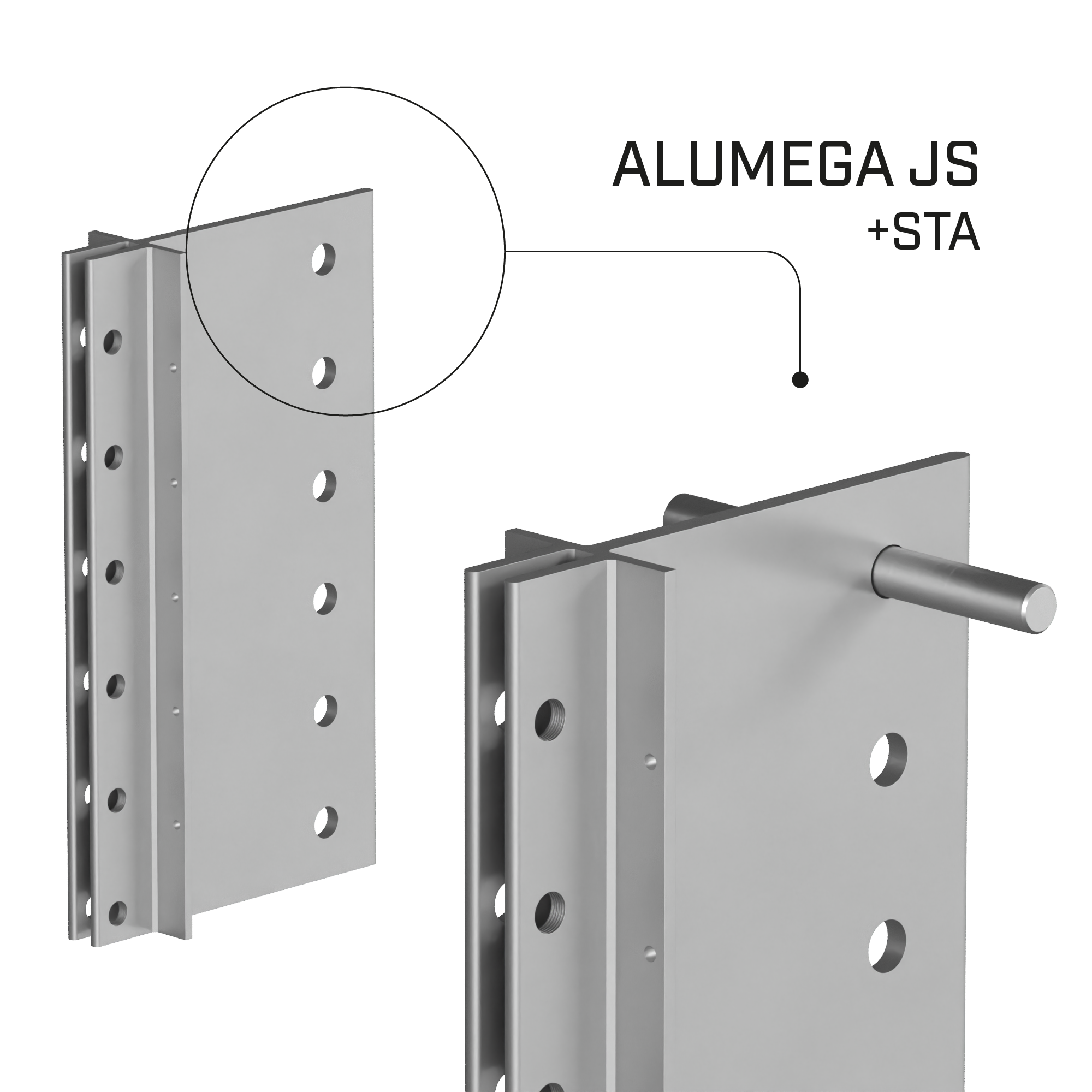

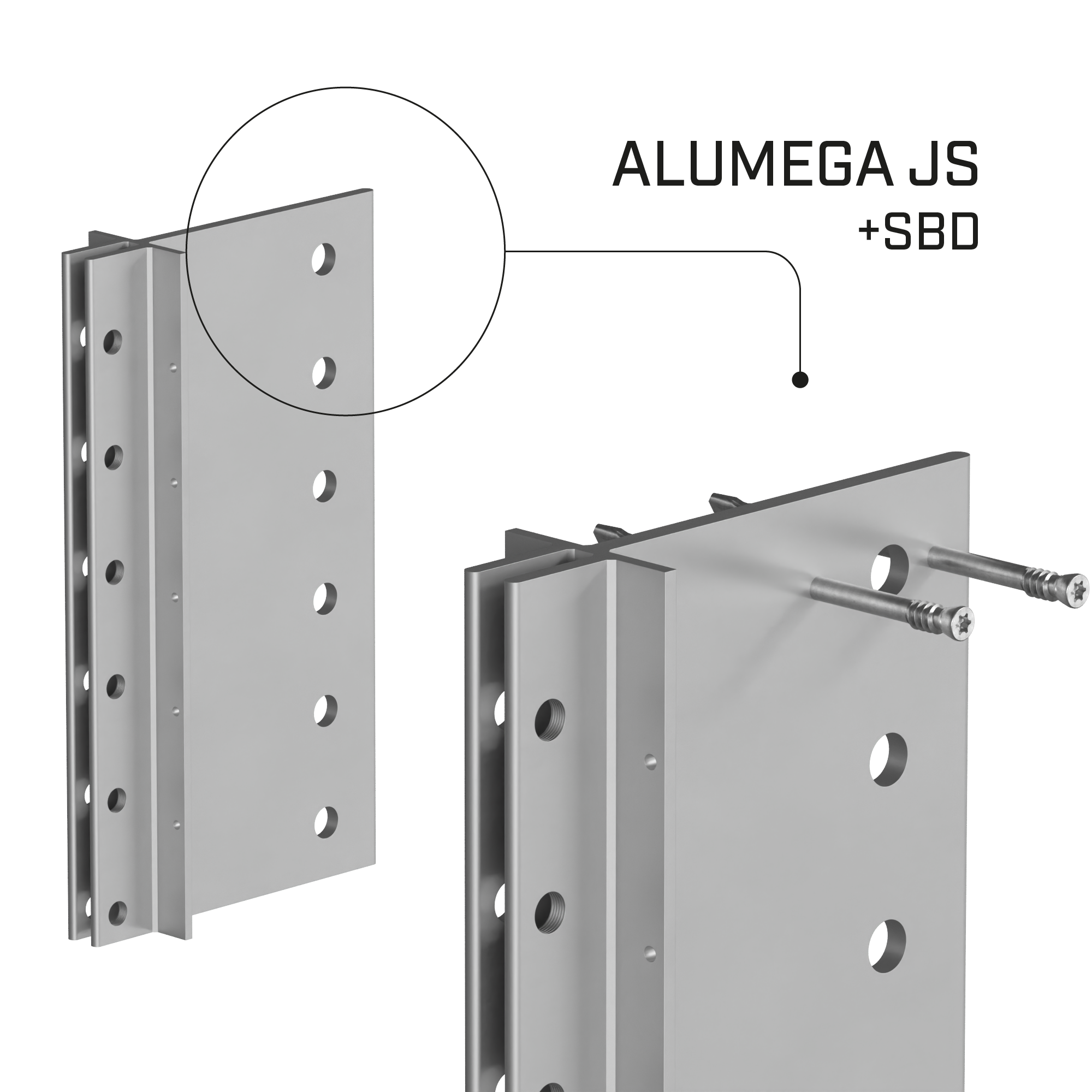

JS - JOIST CONNECTOR WITH STA/SBD DOWELS

CODE	B [mm]	P [mm]	H [mm]	B [in]	P [in]	H [in]	pcs.
ALUMEGA240JS	68	49	240	-	-	-	1
ALUMEGA360JS	68	49	360	-	-	-	1
ALUMEGA480JS	68	49	480	-	-	-	1
ALUMEGA600JS	68	49	600	-	-	-	1
ALUMEGA720JS	68	49	720	-	-	-	1
ALUMEGA840JS	68	49	840	-	-	-	1

MEGABOLT - CYLINDRICAL HEAD BOLT WITH HEXAGON SOCKET

CODE	d₁ [mm]	L [mm]	d₁ [in]	L [in]	pcs.
MEGABOLT12030	12	30	0.48	-	100
MEGABOLT12150	12	150	0.48	-	50
MEGABOLT12270	12	270	0.48	-	25

HEX WRENCH 10 mm

CODE	d₁ [mm]	L [mm]	d₁ [in]	L [in]	pcs.
HEX10L234	10	234	0.4	-	1

JIG ALUMEGA

CODE	description	pcs.
JIGALUMEGA10	82 (1J) - 97 (1H)	1
JIGALUMEGA22	94 (2J) - 109 (2H)	1

JIG VGS

CODE	description	L [mm]	L [in]	pcs.
JIGVGS9	pre-drilling template Ø5	80	-	1
JIGVGSH9	pre-drilling template Ø6	80	-	1
