GUARD V | GUARD VD
垂直固定和间隔垂直固定栏杆

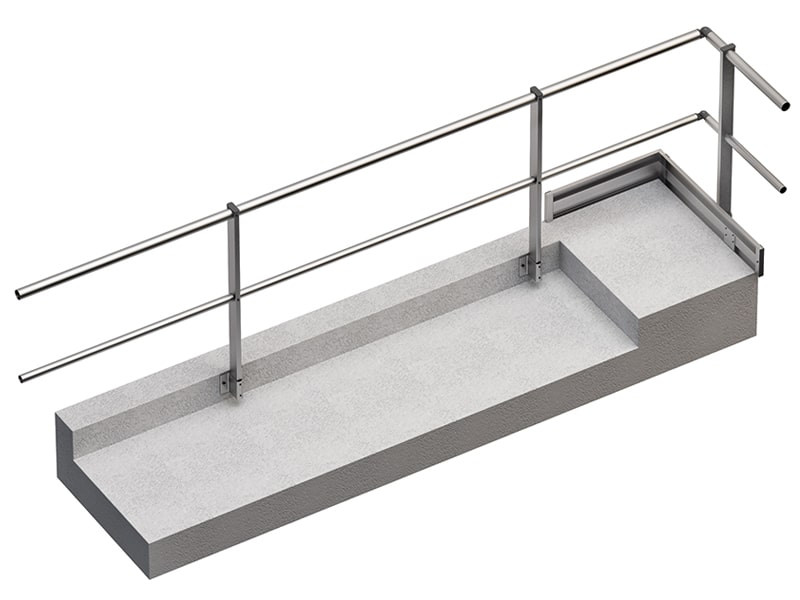

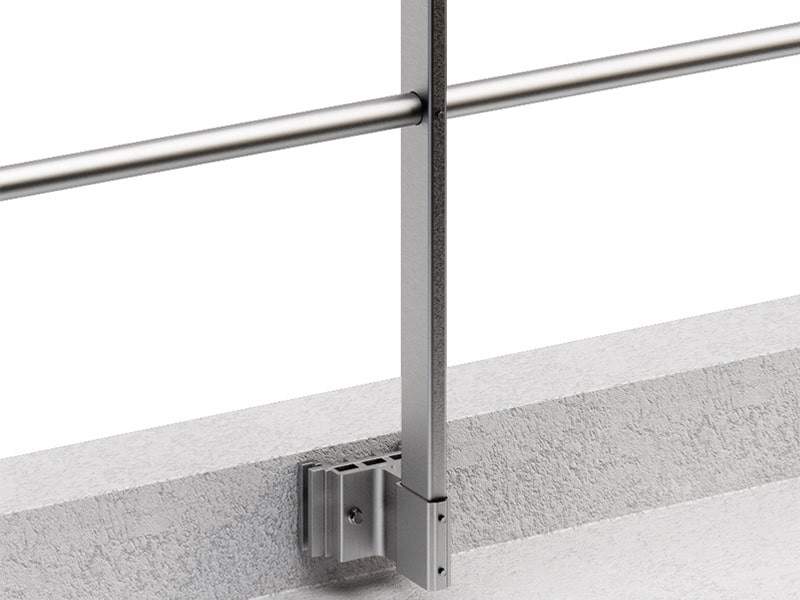

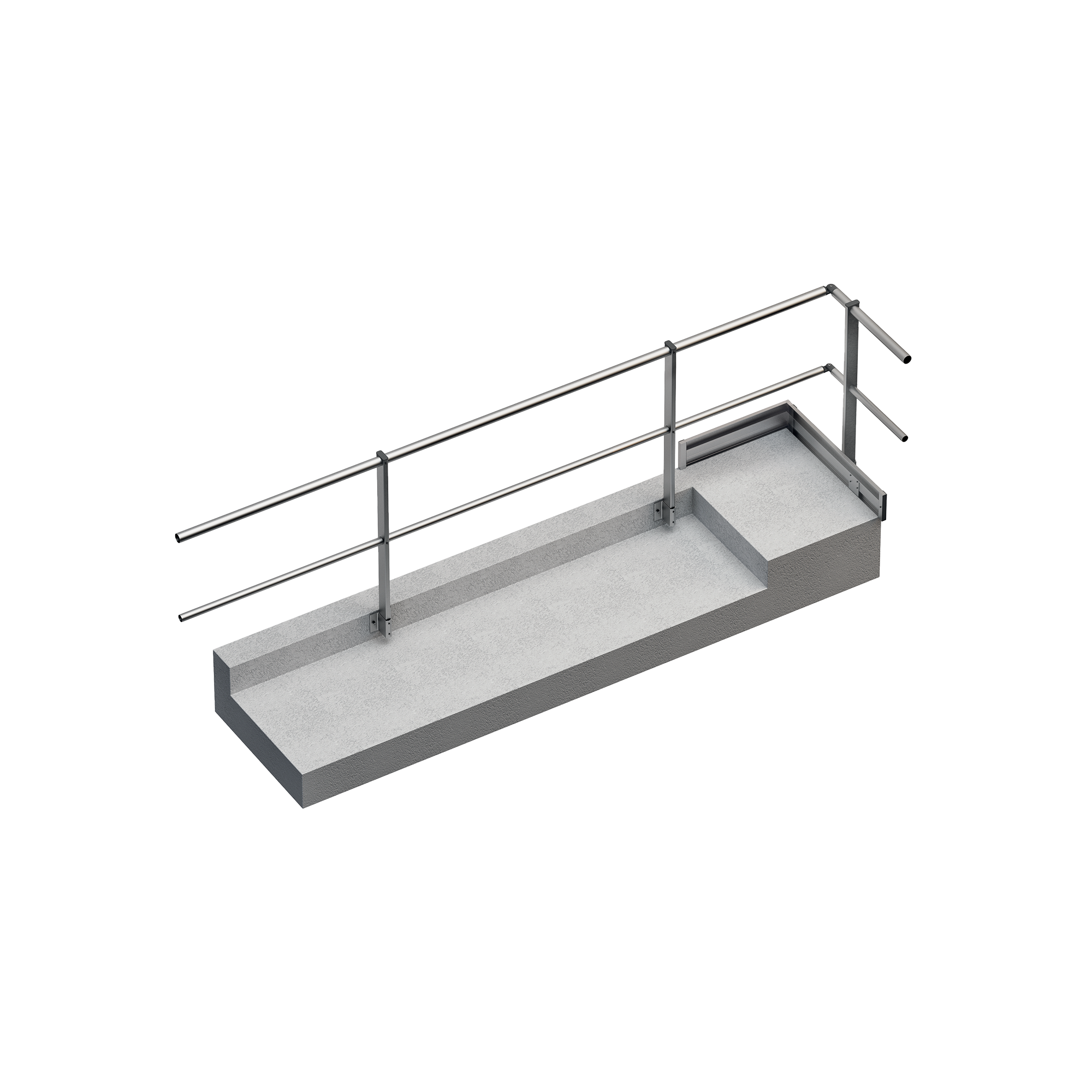

GUARD V 和 GUARD VD 栏杆经专门设计，用于在垂直结构上安装。组装快速简单；在安装过程中，立柱可以通过铝垫片与安装立柱的墙壁隔开。组件通过嵌接以及标配提供的自钻螺钉而固定。GUARD VD 版本包括一块底板，用于在墙壁上突出 6 厘米处固定。
GUARD V 和 GUARD VD，用于垂直和间隔垂直固定的栏杆
文件
-
技术数据表
-
安装手册
HANDRAILS AND INTERMEDIATE RAILS
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
UPRIGHTS - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP130 | straight upright H = 1300 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
TOE BOARD AND ACCESSORIES - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
STANDARD BASES - GUARD V/GUARD VD
| CODE | version | pcs. |
|---|---|---|
| RBGBASEV | - | 1 |
| RBGBASEVD | - | 1 |
| RBGDIST | - | 1 |
ACCESSORIES
| CODE | description | pcs. |
|---|---|---|
| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
FASTENING SCREWS - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4832 | stainless steel self-drilling screw 4,8 x 32 mm | 25 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
